GF26.00-P-0003-01MCU Automated Manual Transmission Shift Lever

GF26.00-P-0003-01MCU Automated Manual Transmission Shift Lever Positions

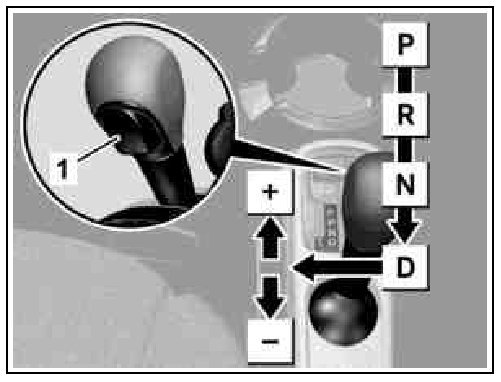

Shift diagram







1 Park pawl button
P Park position
R Reversing position
N Neutral position
D Drive position
+ Manual upshift
- Manual downshift

Possible positions:
^ The mechanical park pawl is engaged in the park position, the display "P" appears in the multifunction display (A1p13) of the instrument cluster (A1).
The transmitter key can only be removed from the ignition/ starter switch (S2/1) in this position.
^ Reverse gear is engaged in the reverse position, the display "R" appears in the multifunction display.
^ No gear is engaged in the neutral position, the vehicle can be pushed or towed away. The display "N" appears in the multifunction display.
^ Automatic mode is active in drive mode, engaging the respective gear is initiated by the automated manual transmission control unit (N15/6). The display "D"appears in the multifunction display.
^ In the manual shift positions the gears are changed manually.a gear is upshifted by operating the selector lever towards "+", a gear is downshifted by operating the selector lever towards "-".
The respective engaged gear and if necessary a gearshift recommendation appears in the multifunction display.
