Clutch Pedal Assembly: Service and Repair

AR29.10-P-0300MCU Remove/Install Pedal Assembly







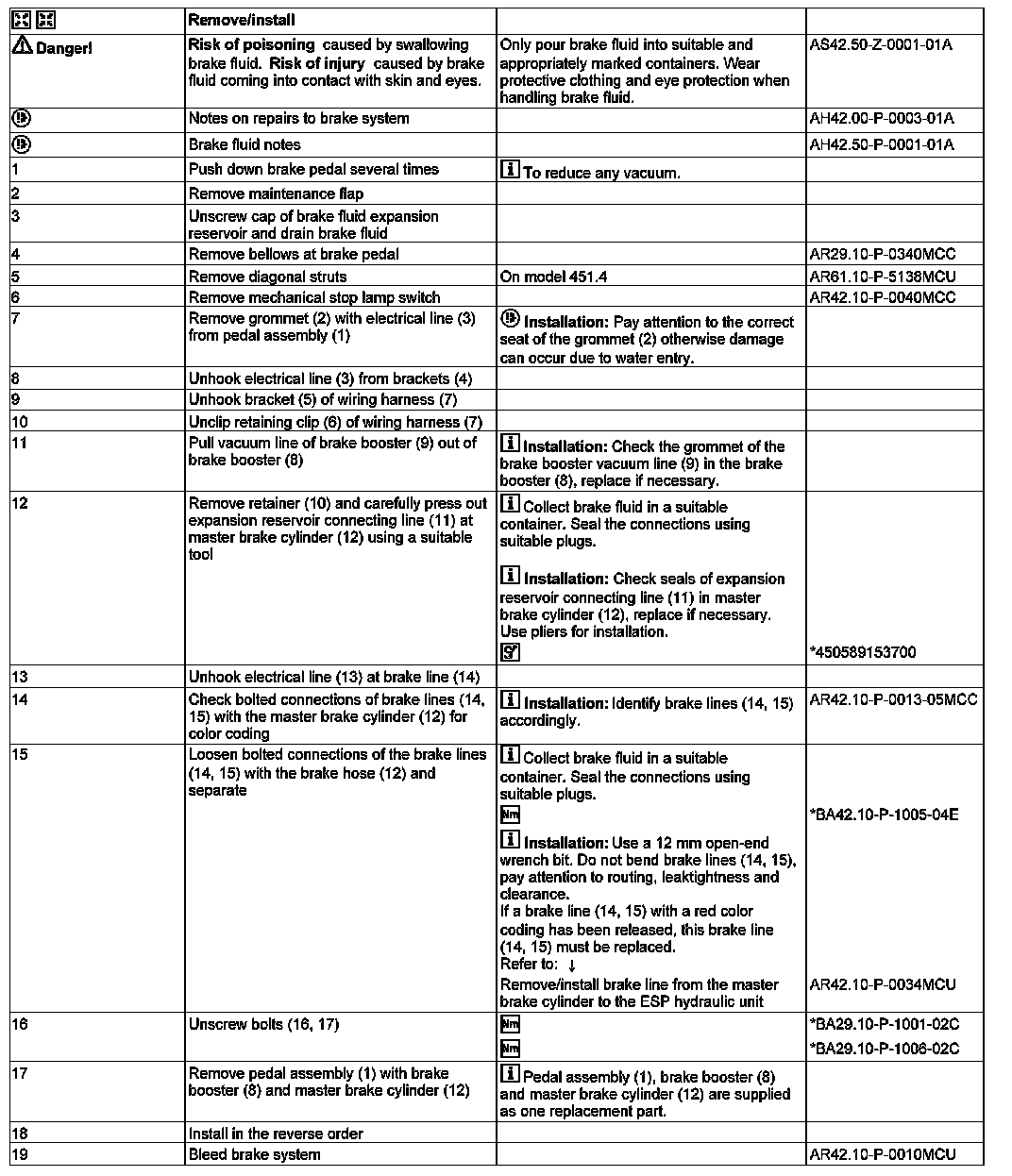

1 Pedal assembly
2 Grommet
3 Electrical line
4 Bracket
5 Bracket
6 Retaining clip
7 Wiring harness
8 Brake booster
9 Brake booster vacuum line
10 Fuse
11 Expansion reservoir connecting line
12 Master brake cylinder
13 Electrical line
14 Brake line
15 Brake line
16 Bolts
17 Bolts






















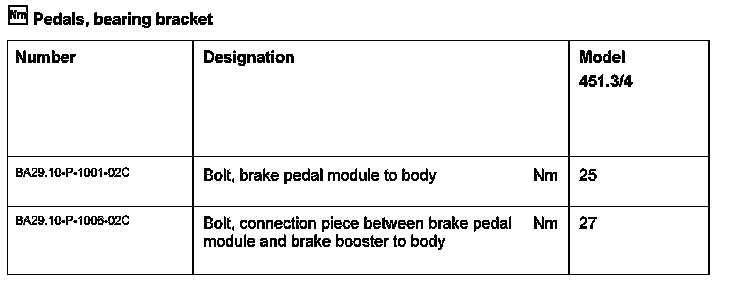

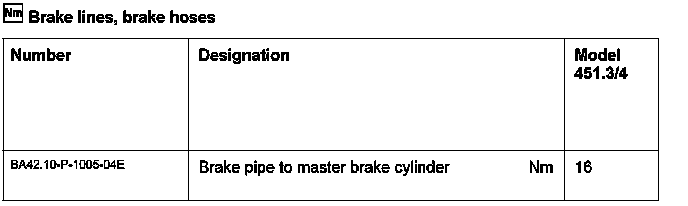

450 589 15 37 00, Pliers
