Shift Actuator: Service and Repair

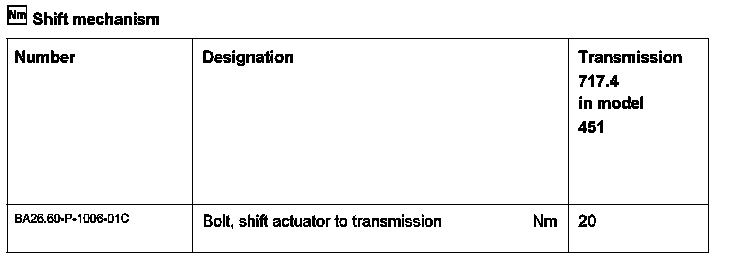

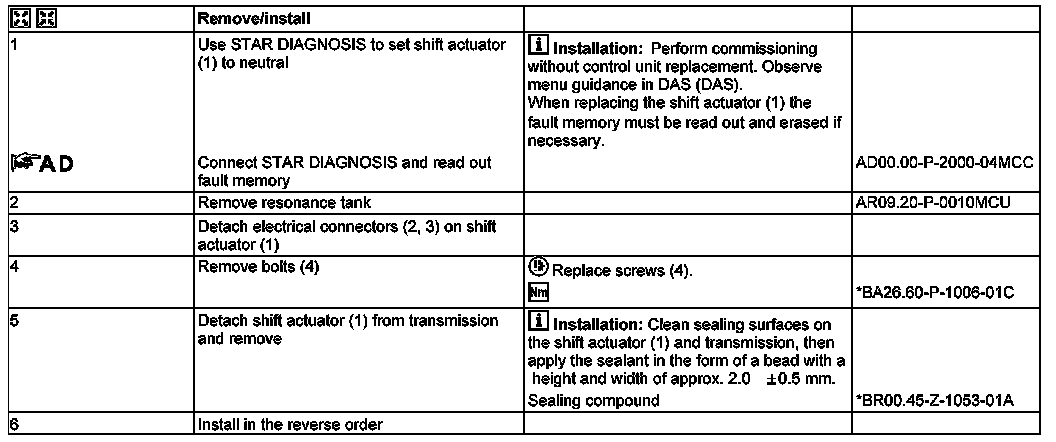

AR26.60-P-0040MCU Remove/Install Shift Actuator

TRANSMISSION 717.4

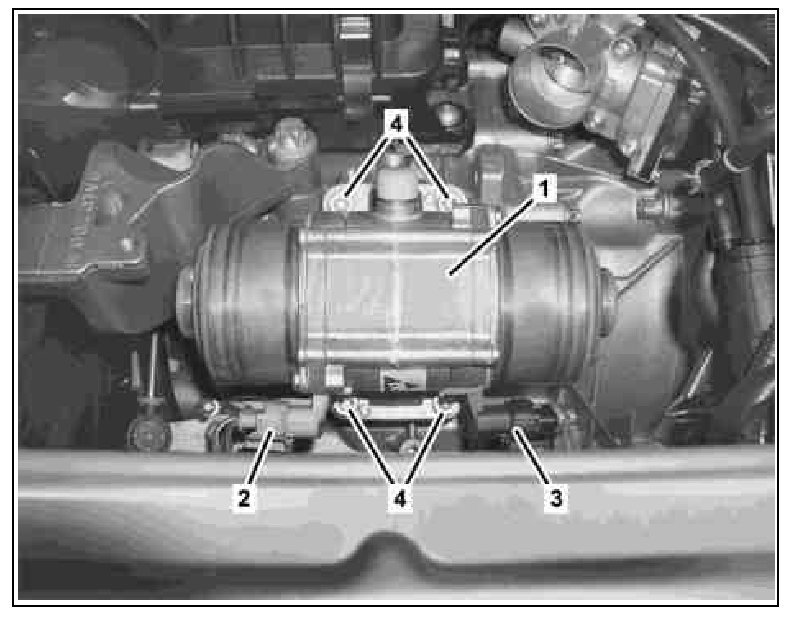

1 Shift actuator
2 Electrical connector
3 Electrical connector
4 Bolts
