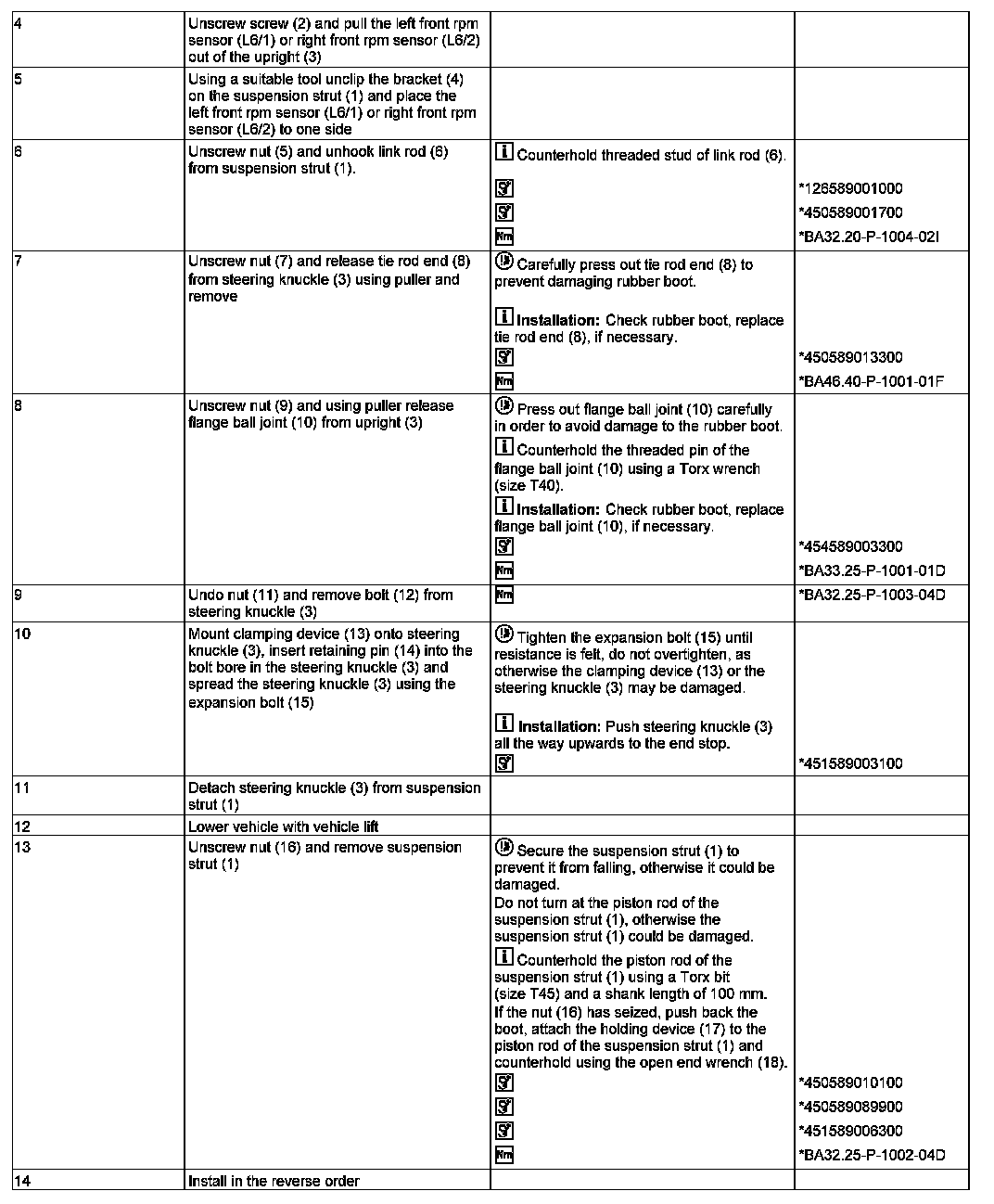

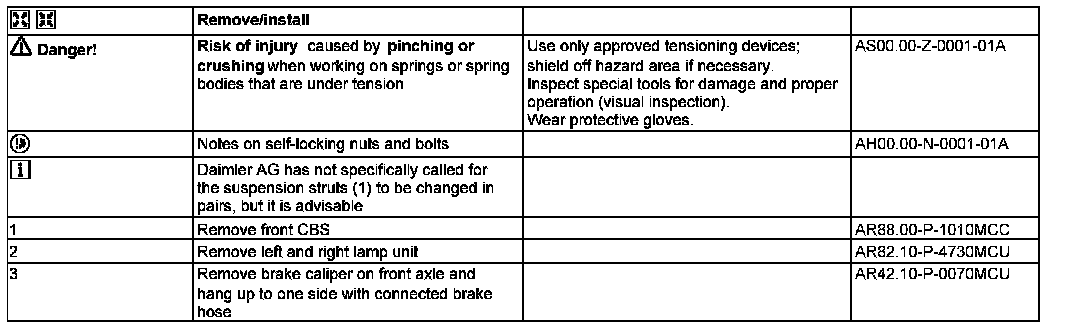

AR32.25-P-1017MCU Remove/Install The Suspension Strut

AR32.25-P-1017MCU Remove/Install The Suspension Strut

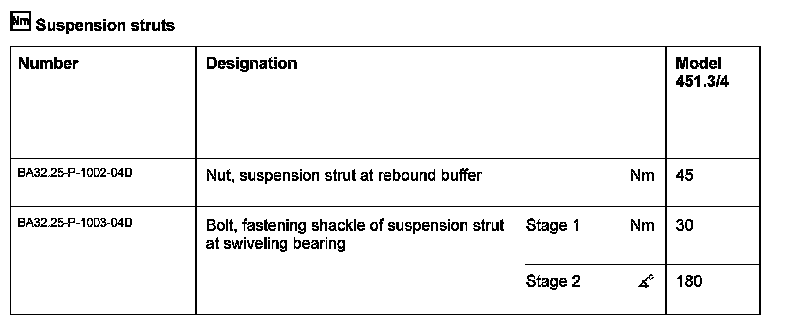

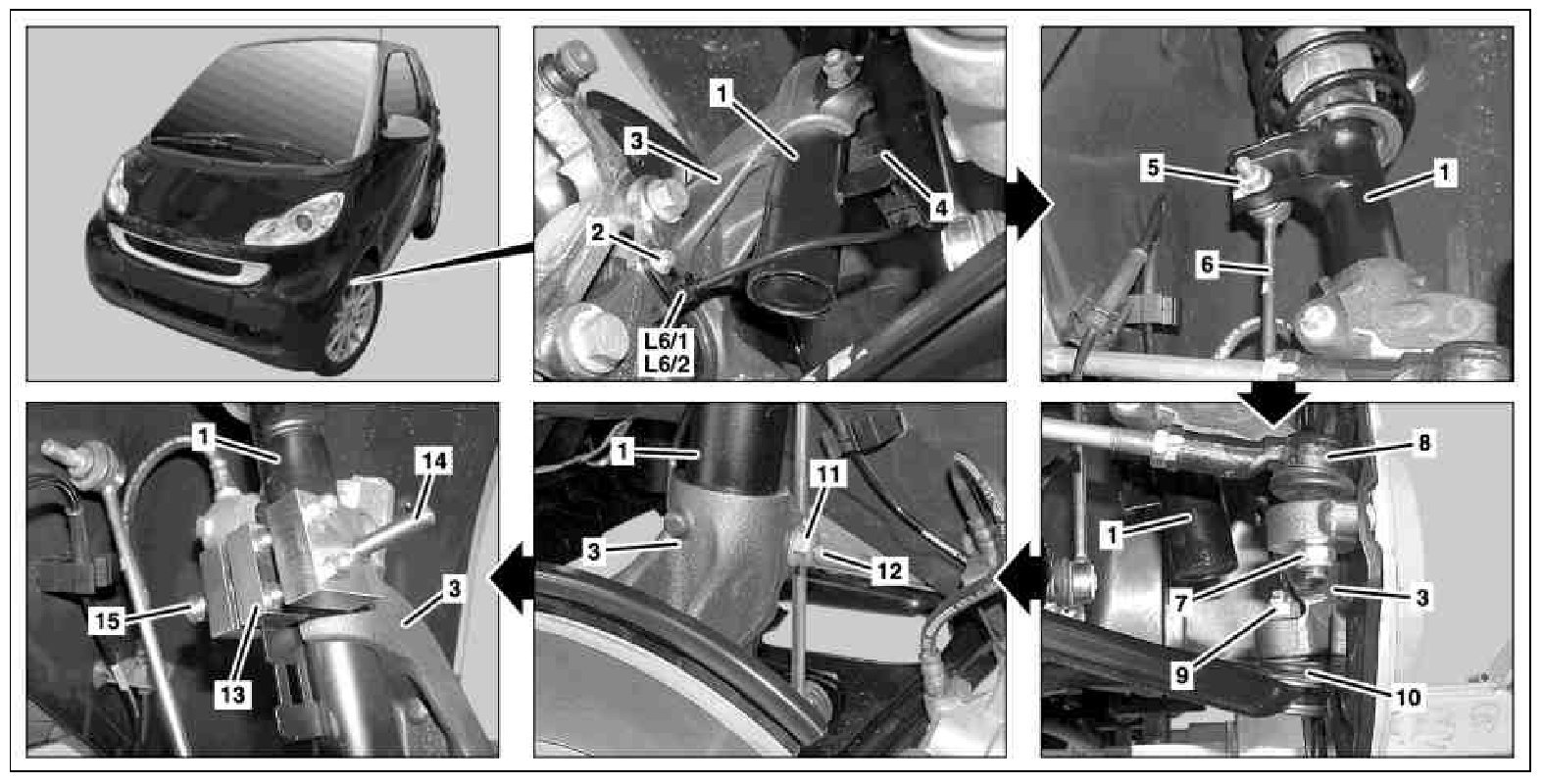

1 Suspension strut
2 Screw
3 Steering knuckle
4 Bracket
5 Nut

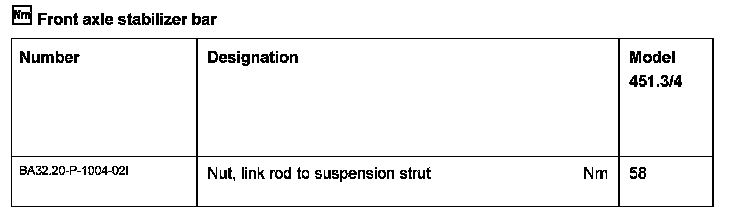

6 Link rod
7 Nut

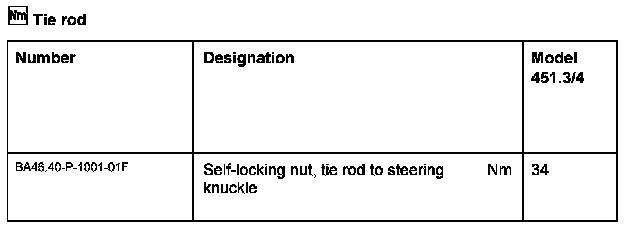

8 Tie rod end
9 Nut
10 Flange ball joint
11 Nut
12 Screw
13 Tensioning device
14 Retaining pin
15 Expansion bolt
L6/1 Left front rpm sensor
L6/2 Right front rpm sensor

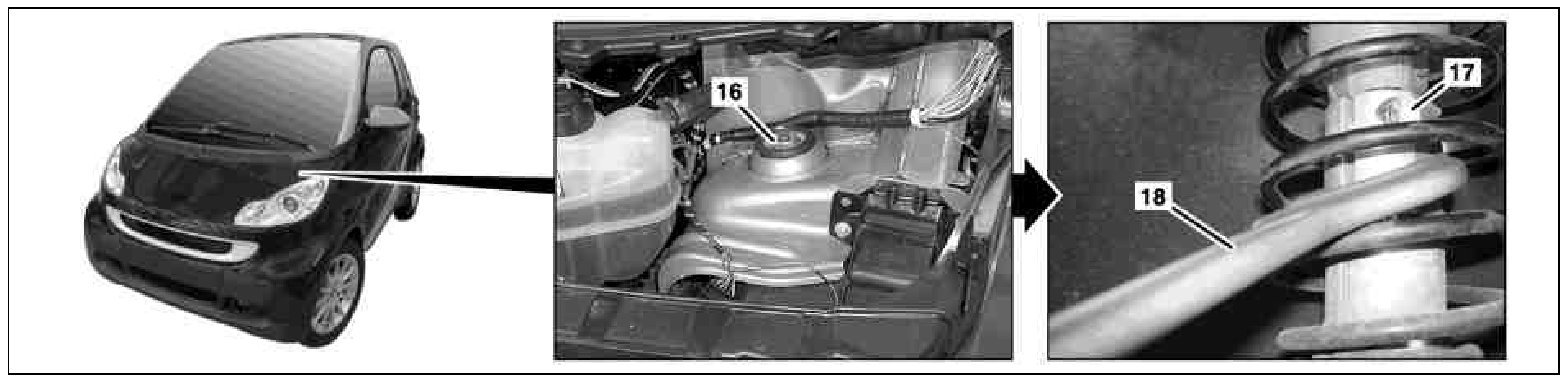

16 Nut
17 Retaining device
18 Open end wrench










































126 589 00 10 00, Screwdriver bit







450 589 00 17 00, Tool assortment for stabilizer assembly







450 589 01 01 00, Open end wrench







450 589 01 33 00, Puller







450 589 08 99 00, Assembly tool set







451 589 00 31 00, Tensioning device







451 589 00 63 00, Holding device







454 589 00 33 00, Puller
