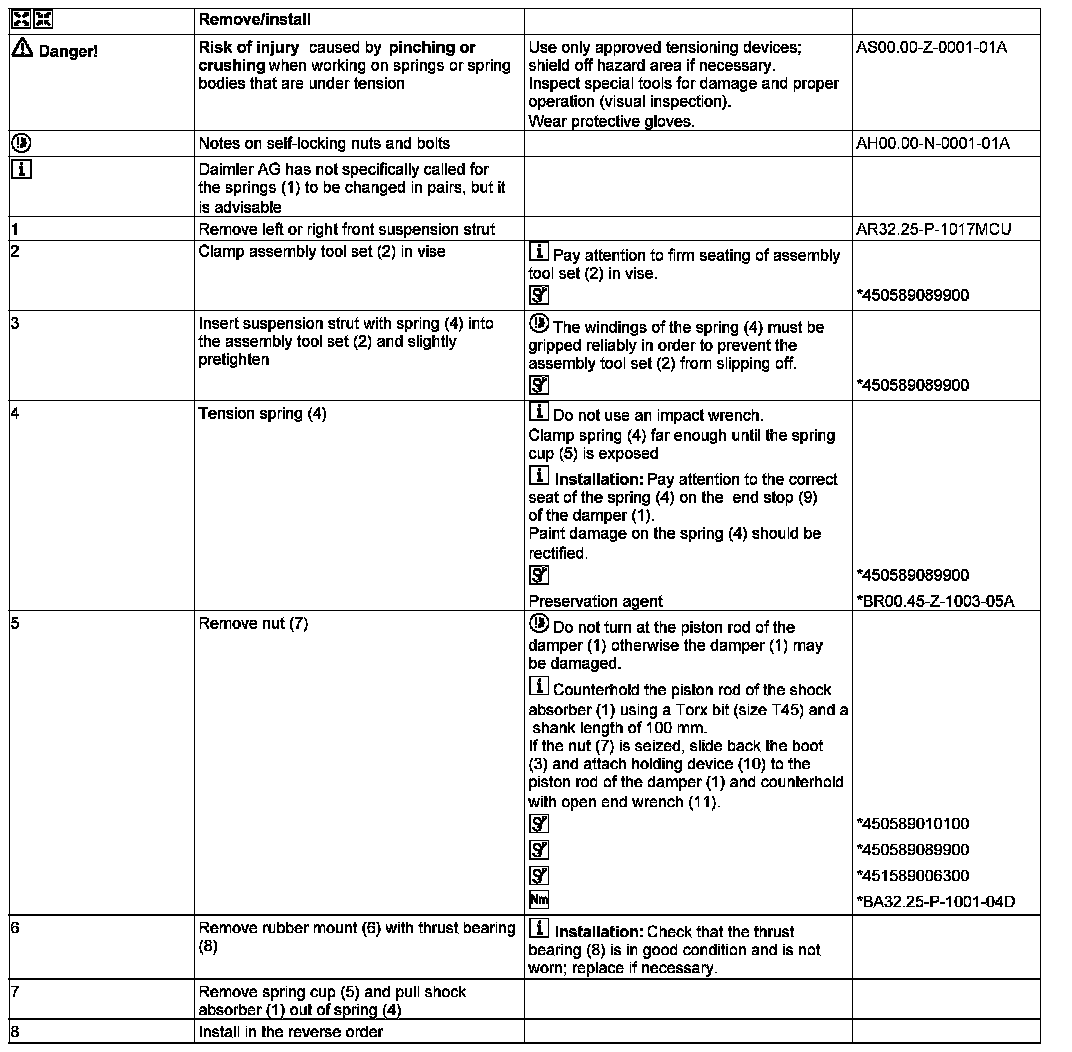

AR32.25-P-0105MCU Remove/Install Front Shock Absorber

AR32.25-P-0105MCU Remove/Install Front Shock Absorber

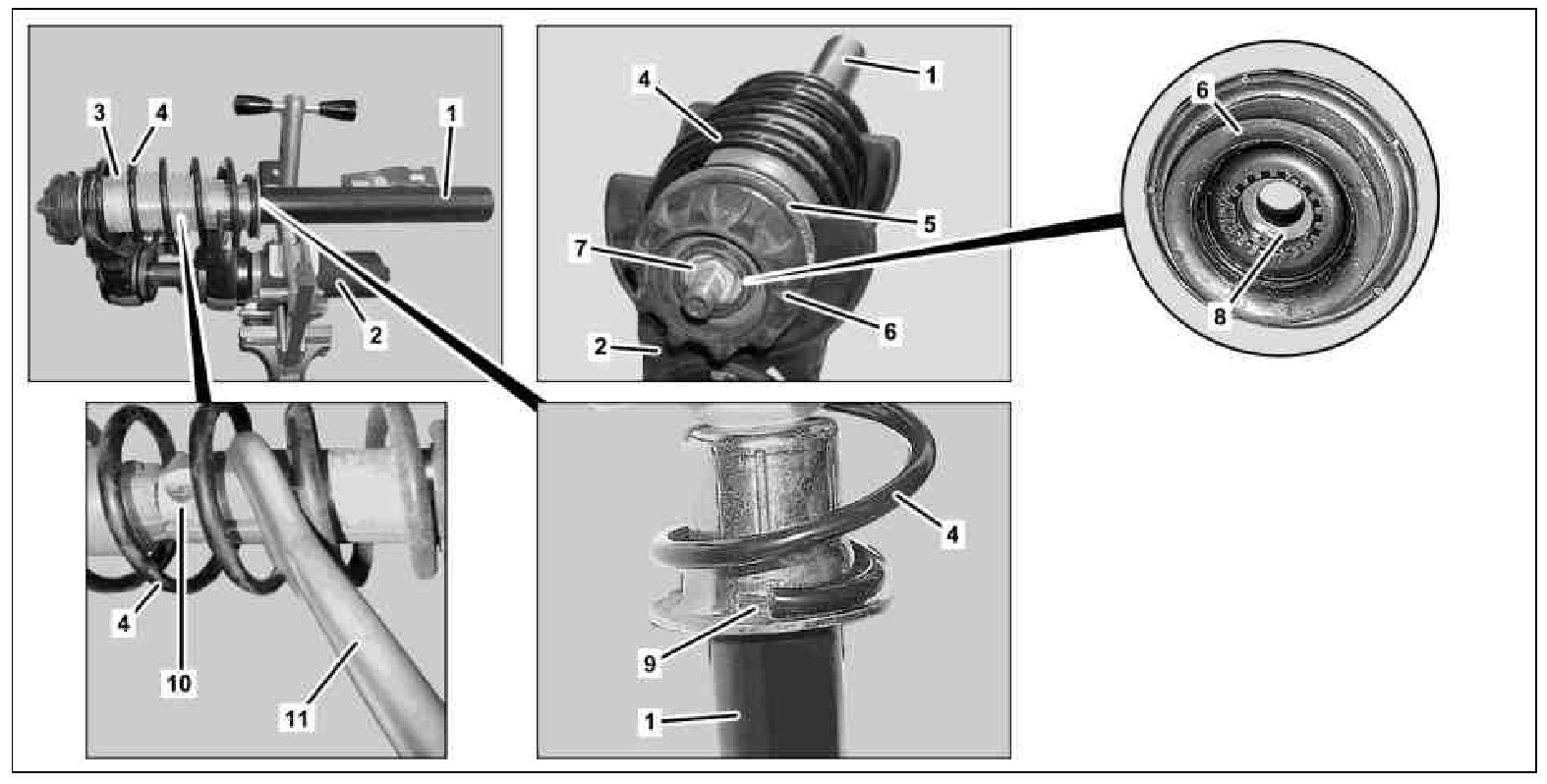

1 Shock absorber
2 Assembly tool set
3 Boot
4 Spring
5 Spring cup
6 Rubber bushing
7 Nut
8 Thrust bearing
9 Stop
10 Retaining device
11 Open end wrench






















450 589 01 01 00, Open end wrench







450 589 08 99 00, Assembly tool set







451 589 00 63 00, Holding device
