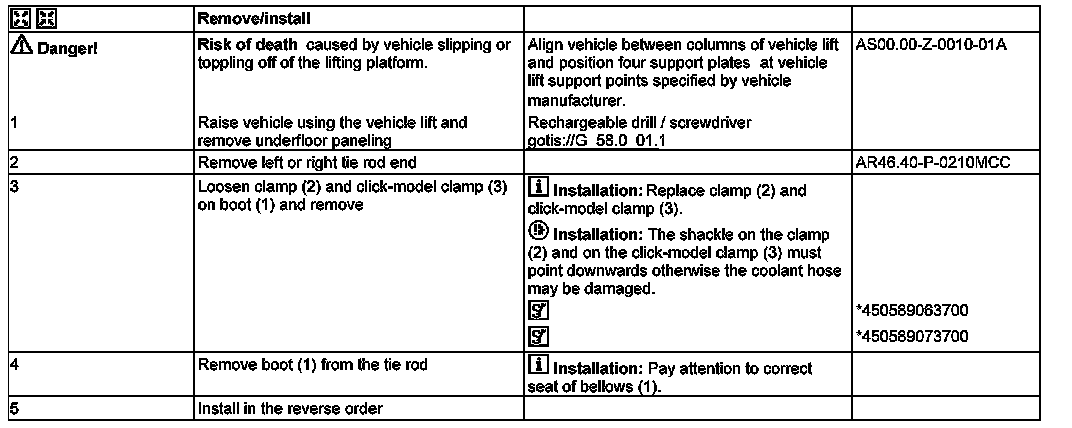

AR46.40-P-9998MCU Remove/Install Bellows



AR46.40-P-9998MCU Remove/Install Bellows

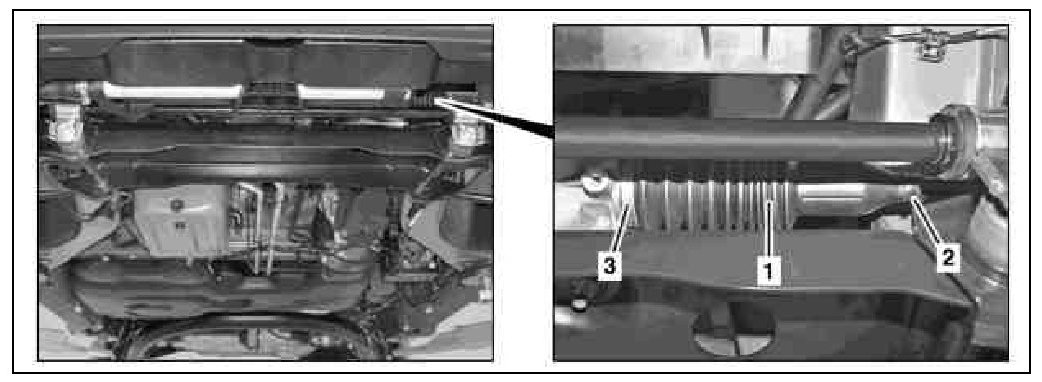

Shown on left boot







1 Bellows
2 Hose clamp
3 Snap clamp

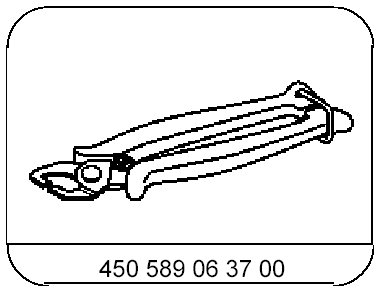

450 589 06 37 00, Pliers







450 589 07 37 00, Pliers
