AR46.20-P-0600-02SM Remove/Install Rubber Mount Of Rack-and-pinion Mounting

AR46.20-P-0600-02SM Remove/Install Rubber Mount Of Rack-and-pinion Mounting







Removing

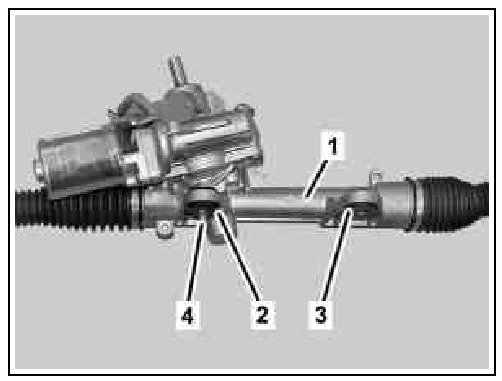

1 Using a suitable tool, press rubber mounts (2, 3) downwards out of the supports on the on the rack-and-pinion steering (1).
On vehicles with code (V26) EPS power steering (FFO) the bolt (4) on the power steering motor can only be removed after the rubber mount (1) has been pressed out.

Install

2 Rub rubber mounts (2, 3) from outside with antifriction paste.
3 Using a rubber hammer, hammer rubber mounts (2, 3) into the supports on the rack-and-pinion steering (1) and press into the final installation position using a suitable tool.
On vehicles with code (V26) EPS power steering (FFO) the rubber mount (2) on the power steering motor must be inserted together with the bolt (4) of the rack-and-pinion steering (1).
