Steering Column: Service and Repair

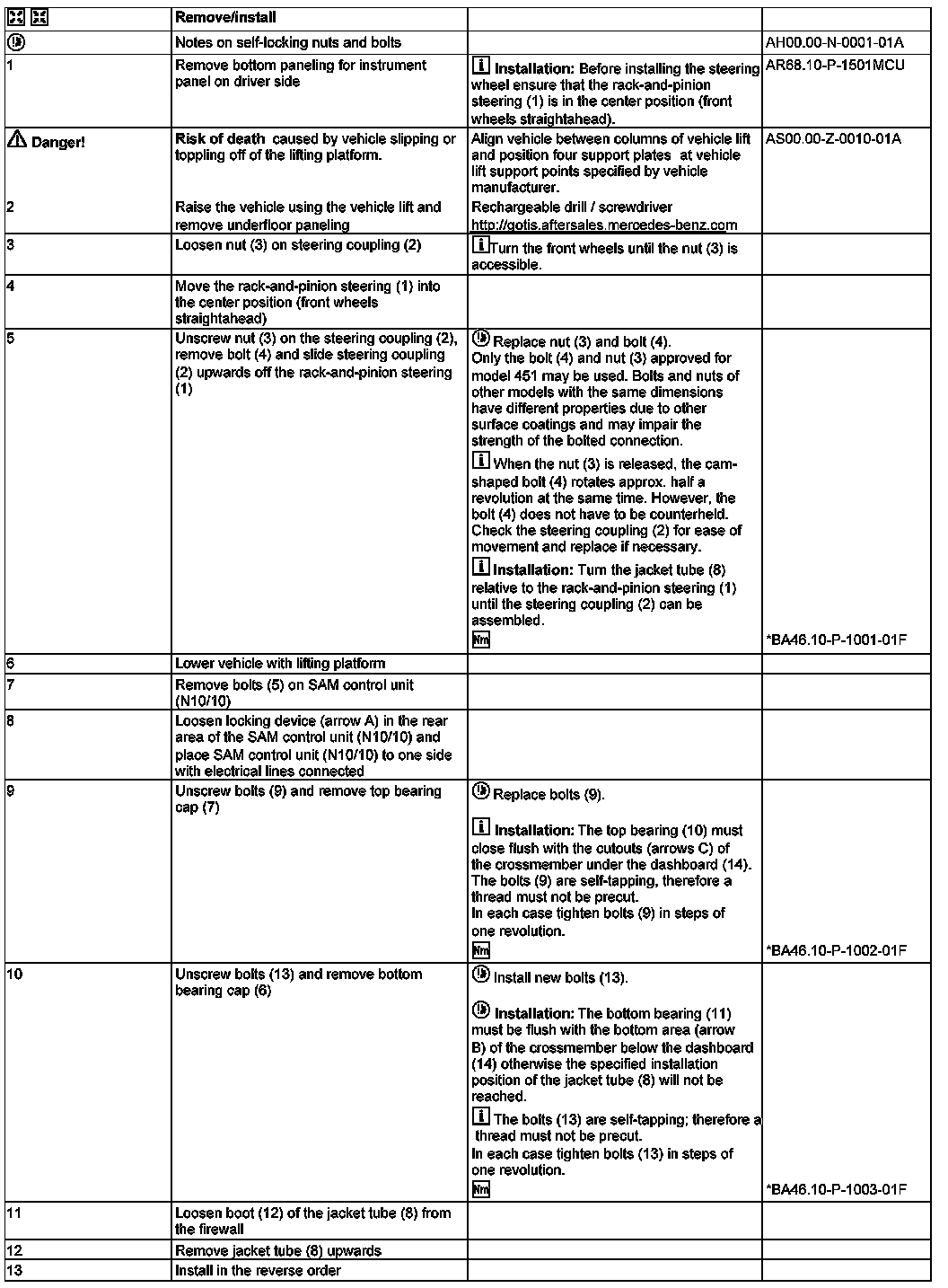

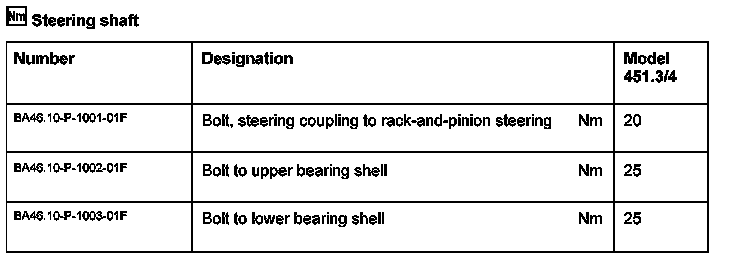

AR46.10-P-0400MCU Remove/Install Jacket Tube

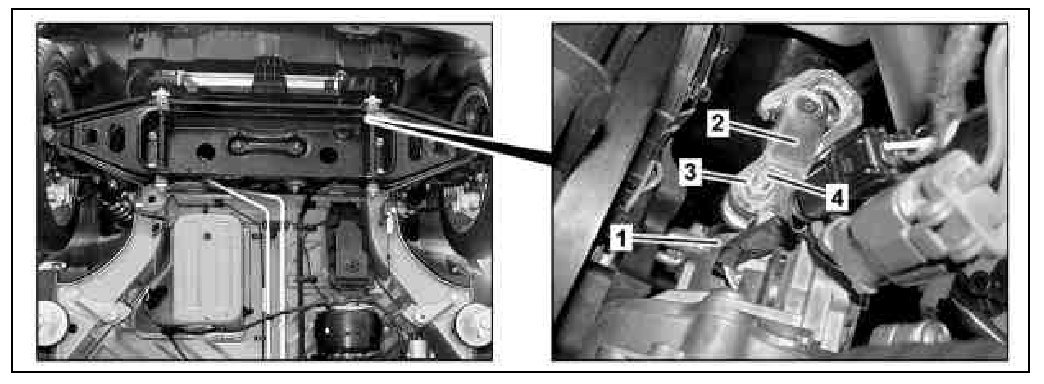

1 Rack-and-pinion steering
2 Steering coupling
3 Nut
4 Screw







5 Bolts

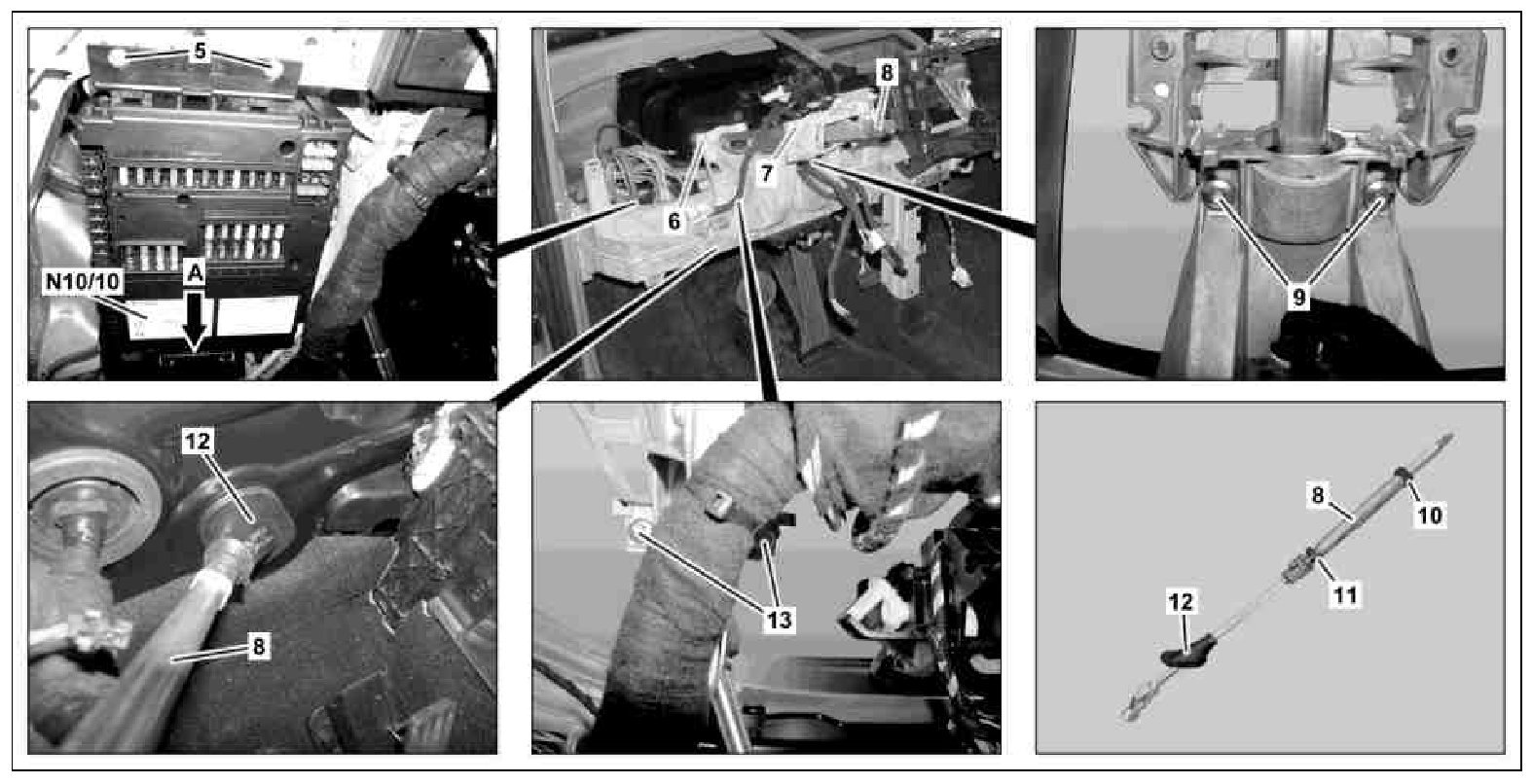

6 Bottom bearing cap
7 Top bearing cap
8 Jacket tube
9 Bolts
10 Top bearing
11 Bottom bearing
12 Boot
13 Bolts
N10/10 SAM control unit







8 Jacket tube
10 Top bearing
11 Bottom bearing
14 Cross member below instrument panel
