AR54.18-P-0002MCC Disconnecting and Connecting Electrical Cables From Battery



AR54.18-P-0002MCC Disconnecting And Connecting Electrical Cables From Battery

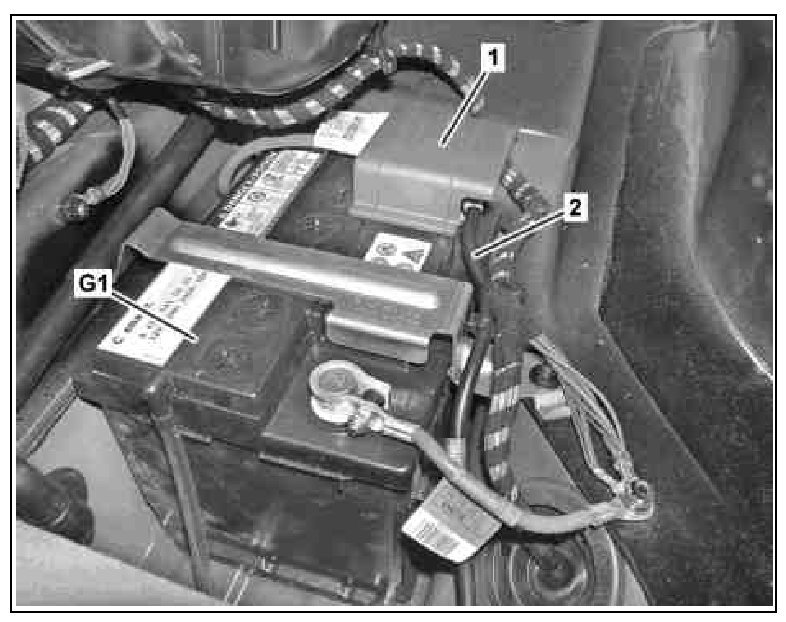

1 Cover
2 Positive line
G1 Battery
