Positive: Service and Repair

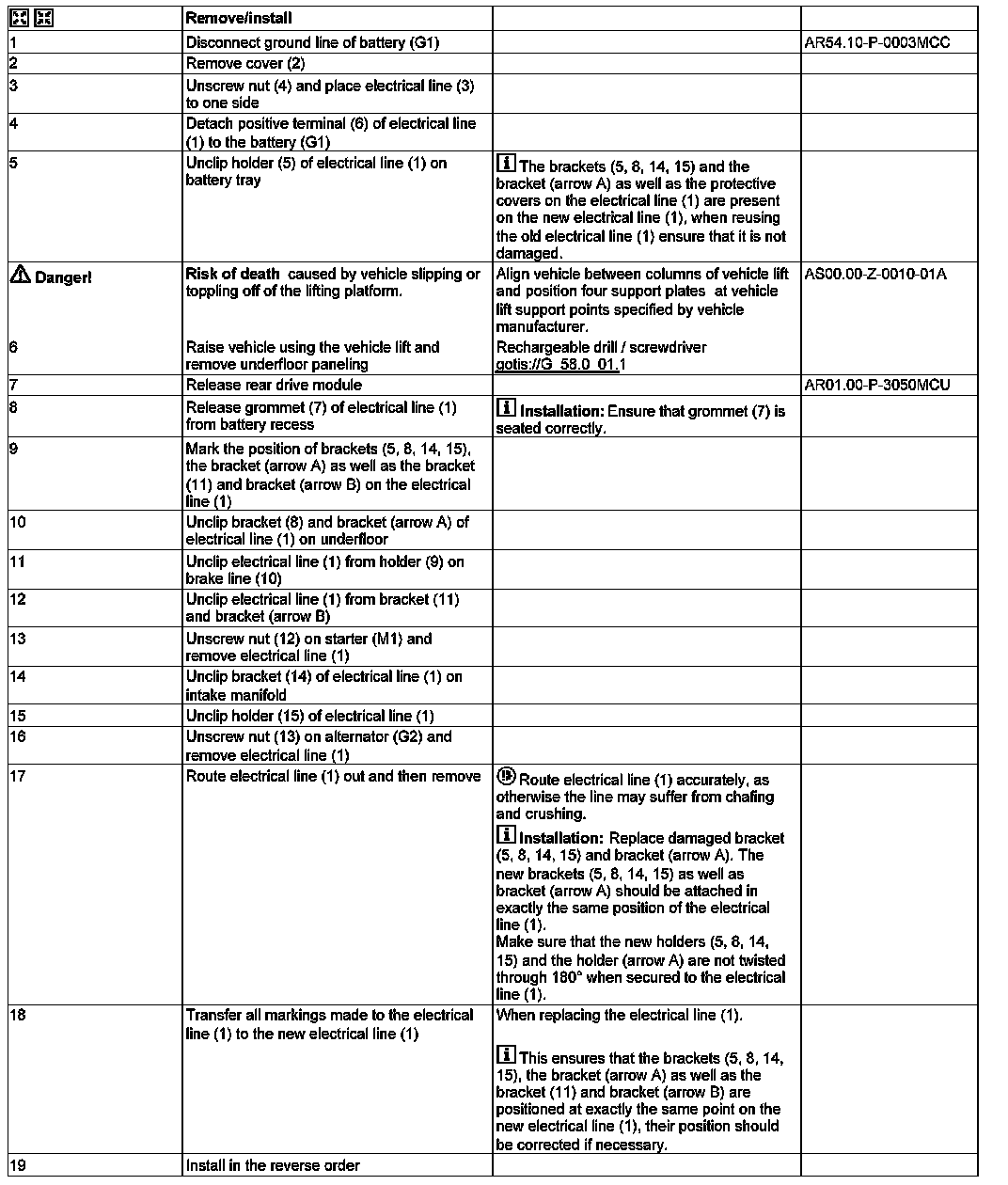

AR54.18-P-0006MCU Remove/Install Electrical Line From Battery To Starter/alternator

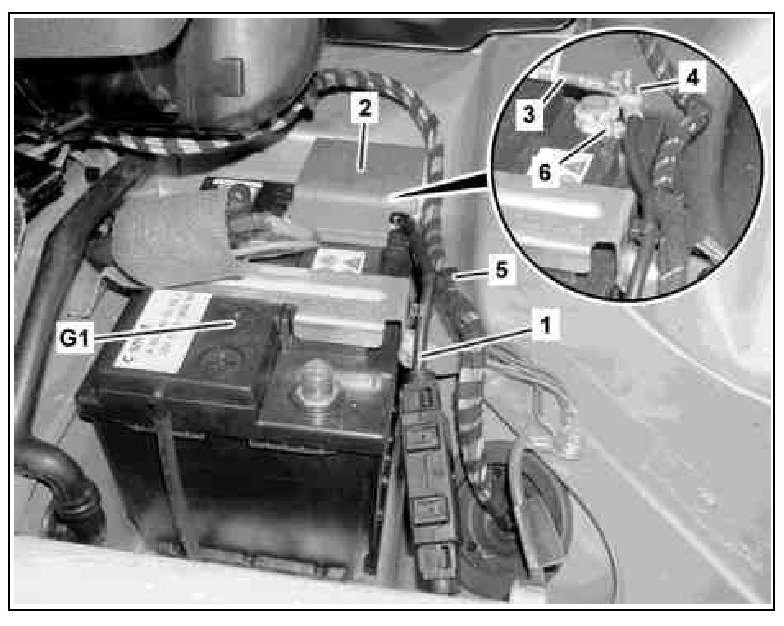

1 Electrical line
2 Cover
3 Electrical line
4 Nut
5 Bracket
6 Positive terminal
G1 Battery

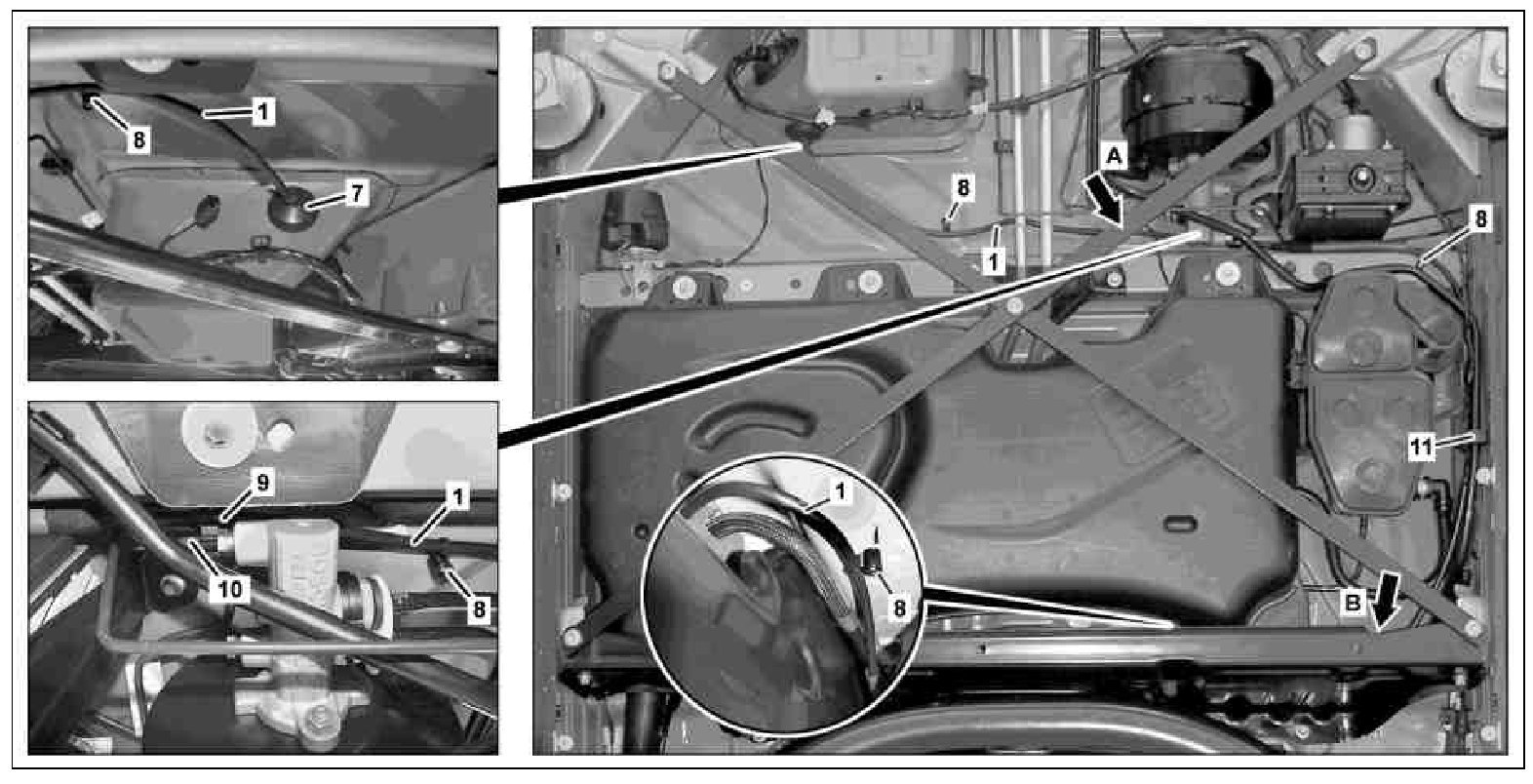

Shown on model 451.4 with code (I01) Air conditioning Plus







1 Electrical line
7 Grommet
8 Bracket
9 Bracket
10 Brake line
11 Bracket

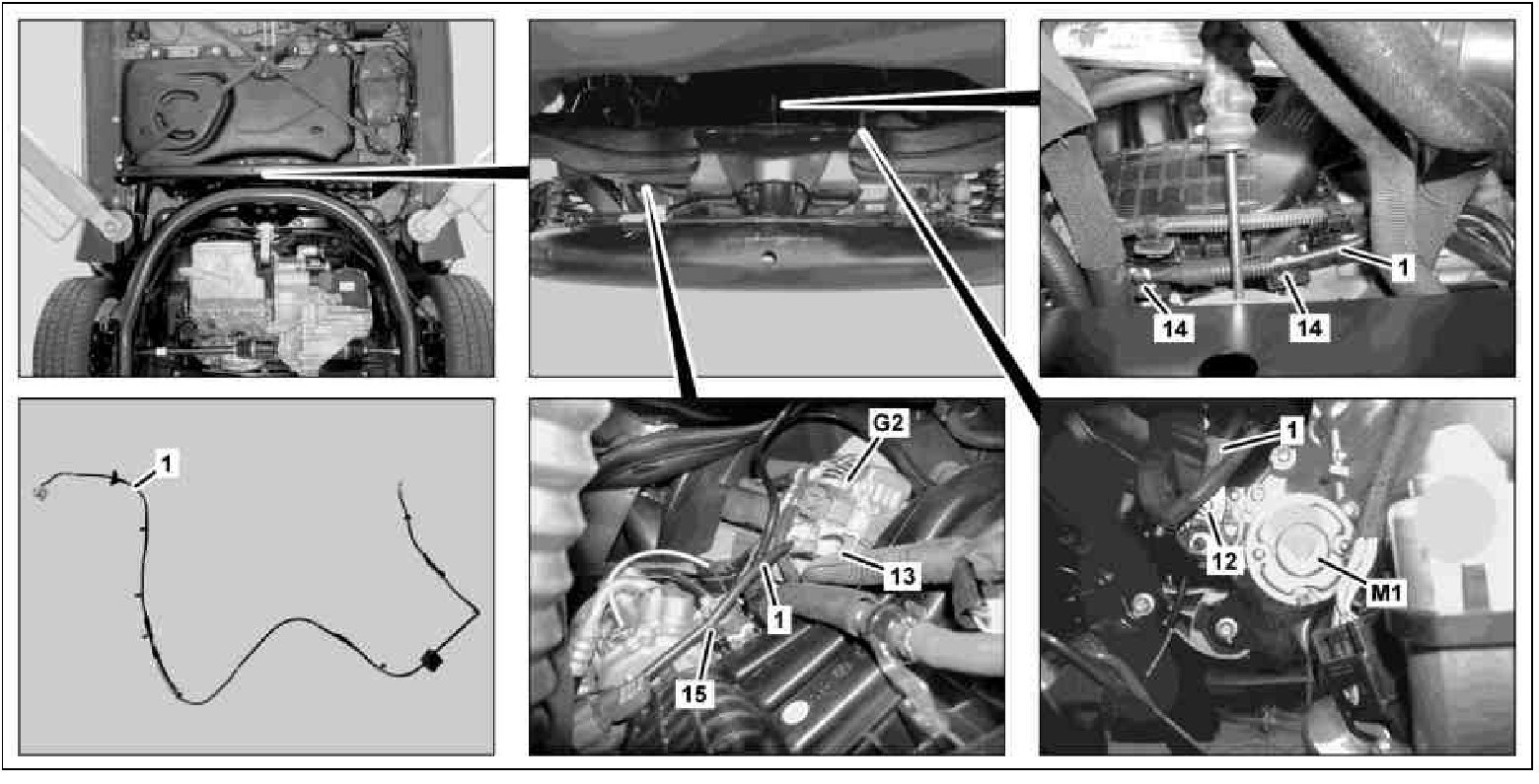

Shown on model 451.4 with code (I01) Air conditioning Plus







1 Electrical line
12 Nut
13 Nut
14 Bracket
15 Bracket
G2 Generator
M1 Starter
