AR91.40-P-1515-02MCU Install seat belt buckle

AR91.40-P-1515-02MCU Install Seat Belt Buckle

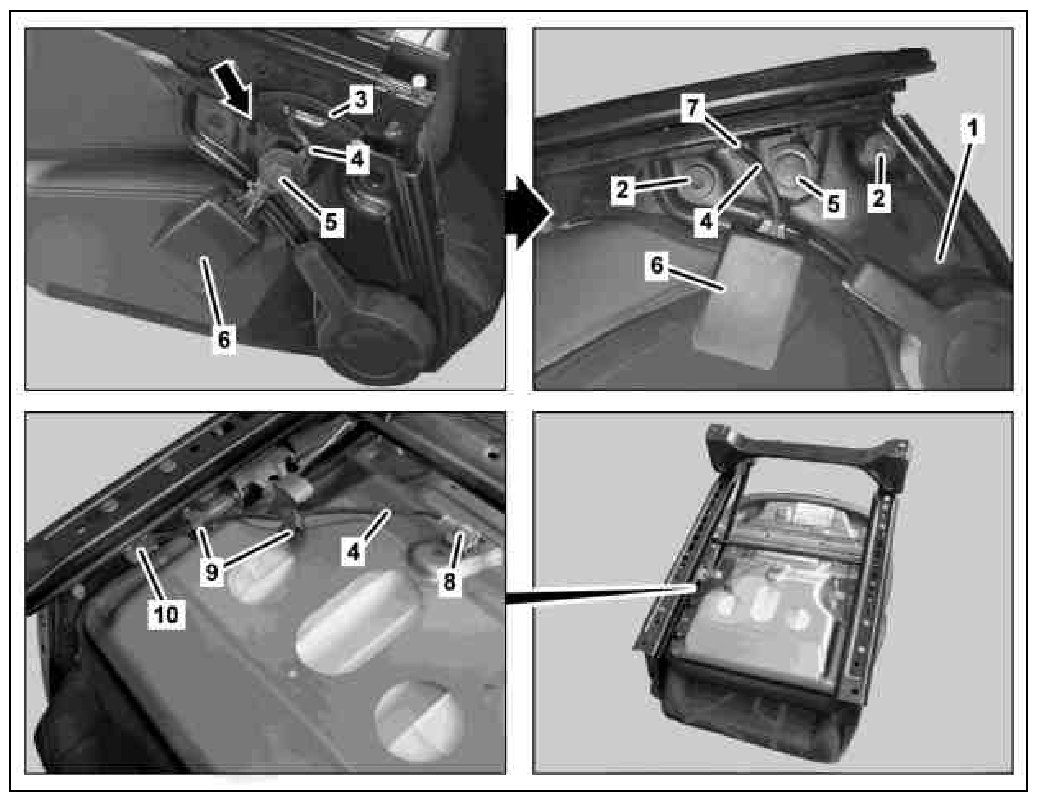

1 Mount seat belt buckle (6) using bolt (5) onto backrest frame (1) and screw in bolt (5) up to the contact surface.
2 Raise seat console slightly off the backrest frame (1) and route the wiring harness for the seat belt buckle (4) to the holders (9).
The edge guard (3) must be positioned such that the wiring harness for the seat belt buckle (4) cannot suffer any chafe damage. The wiring harness for the seat belt buckle (4) must be routed in front of the holder (10).
3 Insert grommet (7) of wiring harness for the seat belt buckle (4) into the opening (arrow).
4 Align seat console to the backrest frame (1) and screw in bolts (2) up to the contact surface.
5 Insert seat belt buckle wiring harness (4) into brackets (9).
6 Clip plug (8) of seat belt buckle wiring harness (4) to seat console.
7 Place seat onto guide rails and move backrest frame (1) to rearmost position, then lock in place.

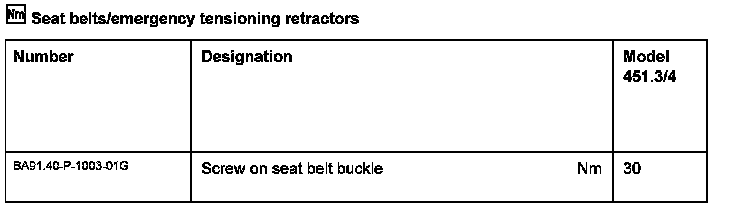

8 Tighten bolt (5) of seat belt buckle (6) to the specified tightening torque.

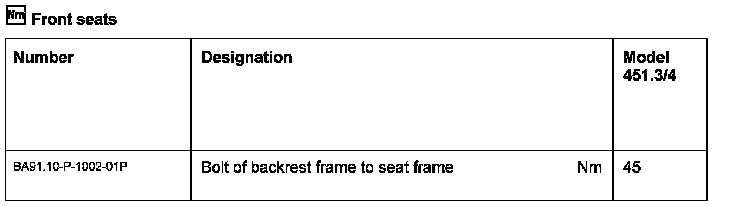

9 Starting from the rear, tighten the bolts (2) in the area of the seat belt buckle (6) to the specified tightening torque. While doing so, press the backrest frame (1) backwards.
