Engine Control Module: Service and Repair

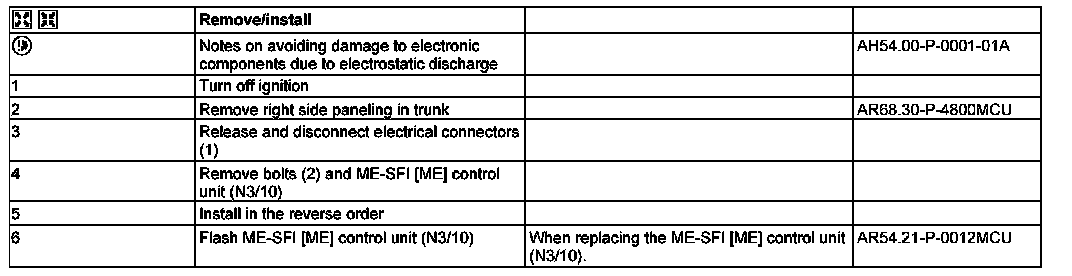

AR07.08-P-7008MCU Remove/Install Injection System Control Unit

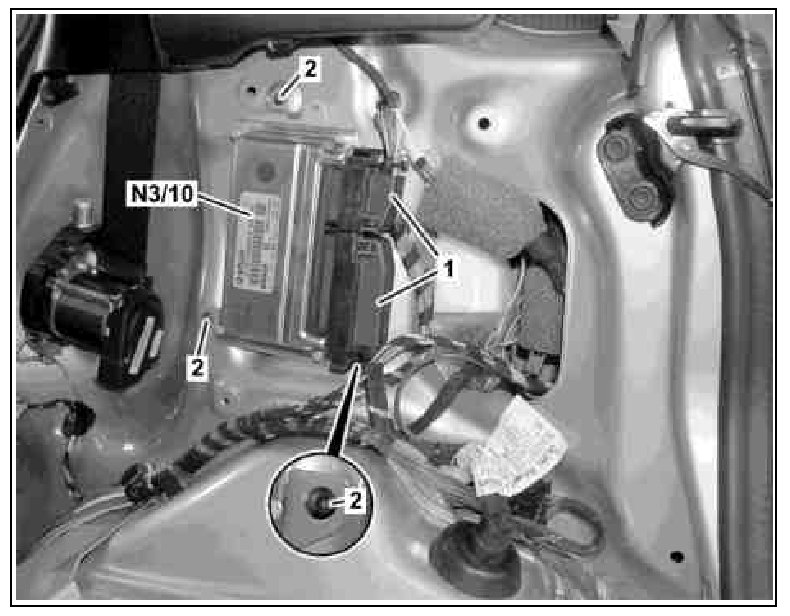

1 Electrical connector
2 Bolt
N3/10 ME-SFI [ME] control unit
