Fuel Tank Vent: Service and Repair

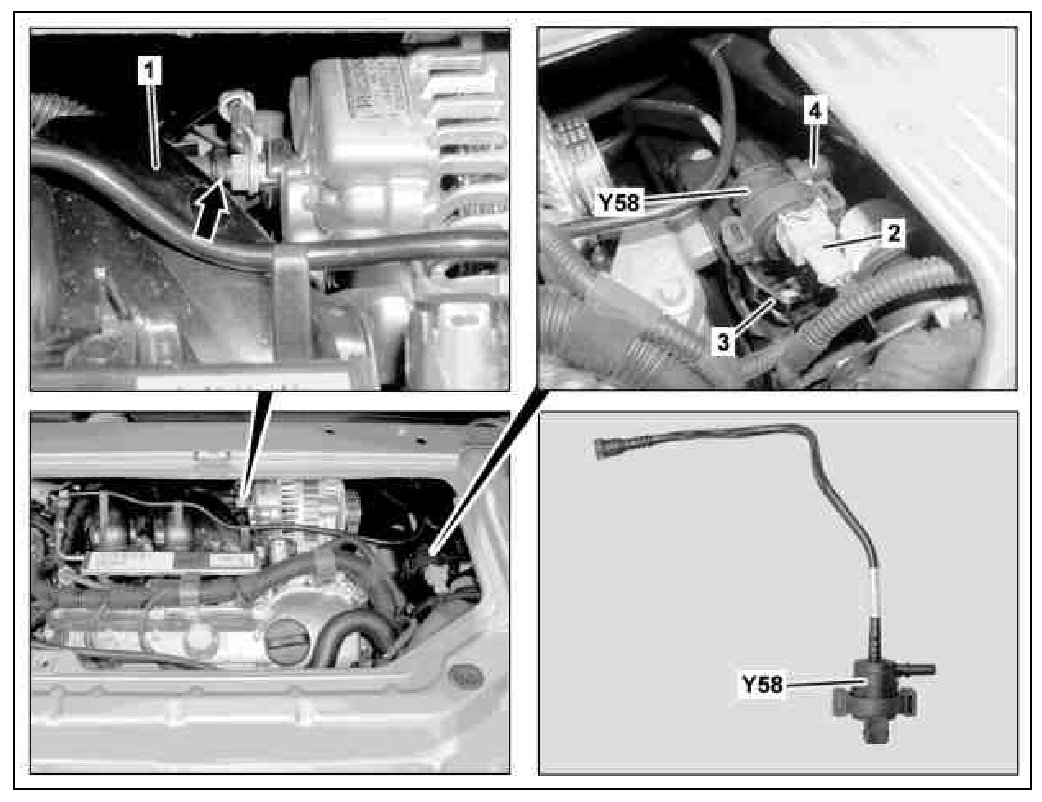

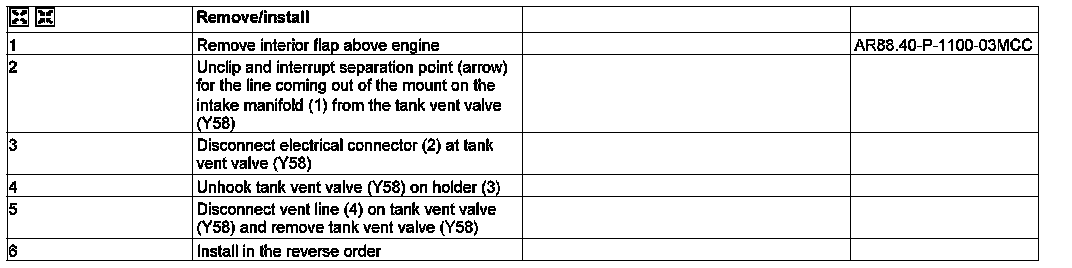

AR47.30-P-1000MCU Remove/Install Fuel Tank Vent Valve







1 Intake manifold
2 Electrical connector
3 Bracket
4 Vent line
Y58 Fuel tank vent valve
