Fuel Return Line: Service and Repair

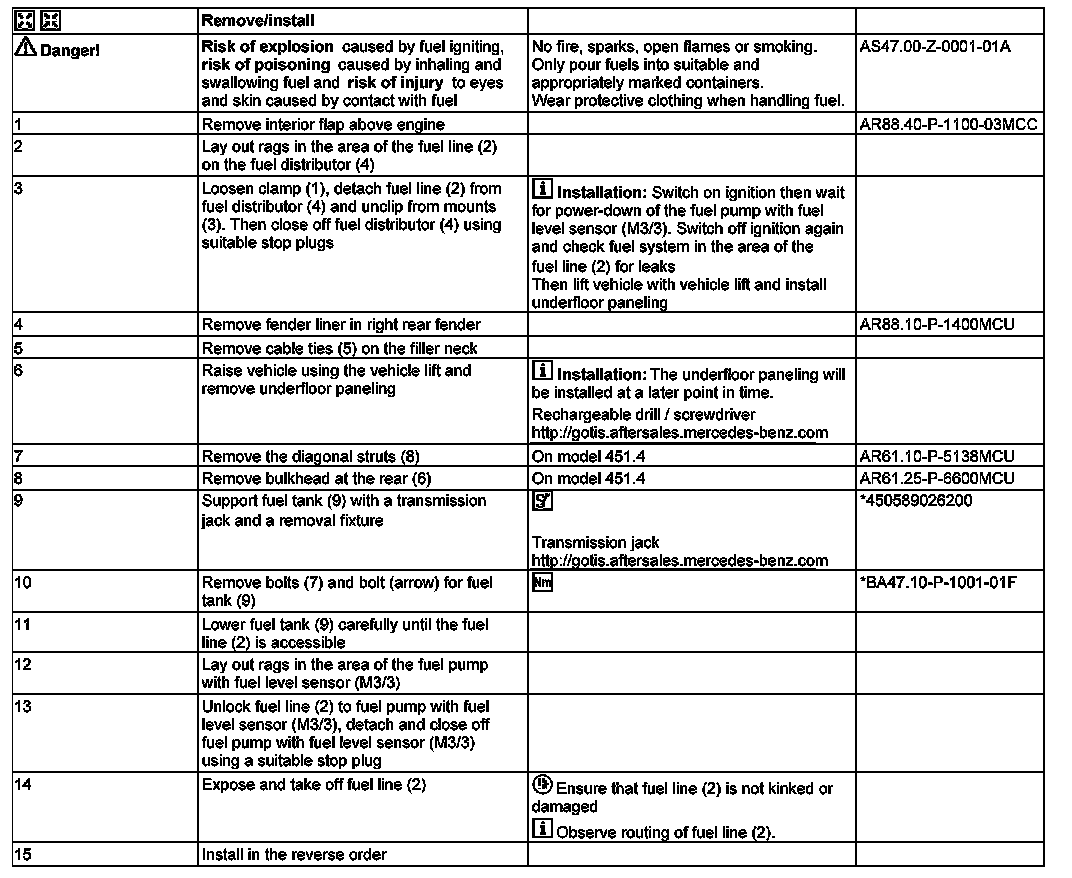

AR47.25-P-0025MCU Remove/Install Fuel Line

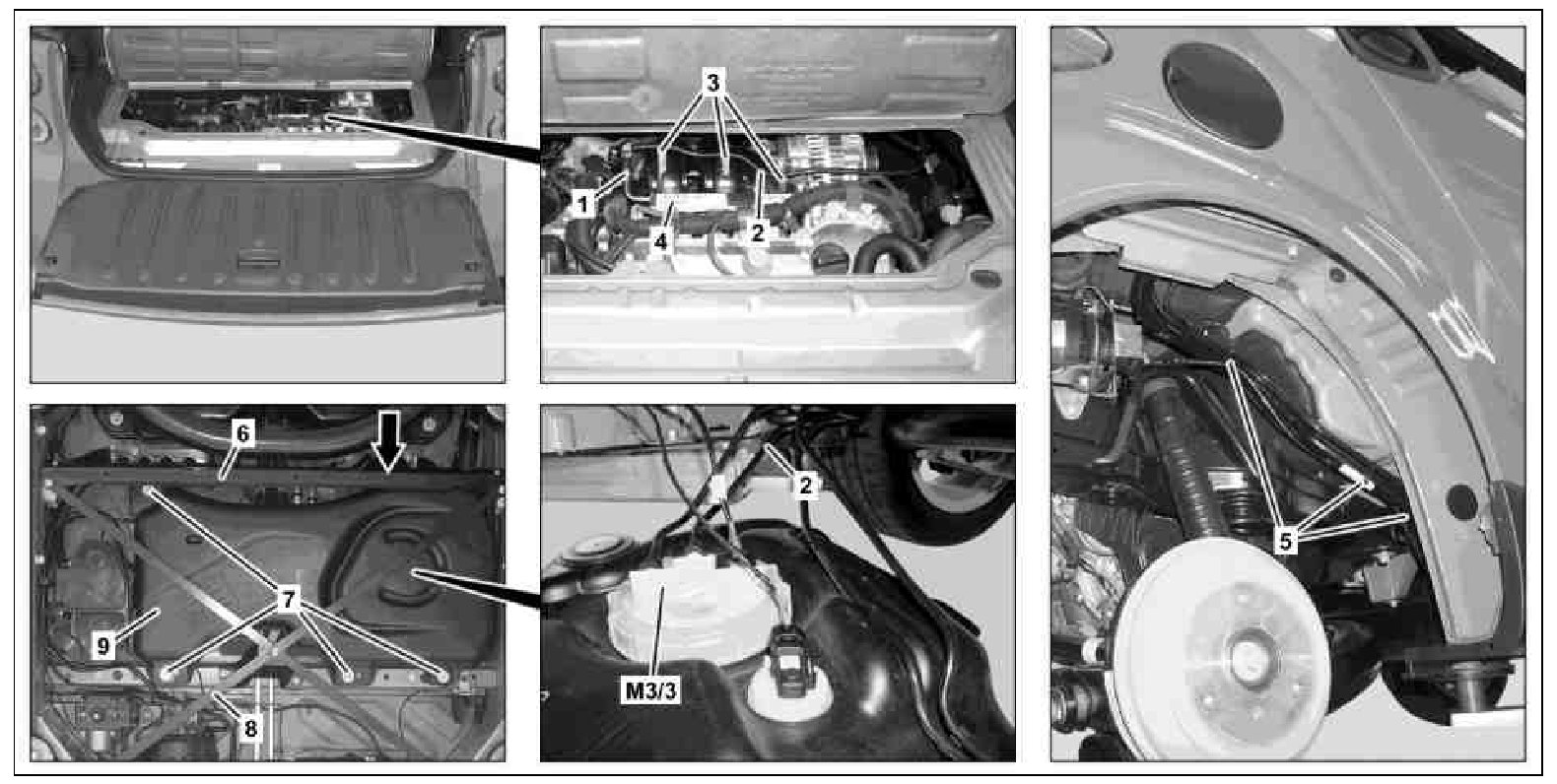

1 Hose clamp
2 Fuel pipe
3 Supports
4 Fuel distributor
5 Cable tie
6 Bulkhead at the rear (for model 451.4)
7 Bolts
8 Diagonal strut (for model 451.4)
9 Fuel tank
M3/3 Fuel pump with fuel tank sensor

















450 589 02 62 00, Removal assembly
