Air Injection Hose/Tube: Service and Repair

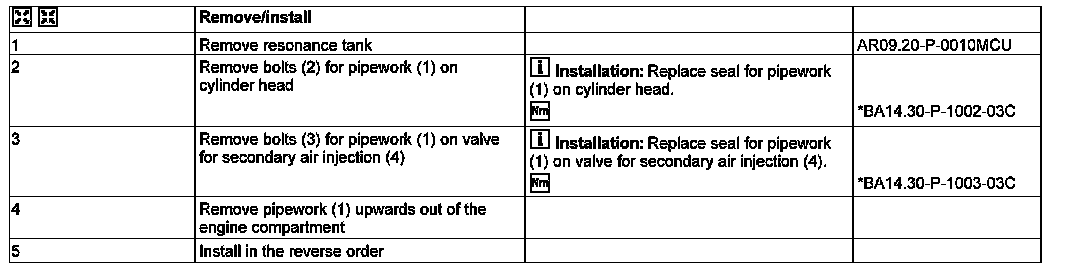

AR14.30-P-7150MCU Remove/Install Pipe Work For Secondary Air System

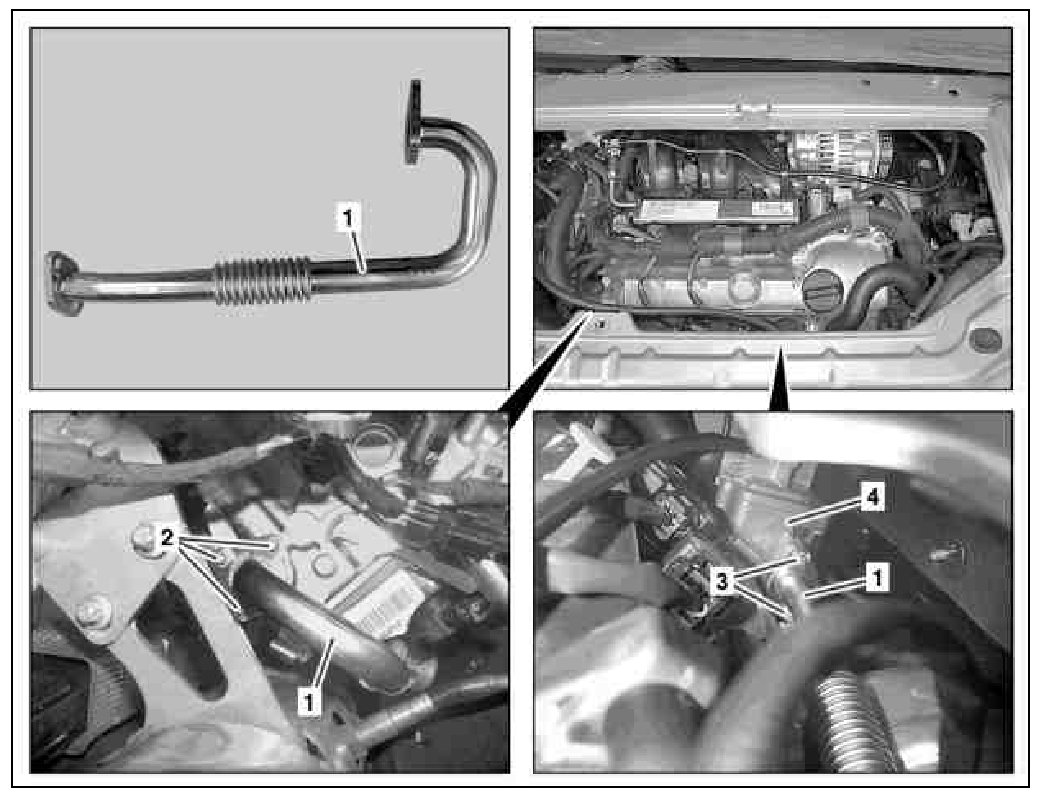

1 Pipeline
2 Bolts
3 Bolts
4 Valve for secondary air injection
