Air Injection Control Valve: Description and Operation

GF14.30-P-2055MCU Secondary Air Injection Pump Switchover Valve, Component Description








Y32 Secondary air injection pump switchover valve

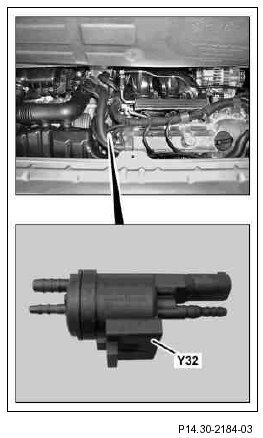

Location
The secondary air injection pump switchover valve is located on the left next to the cylinder head cover in the direction of travel.

Task
The secondary air injection pump switchover valve actuates the secondary air valve with a vacuum from the intake manifold for air injection.

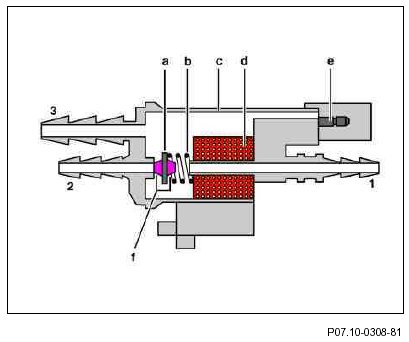

Design
1 Aeration connection
2 Vacuum pressure supply connection
3 Secondary air valve connection
a Armature disk
b Return spring
c Housing
d Solenoid
e Electrical connection
f Rubber seal

Function
The secondary air injection pump switchover valve is directly actuated by the ME-SFI [ME] control unit (N3/10) with a ground signal when air injection is enabled. As a result, the armature plate (a) is attracted by the solenoid (d) and the rubber seal (f) shuts off the aeration connection (1). The connection between the vacuum supply connection (2) and the secondary air valve connection (3) is released and the vacuum is created from the intake manifold to the secondary air valve.
In a deenergized state, the connection between the aeration connection (1) and the secondary air valve connection (3) is reestablished, vacuum actuation up to the secondary air valve is interrupted.
