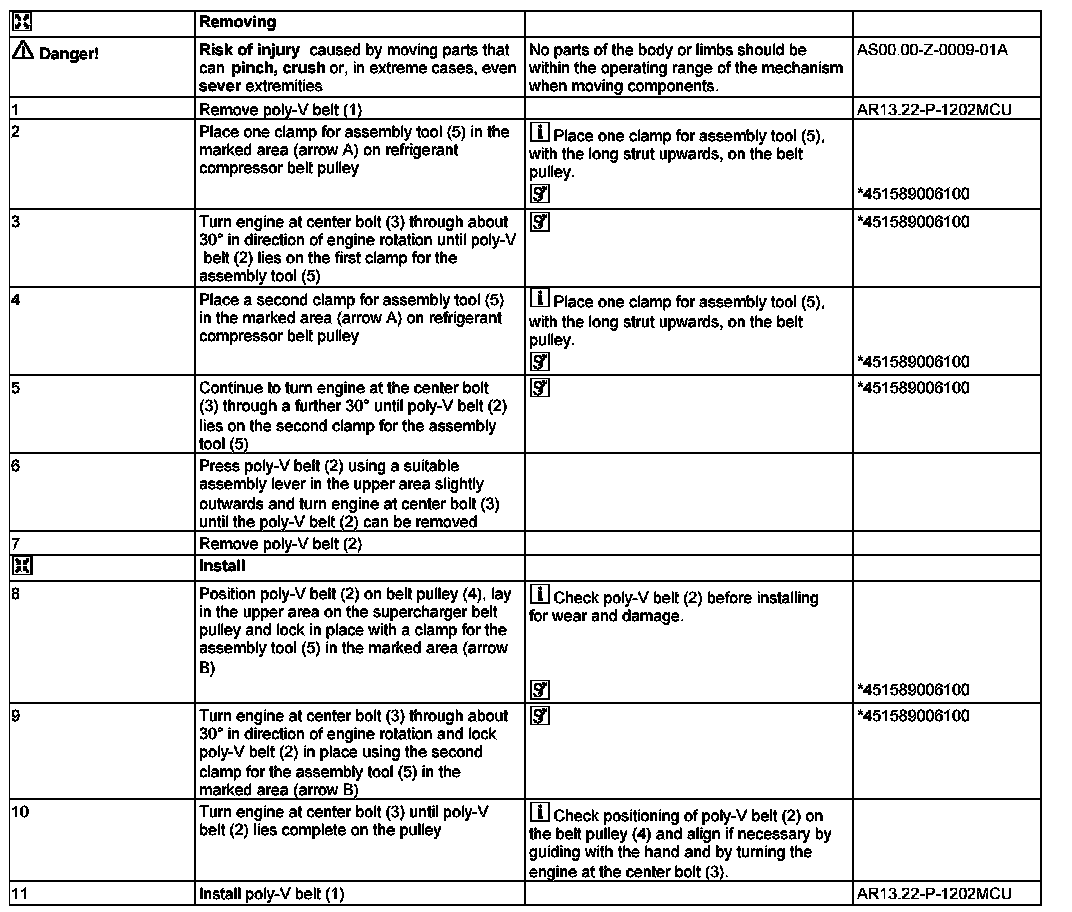

AR13.21-P-1202MCU Remove/Install Poly-V Belt For Compressor

AR13.21-P-1202MCU Remove/Install Poly-V Belt For Compressor
- with CODE (I01) Air conditioning Plus

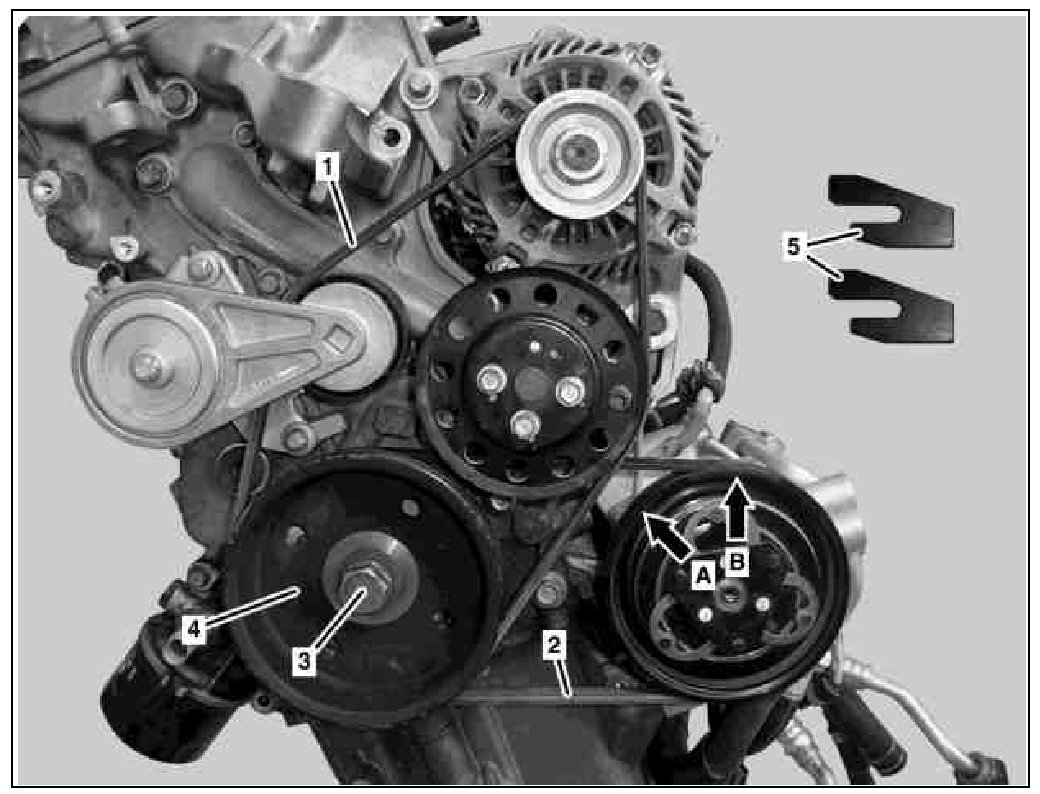

Illustrated on removed engine







1 Poly-V belt
2 Poly-V belt
3 Center bolt
4 Belt pulley
5 Assembly tool

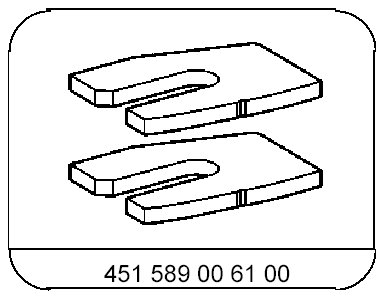

451 589 00 61 00, Assembly tool
