GF13.25-P-3202MCC Component Description For the Clamping Device

GF13.25-P-3202MCC Component Description For the Clamping Device

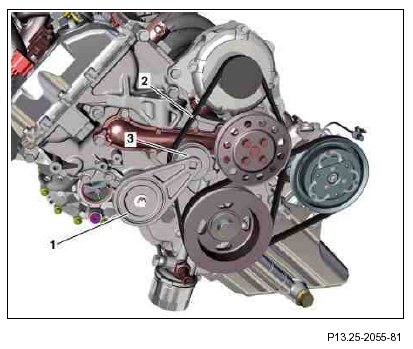

1 Tensioning device
2 Poly-V-belt
3 Tensioner pulley

Location
The clamping device is located seen in the direction of travel on the right side on the engine.

Task
The poly-V belt is automatically tensioned with the required force via the tensioning device.

Function
The poly-V belt is tensioned with the specified force via a spring integrated into the tensioning device. Transfer of the spring force on the V-belt takes place via the tensioner pulley mounted on the clamping device.
