GF13.21-P-6000MCU Component Description For Stretch Belts

GF13.21-P-6000MCU Component Description For Stretch Belts
- ENGINE 132.9 in MODEL 451.3 /4 with CODE (I01) Air conditioning Plus

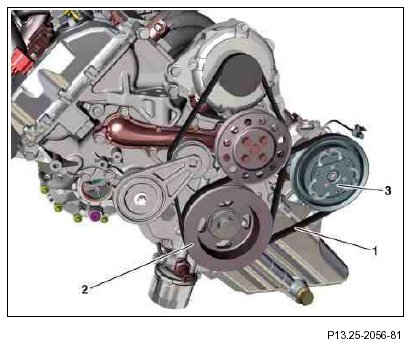

1 Stretch belt
2 Crankshaft belt pulley
3 Belt pulley on refrigerant compressor

Location
The stretch belt is located seen in the direction of travel on the right side on the engine and connects the crankshaft belt pulley with the refrigerant compressor belt pulley.

Task
The stretch belt transfers the rotational movement of the crankshaft via the crankshaft belt pulley to the refrigerant compressor belt and thus drives the refrigerant compressor (A9).

The stretch belt does not need a tensioning device and must be replaced after a specified mileage.
