GF13.21-P-1000MCU Belt Drive Function

GF13.21-P-1000MCU Belt Drive Function

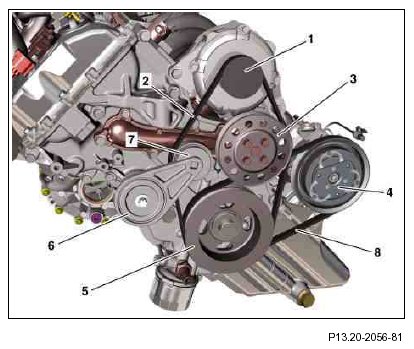

Shown with code (I01) Air conditioning Plus
1 Alternator belt pulley
2 Poly-V-belt
3 Coolant pump belt pulley
4 Refrigerant compressor belt pulley
(for code (I01) Air conditioning Plus)

5 Crankshaft belt pulley
6 Tensioning device
7 Tensioner pulley
8 Stretch belt
(for code (I01) Air conditioning Plus)

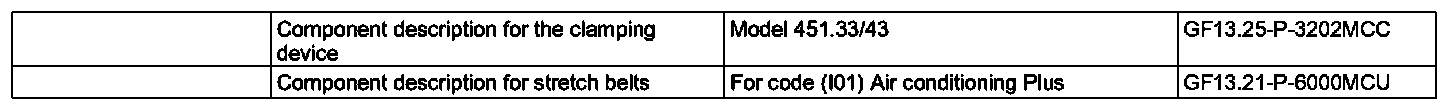

Function
Driving of the alternator (G2) and coolant pump is by means of a poly-V belt which is tensioned by a spring-loaded tensioning device. Transfer of the spring force on the V-belt takes place via the tensioner pulley mounted on the clamping device.
For vehicles with code (I01) Air conditioning Plus the drive for the refrigerant compressor is by means of a stretch belt.
