AN82.20-P-0001-02MCC Prepare Rear Roof Frame Paneling For Installation of Trunk Illumination

AN82.20-P-0001-02MCC Prepare Rear Roof Frame Paneling For Installation of Trunk Illumination

450 589 00 28 00, Graduated drill

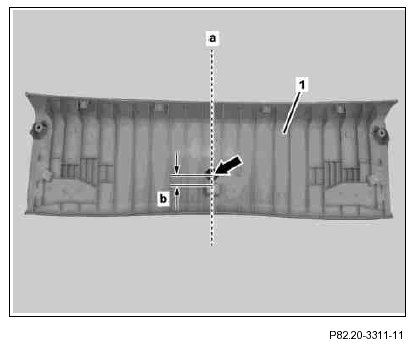

1. Mark drill hole on rear roof frame paneling (1) in accordance with center line (a) and distance dimension (b).
The distance dimension (b) is 20 mm.

2. Drill hole with a diameter of 26 mm in marked area (arrow) using graduated drill.
Cordless drill/driver
