AN82.20-P-0001-01MCC Retrofitting Trunk Lamp Wiring Harness

AN82.20-P-0001-01MCC Retrofitting Trunk Lamp Wiring Harness

000 589 13 99 00, Wiring harness repair kit, basic







110 589 03 59 00, Mounting wedge

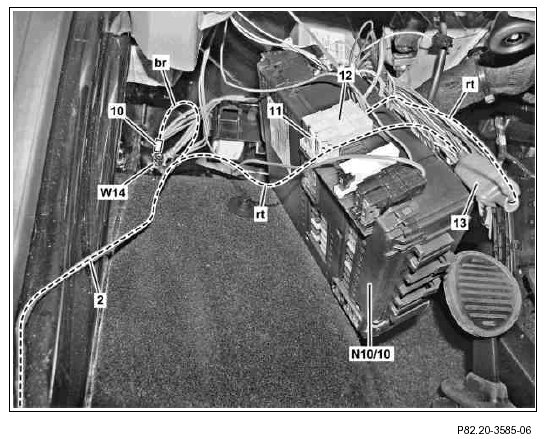

1. Route trunk illumination wiring harness (2) in vehicle.
2. Attach brown line (br) with cable lug (10) at left interior floor ground (W14).
3. Insert fuse holder (12) into free slot at SAM control unit (N10/10).
The slots are coded. Ensure that fuse (11) is seated correctly in fuse holder (12).

4. Fix red line (rt) in place with relay (13) at vehicle wiring harness.

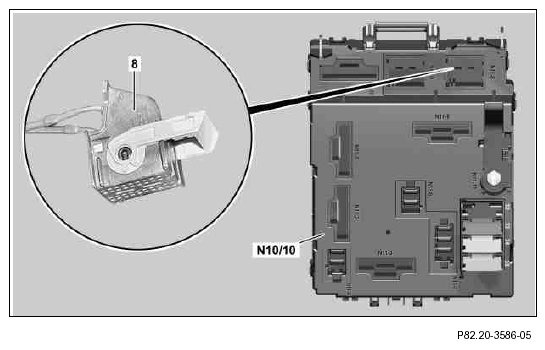

5. Fold down SAM control unit (N10/10) until connector 8 (8) is accessible at SAM control unit (N10/10).
6. Disconnect connector 8 (8) at SAM control unit (N10/10).

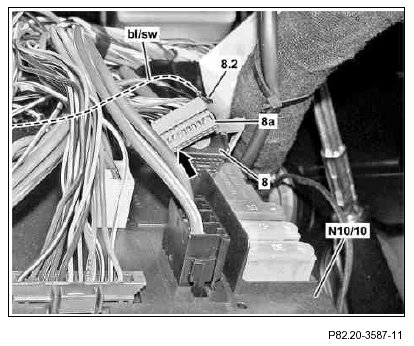

7. Unclip white plug insert (8a) with blue/black line (bl/sw) out of connector 8 (8).
8. Unplug pin 2 (8.2) out of contact cavity 2 (arrow) of white plug insert (8a) with wiring harness repair kit, basic.

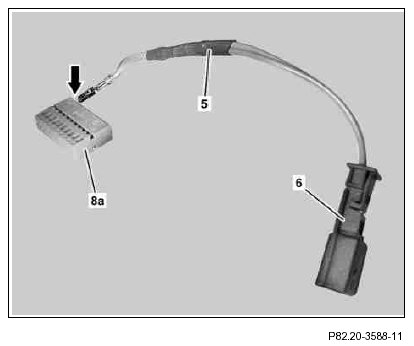

9. Plug pin of adapter line (5) into contact cavity 2 (arrow) of white plug insert (8a).
10. Clip white plug insert (8a) with adapter line (5) into connector 8.
11. Connect plug 8 to SAM control unit.

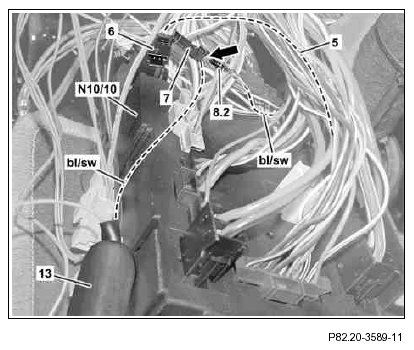

12. Route coupling (6) with adapter line (5) below electrical lines on left side of SAM control unit (N10/10).
13. Route pin 2 (8.2) with blue/black line (bl/sw) below electrical lines on left side of SAM control unit (N10/10).
14. Plug in pin 2 (8.2) of blue/black line (bl/sw) in free slot (arrow) of connector (7) of blue/black line (bl/sw) of relay (13).
15. Fasten pin 2 (8.2) by closing the connector (7).
16. Insert coupling (6) of adapter line (5) into connector (7) of relay (13).

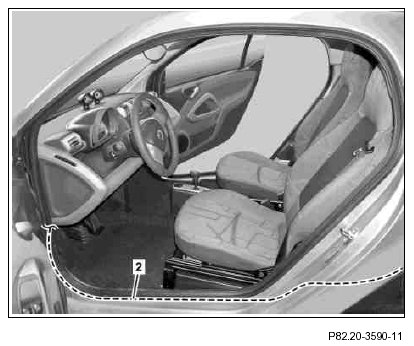

17. Carefully route trunk illumination wiring harness (2) with assembly wedge below floor covering.
Do not damage trunk illumination wiring harness (2) when routing by means of crushing or pinching as this may lead to a short circuit.

The trunk illumination wiring harness (2) should be route corresponding to the broken line that is shown.







18. Fix trunk illumination wiring harness (2) in place at on-board wiring harness (14) using cable tie.
Do not damage trunk illumination wiring harness (2) when routing by means of crushing or pinching as this may lead to a short circuit.

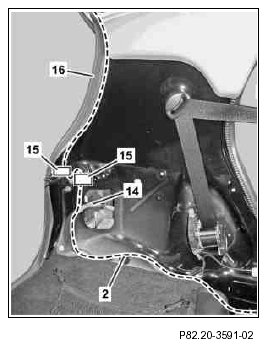

19. Route trunk illumination wiring harness (2) upwards beneath rubber seal (16) and fix in place with adhesive tape (15).
Do not damage trunk illumination wiring harness (2) when routing by means of crushing or pinching as this may lead to a short circuit.

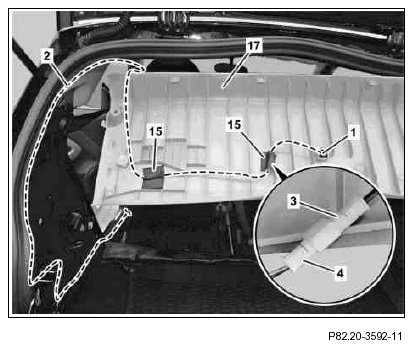

20. Insert trunk illumination (1) into rear roof frame paneling (17).
Ensure that the trunk illumination (1) is properly seated.

21. Insert connector (3) of trunk illumination (1) into coupling (4) of trunk illumination wiring harness (2).
Ensure that connector (3) is seated correctly in coupling (4).

22. Route trunk illumination wiring harness (2) on rear roof frame paneling (17), as shown, and fix in place with adhesive tape (15).
Do not damage trunk illumination wiring harness (2) when routing by means of crushing or pinching as this may lead to a short circuit.
