AN82.10-P-0100MCC Retrofit Daytime Running Lights Headlamp

AN82.10-P-0100MCC Retrofit Daytime Running Lights Headlamp
- except CODE (V07) Front fog lamps (FFO)
- except CODE (460) Canada version

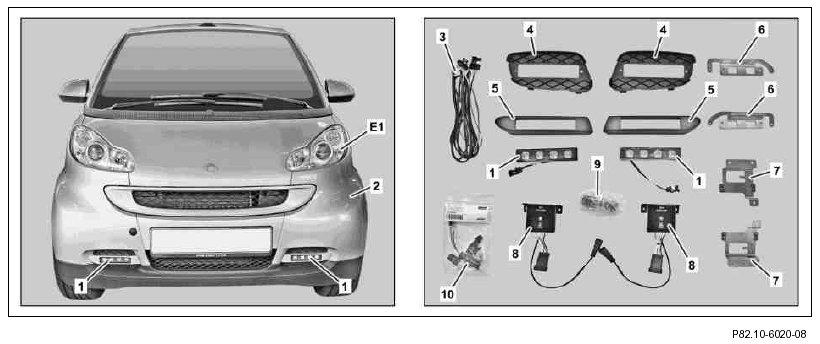

1 Daytime running lights headlamp
2 Front CBS
3 Wiring harness
4 Cover
5 Installation frame
6 Bracket
7 Bracket
8 Daytime running lamp control unit
9 Screw set
10 Electronics set
E1 Left front headlamp unit







11 Screw

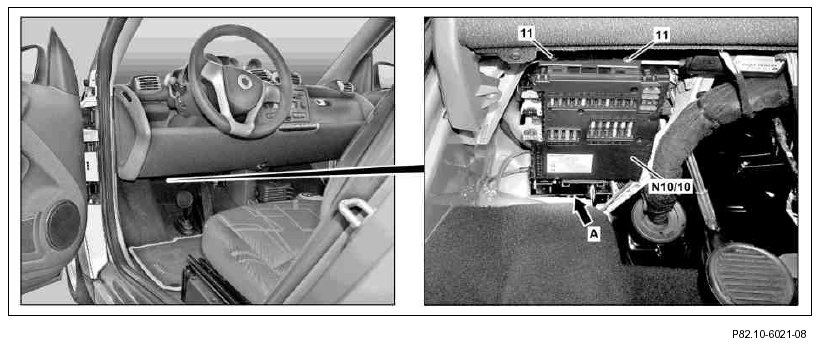

N10/10 SAM control unit







000 589 13 99 00, Wiring harness repair kit, basic







450 589 12 37 00, Expanding pliers







450 589 25 63 00, Puller aid
