AN82.10-P-0100-04MCD Retrofit Daytime Running Lights Headlamp In CBS Front End

AN82.10-P-0100-04MCD Retrofit Daytime Running Lights Headlamp In CBS Front End

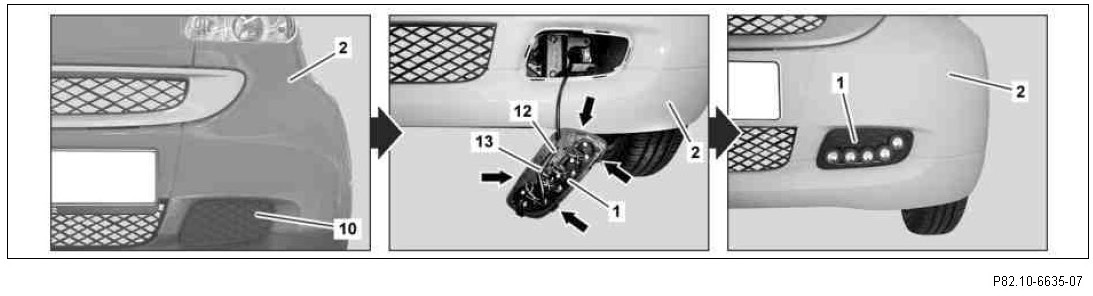

1 Unclip trim (10) from CBS front end (2).

2 Connect connector (12) to coupling (13) of daytime running lights headlamp unit (1).

3 Clip daytime running lights headlamp unit (1) into CBS front end (2).
Ensure that catch hooks (arrows) of daytime running lights headlamp unit (1) are seated correctly in CBS front end (2).
