AR83.30-P-7813MCU Remove/Install Refrigerant Line Between Condenser and Refrigerant Compressor

AR83.30-P-7813MCU Remove/Install Refrigerant Line Between Condenser And Refrigerant Compressor
- with CODE (I01) Air conditioning Plus


Shown on model 451.4 up to production date 2.6.08

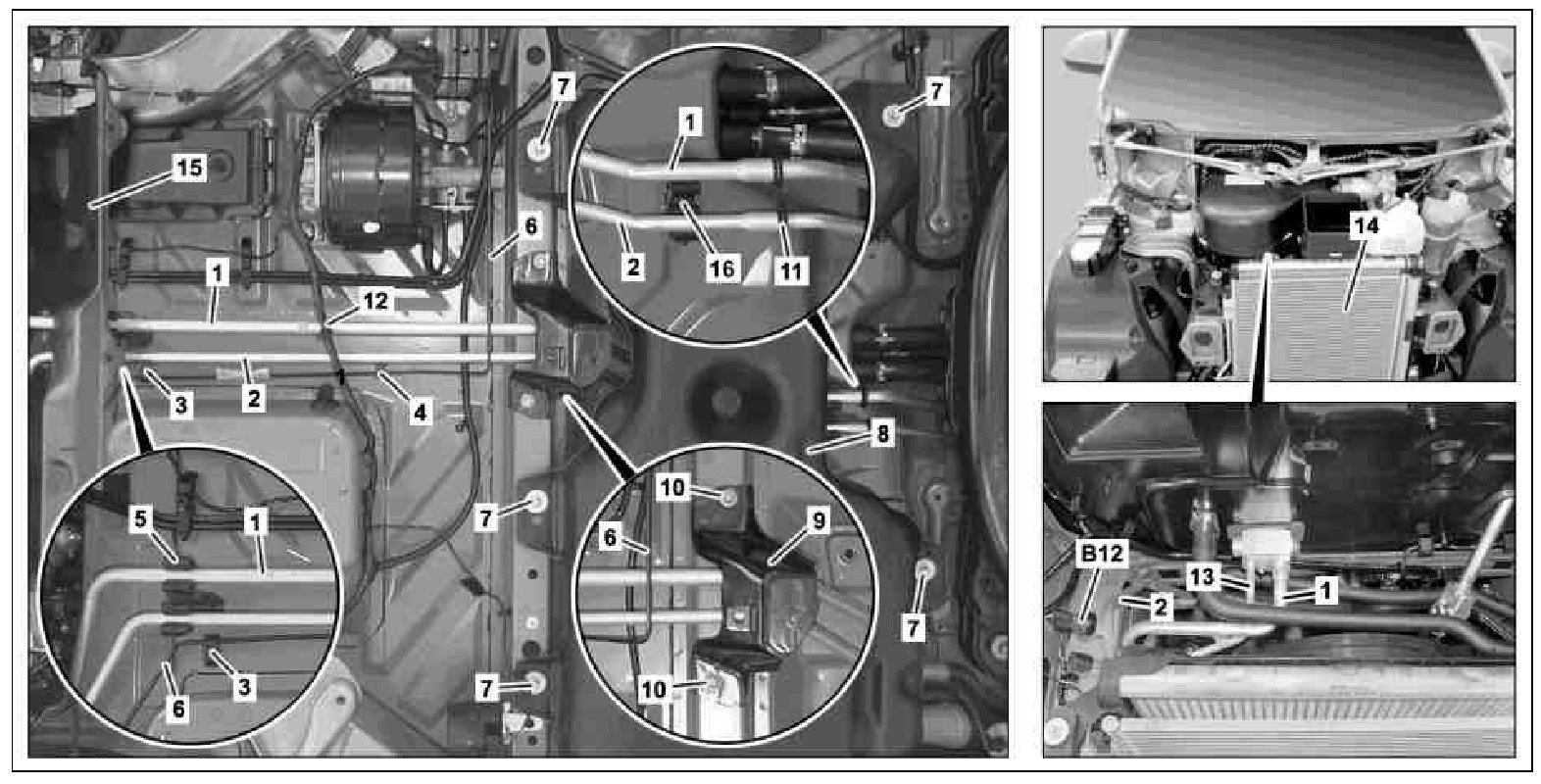

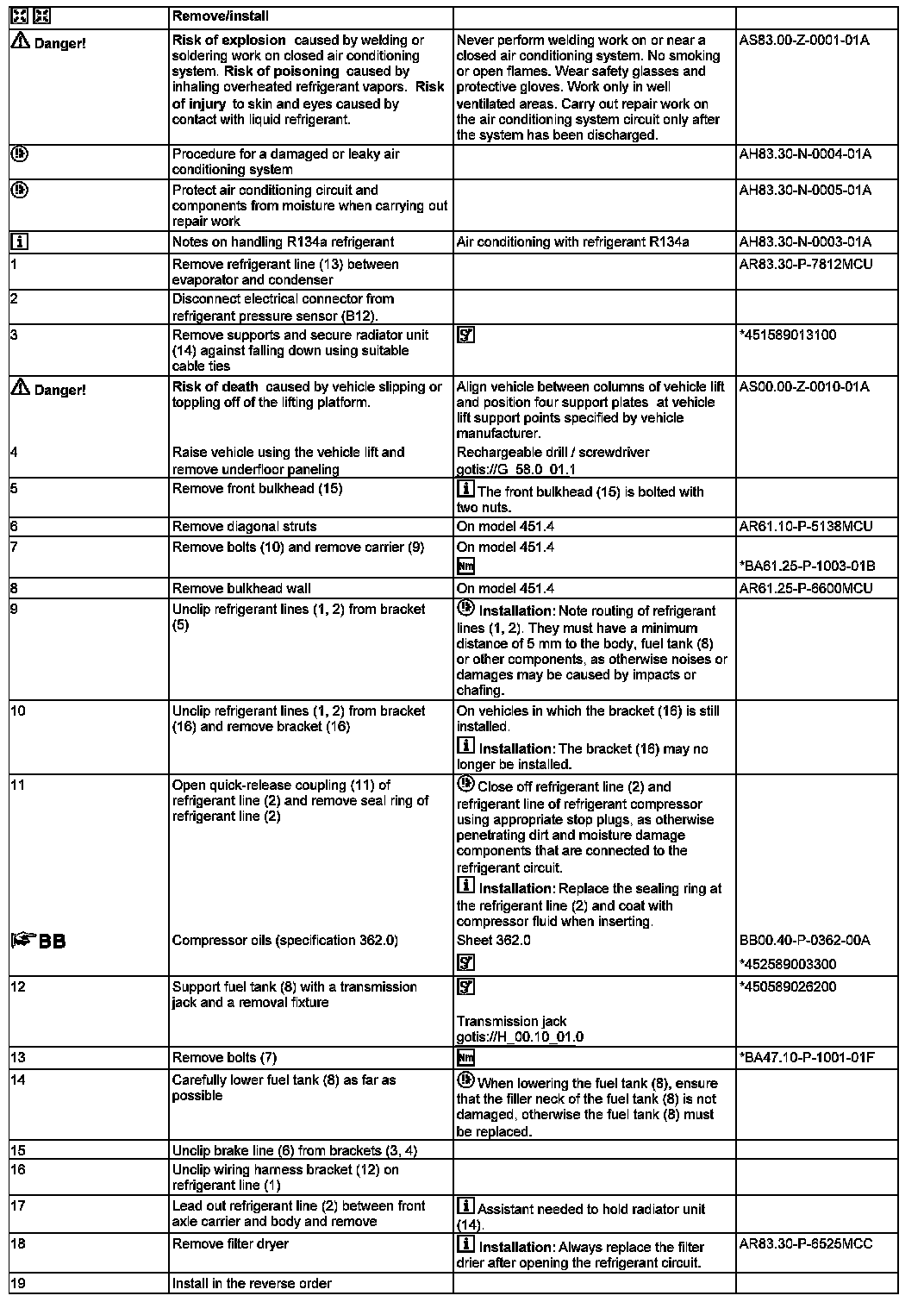

1 Refrigerant line
2 Refrigerant line
3 Bracket
4 Bracket
5 Bracket
6 Brake line
7 Screw
8 Fuel tank
9 Carrier (on model 451.4)
10 Bolt (on model 451.4)
11 Quick-release coupling
12 Wiring harness mount
13 Refrigerant line
14 Radiator unit
15 Front bulkhead
16 Bracket
B12 Refrigerant pressure sensor



























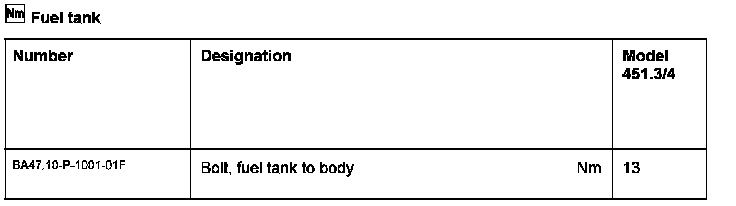

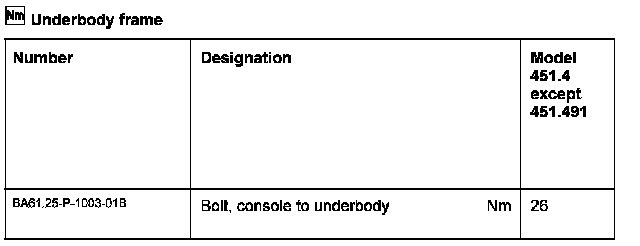

450 589 02 62 00, Removal assembly







451 589 01 31 00, Mount

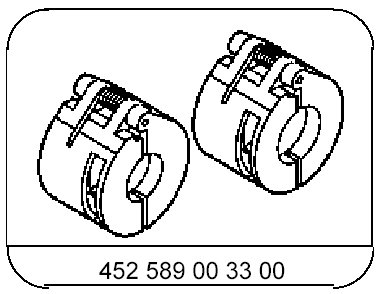

452 589 00 33 00, Cutting tool set
