AR83.30-P-7812MCU Remove/Install Refrigerant Line Between Evaporator and Condenser

AR83.30-P-7812MCU Remove/Install Refrigerant Line Between Evaporator And Condenser
- with CODE (I01) Air conditioning Plus

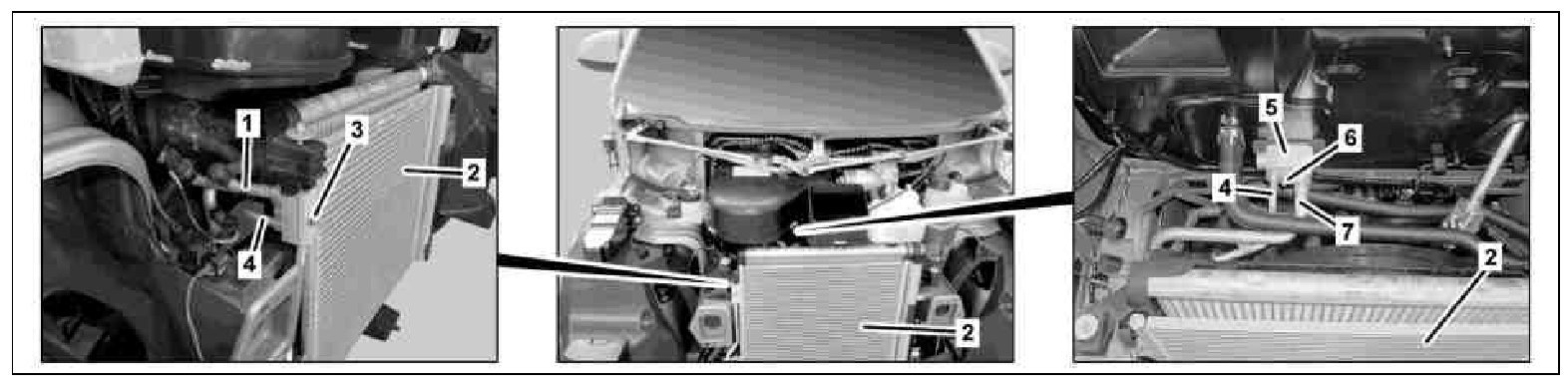

1 Refrigerant line
2 Capacitor
3 Nut
4 Refrigerant line
5 Expansion valve
6 Nut
7 Refrigerant line
