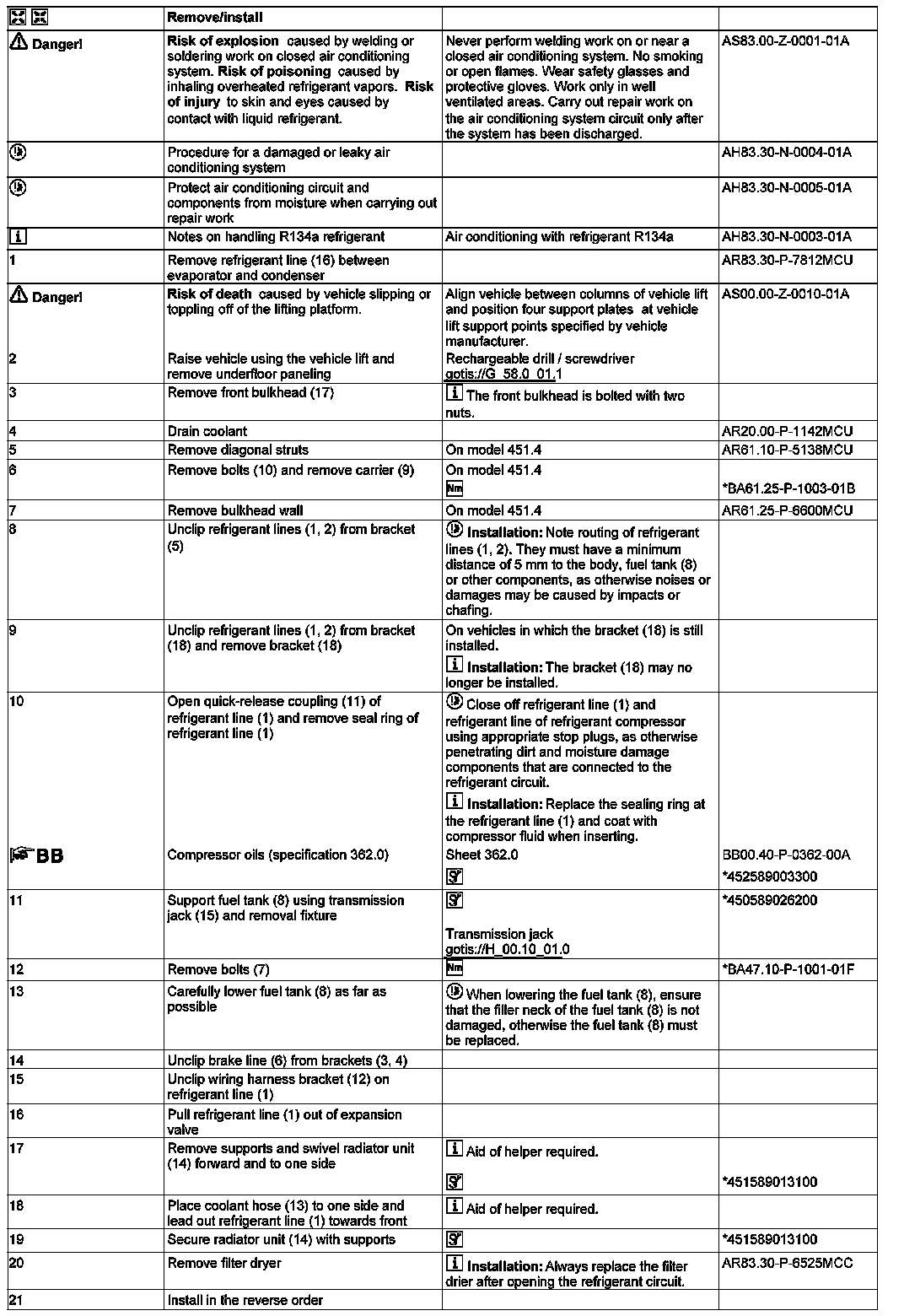

AR83.30-P-7811MCU Remove/install refrigerant line between refrigerant compressor and evaporator

AR83.30-P-7811MCU Remove/Install Refrigerant Line Between Refrigerant Compressor And Evaporator
- with CODE (I01) Air conditioning Plus


Shown on model 451.4 up to production date 2.6.08

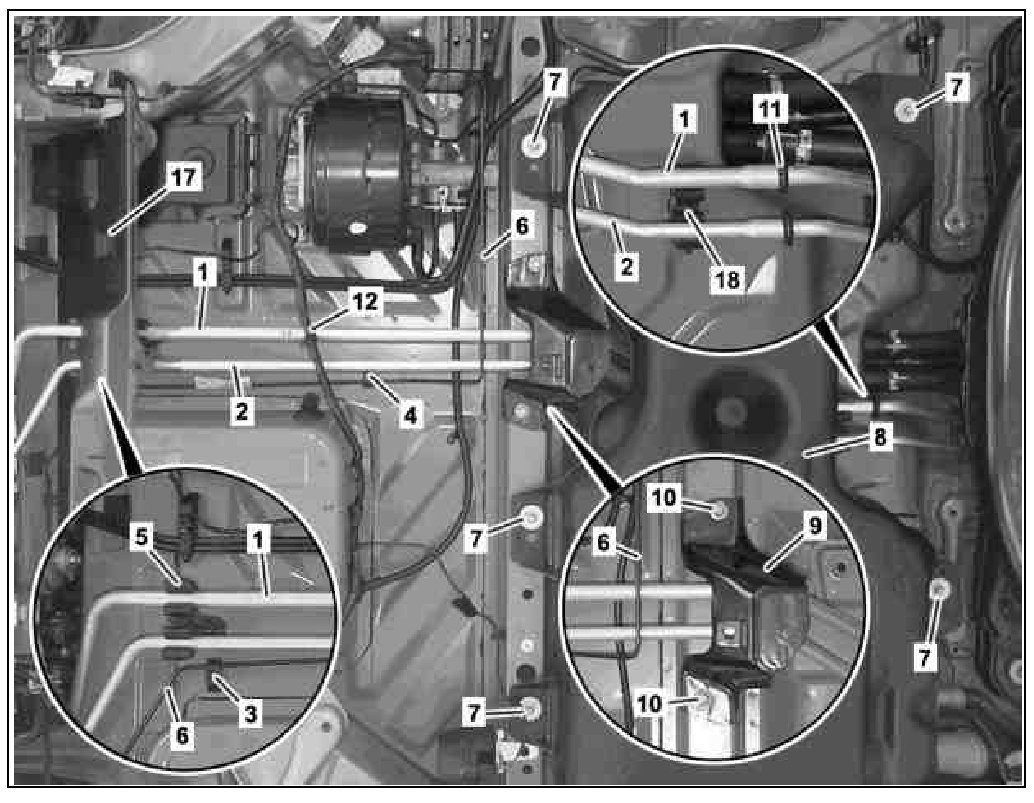

1 Refrigerant line
2 Refrigerant line
3 Bracket
4 Bracket
5 Bracket
6 Brake line
7 Screw

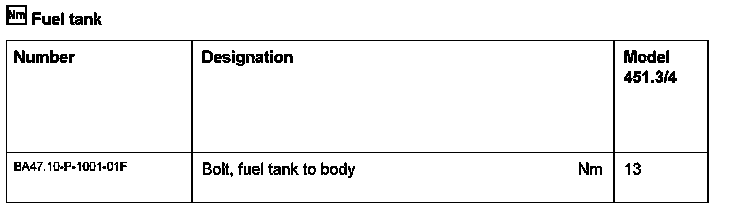

8 Fuel tank

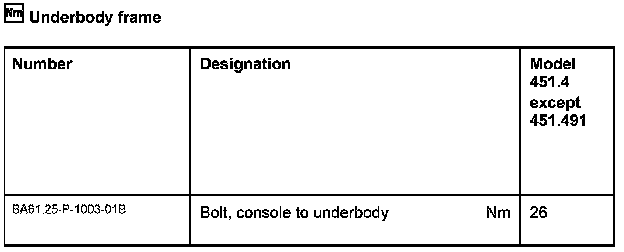

9 Carrier (on model 451.4)
10 Bolt (on model 451.4)
11 Quick-release coupling
12 Wiring harness mount
17 Front bulkhead
18 Bracket

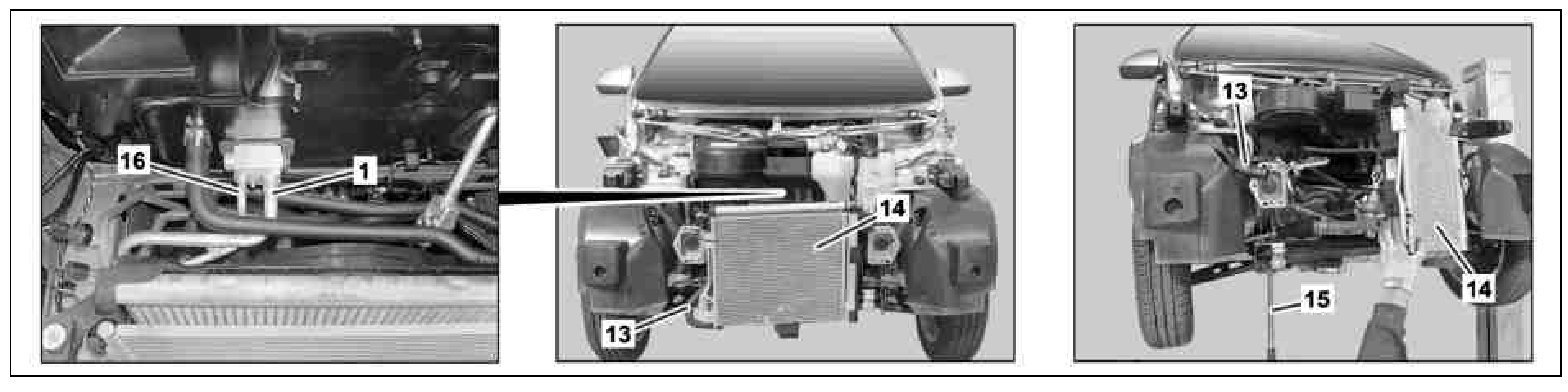

1 Refrigerant line
13 Coolant hose
14 Radiator unit
15 Transmission jack
16 Refrigerant line



























450 589 02 62 00, Removal assembly







451 589 01 31 00, Mount







452 589 00 33 00, Cutting tool set
