AR83.30-P-7810MCU Remove/install refrigerant lines at refrigerant compressor

AR83.30-P-7810MCU Remove/Install Refrigerant Lines At Refrigerant Compressor
- with CODE (I01) Air conditioning Plus

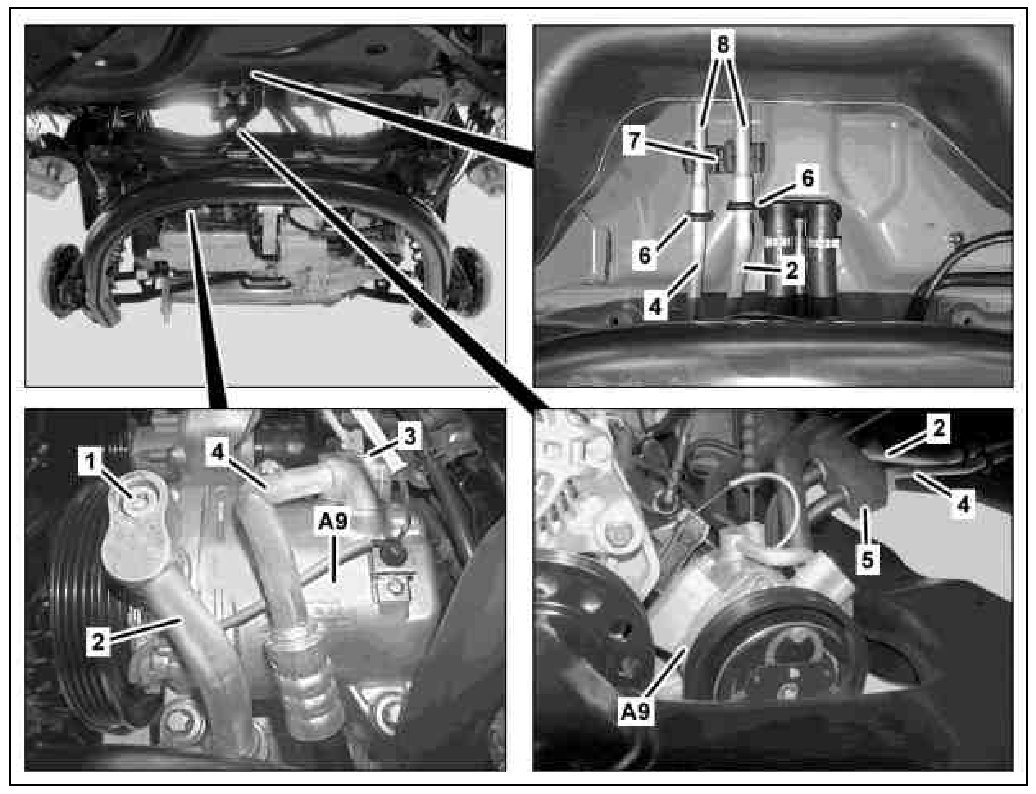

Shown on model 451.3 up to production date 2.6.08







1 Screw
2 Refrigerant line
3 Screw
4 Refrigerant line
5 Retaining rubber
6 Quick-release coupling
7 Bracket
8 Refrigerant lines
A9 Refrigerant compressor






















452 589 00 33 00, Cutting tool set
