Compressor HVAC: Description and Operation

GF83.55-P-2108MCU Component Description Of Refrigerant Compressor
- with CODE (I01) Air conditioning Plus

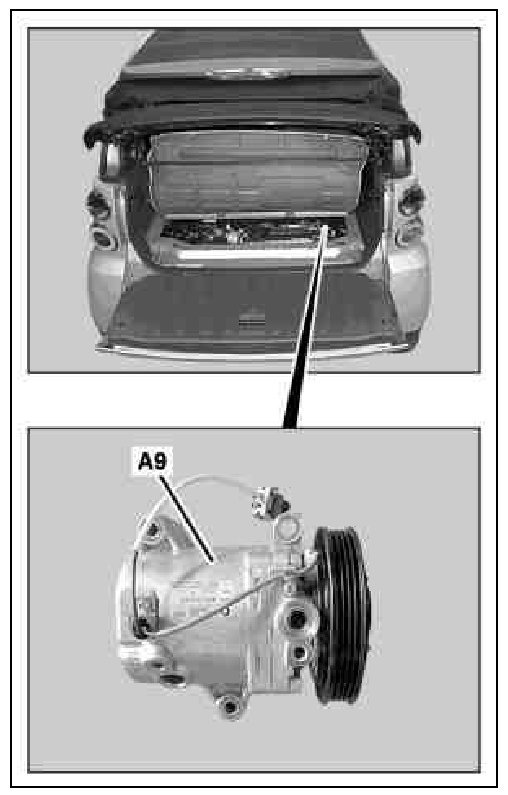

A9 Refrigerant compressor

Location
The refrigerant compressor is installed to the right at the engine and is driven via a poly-V belt.

Task
The refrigerant compressor is responsible for induction and compression of the refrigerant. The refrigerant compressor is switched on and off by the SAM control unit (N10/10) through the actuation of the magnetic clutch installed at the refrigerant compressor.
