Air Duct: Service and Repair

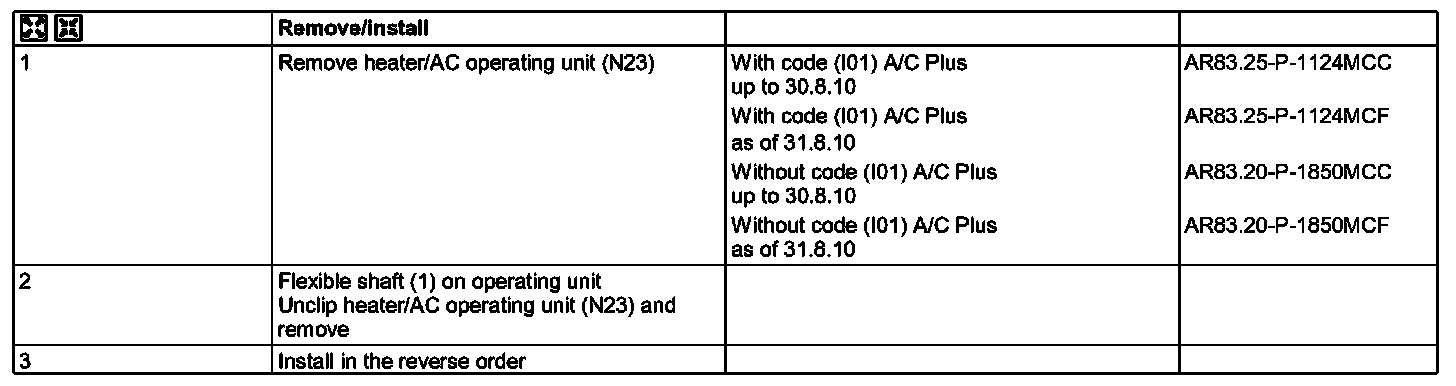

AR83.10-P-1401MCC Remove/Install Flexible Shaft For Air Distribution

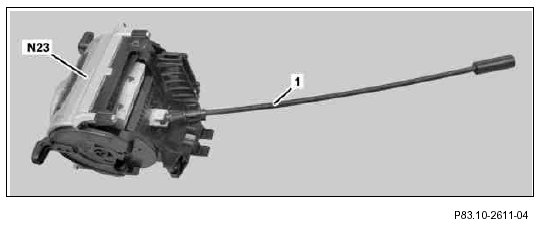

Shown on heater/AC operating unit with code (I01) Air conditioning Plus
1 Flexible shaft
N23 Heater/AC operating unit
