Removal and Replacement

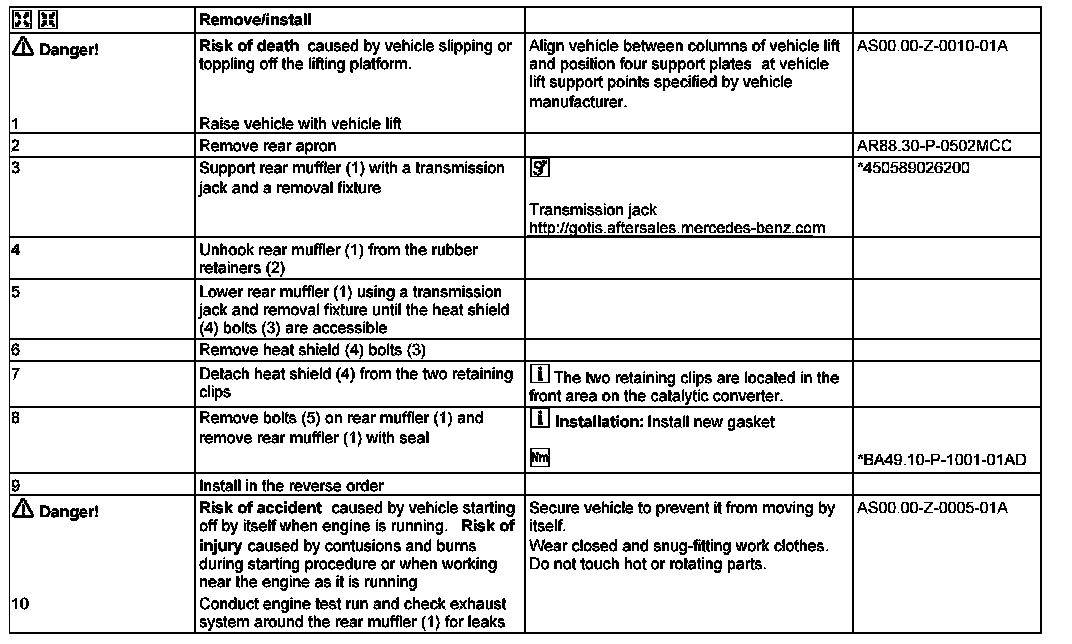

AR49.10-P-4823MCU Remove/Install Rear Muffler

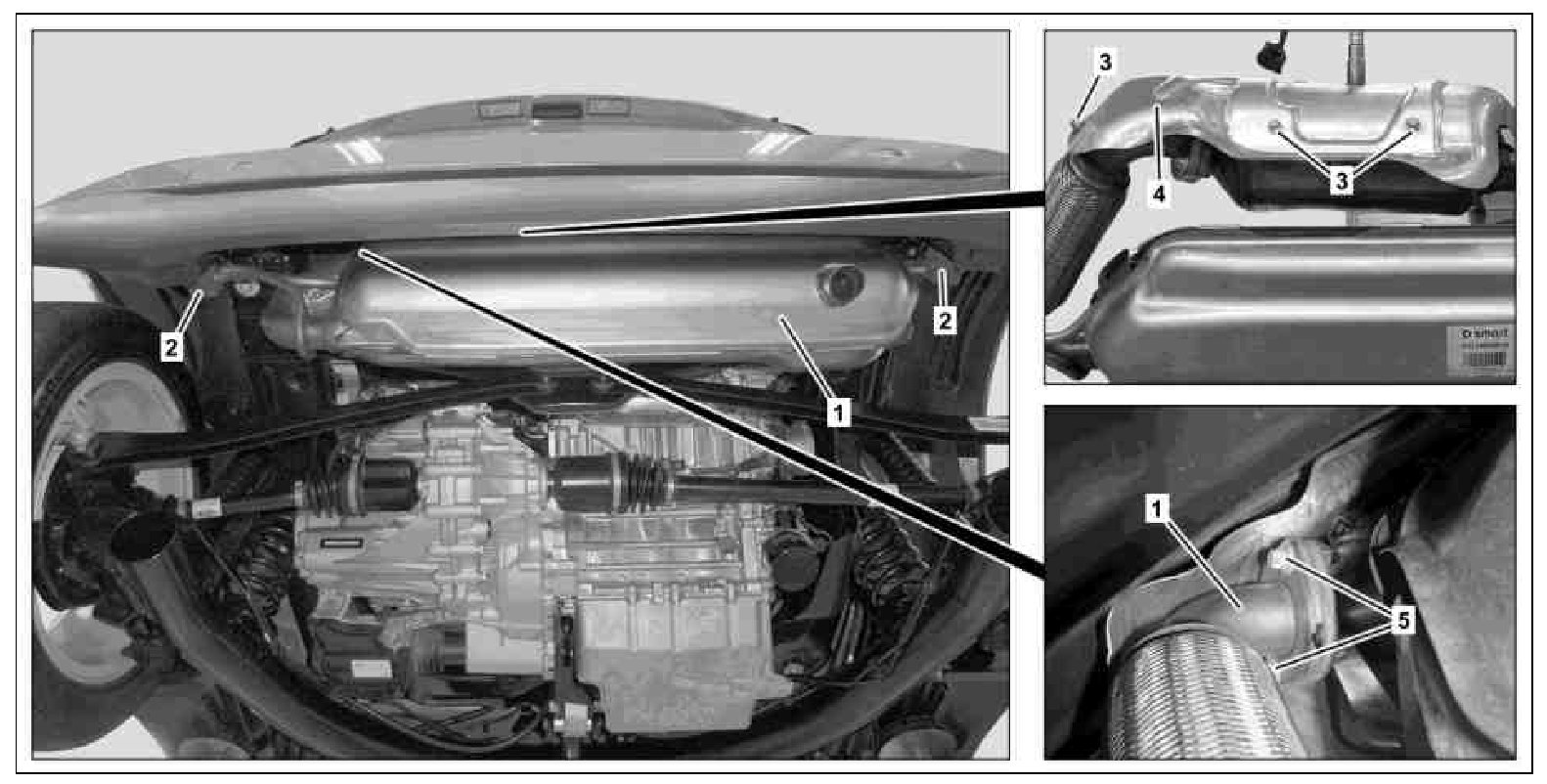

1 Rear muffler
2 Retaining rubber
3 Bolts
4 Heat shield
5 Bolts

















450 589 02 62 00, Removal assembly
