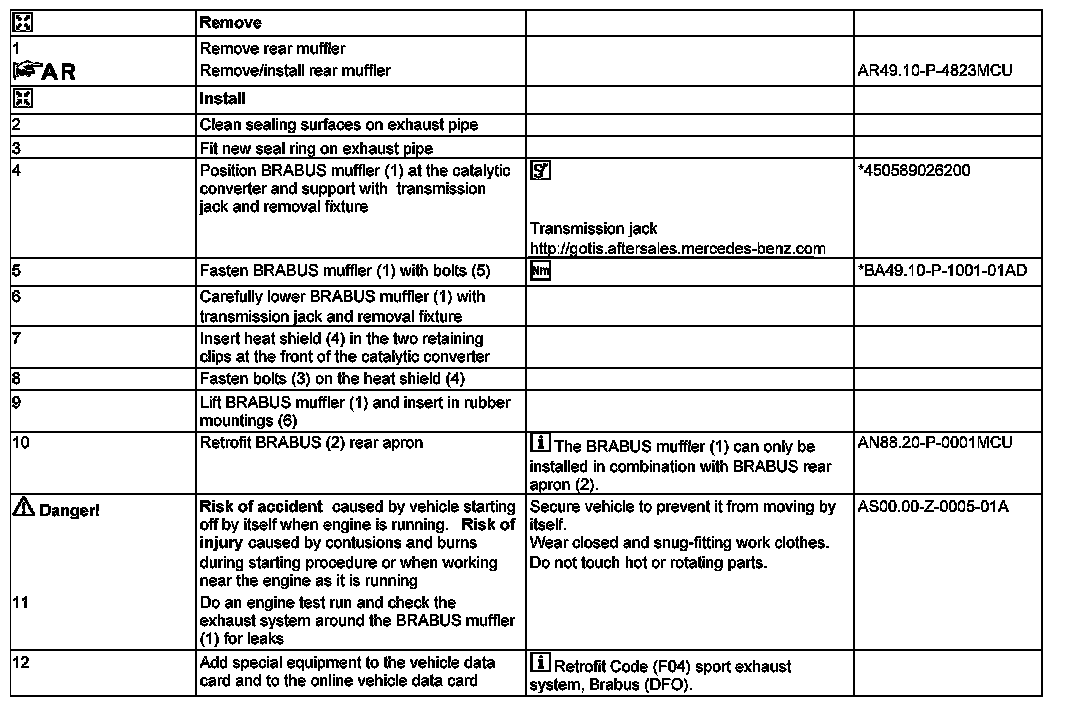

AN49.10-P-1003MCU Retrofit BRABUS Muffler



AN49.10-P-1003MCU Retrofit BRABUS Muffler

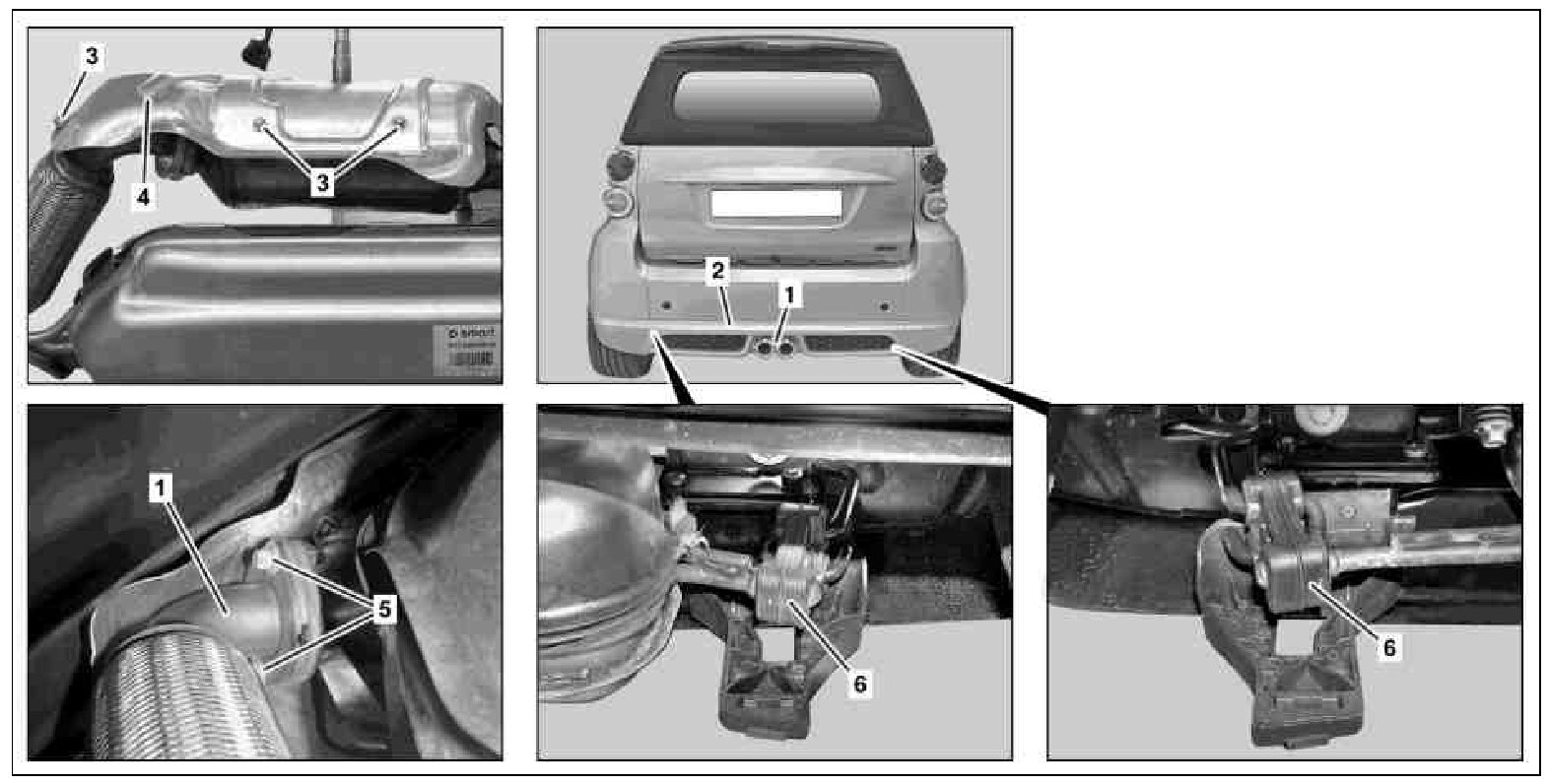

1 BRABUS muffler
2 BRABUS rear apron
3 Bolts
4 Heat shield
5 Bolts
6 Retaining rubber

















450 589 02 62 00, Removal assembly
