Variable Valve Timing Solenoid: Service and Repair

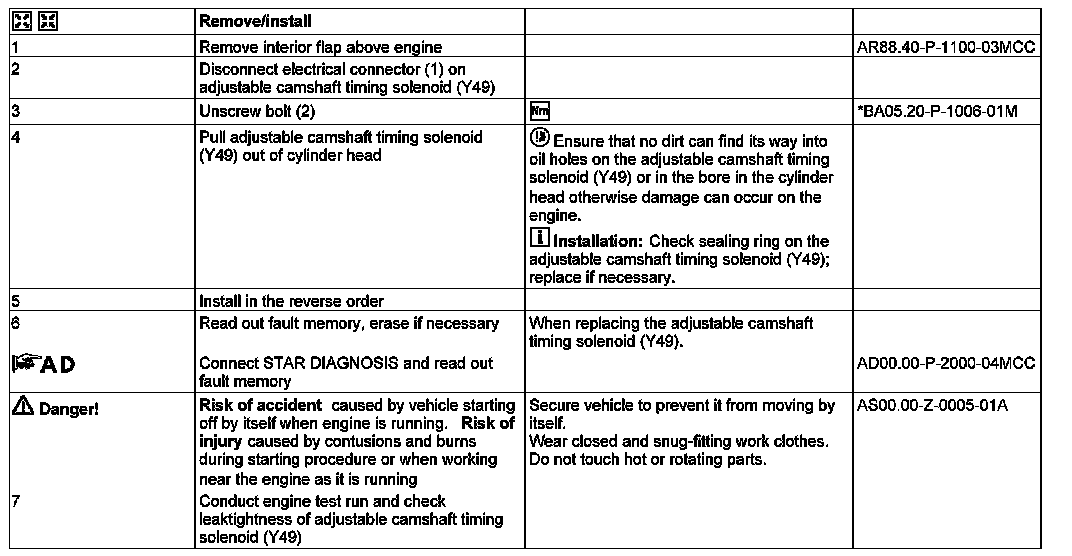

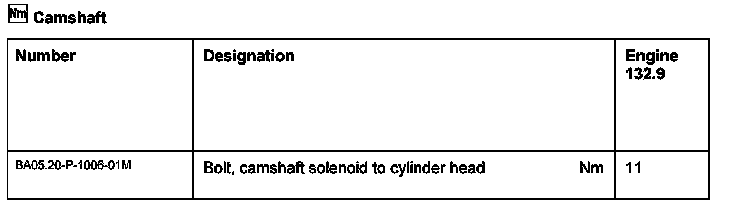

AR05.20-P-7295MCU Remove/Install Solenoid Camshaft

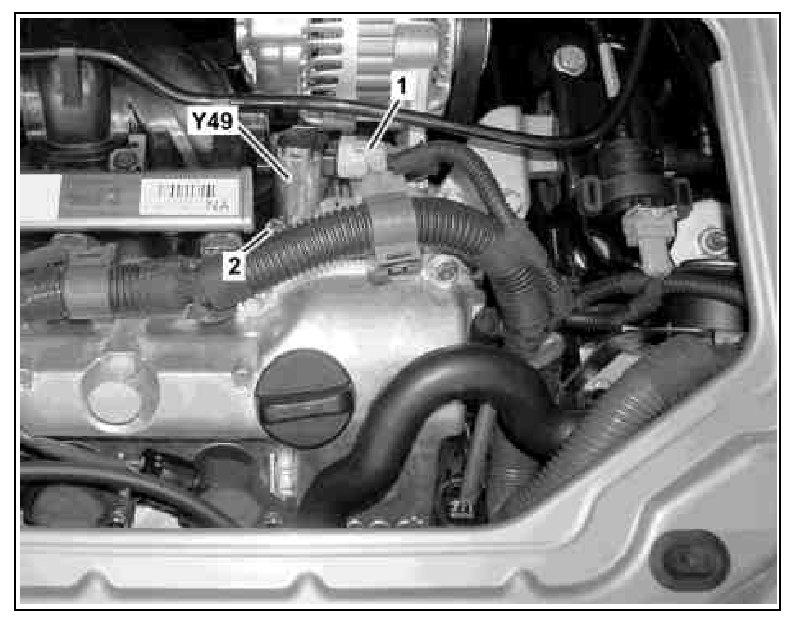

1 Electrical connector
2 Screw
Y49 Adjustable camshaft timing solenoid
