AH01.40-P-1000-01MCC Notes on Sealant Path For Timing Case Cover

AH01.40-P-1000-01MCC Notes On Sealant Path For Timing Case Cover

Application of sealant to timing case cover







The sealing surface on the timing case cover must be absolutely clean and grease-free. The sealant muss must be applied in the form of a bead with a height and width of about 2.0 ± 0.5 mm along the line shown with a gap of about 3 mm to the inner edge of the timing case cover.

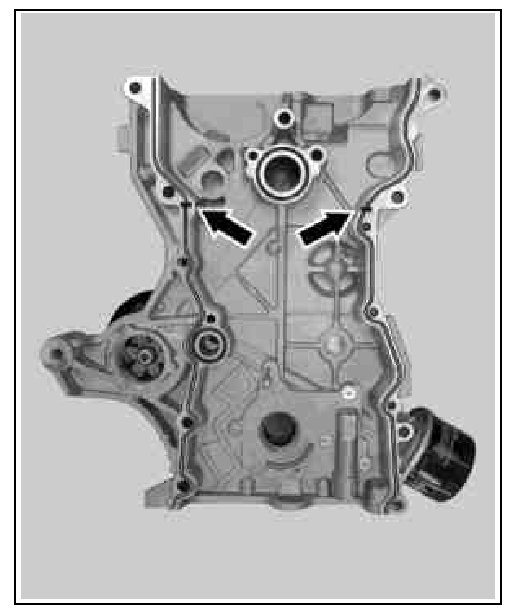

In crossover areas (arrows) of the cylinder crankcase to the cylinder head two additional beads of sealant must be applied with a length of 8 mm with the same height and width.

The timing case cover must be installed within 10 minutes. The applied sealant must not be spread. Use only the sealant listed in the Repair Products.
