AR05.10-P-8128MCU Remove/Install Slide Rail of Timing Chain

AR05.10-P-8128MCU Remove/Install Slide Rail Of Timing Chain

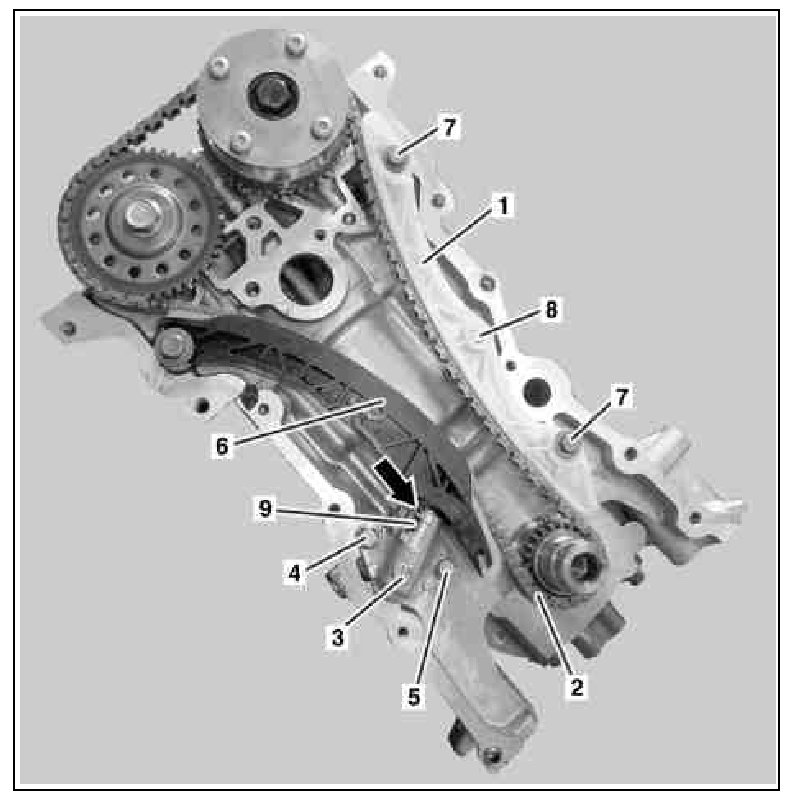

1 Slide rail
2 Timing chain
3 Chain tensioner
4 Bolt
5 Bolt
6 Tensioning rail
7 Bolt
8 Bearing pin
9 Ratchet
