AR01.00-P-0200MCU Inspect Cylinders With A Light Probe



AR01.00-P-0200MCU Inspect Cylinders With A Light Probe

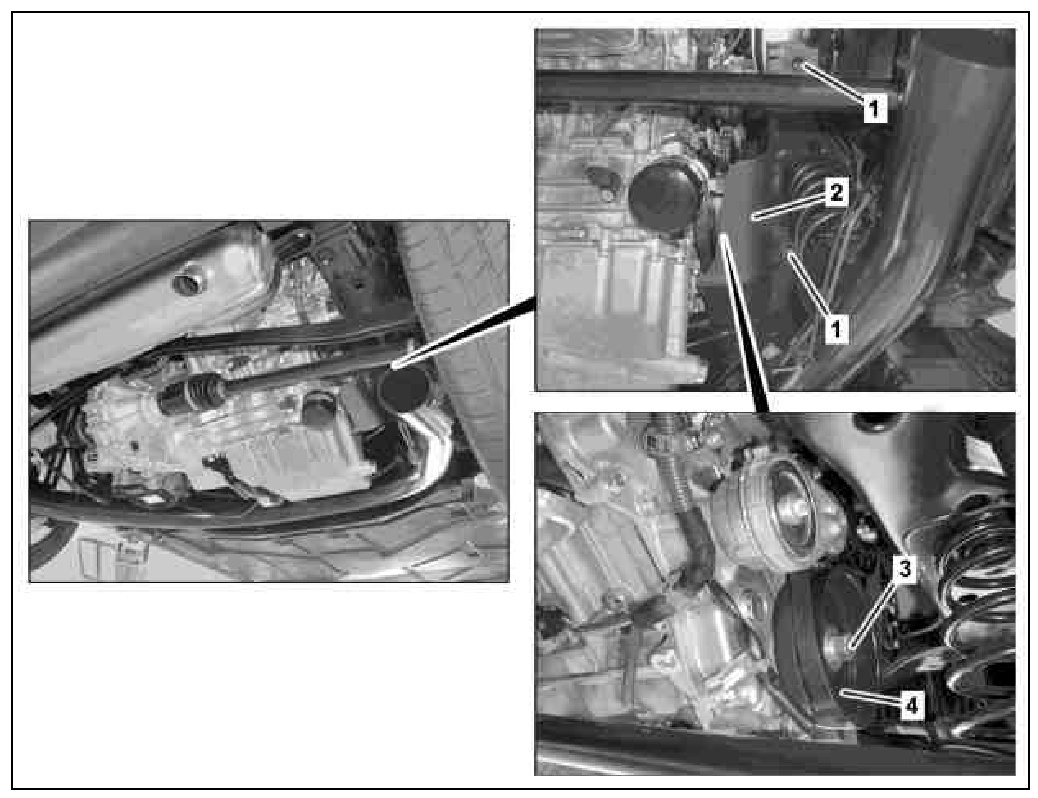

1 Expansion clip
2 Cover
3 Center bolt
4 Crankshaft belt pulley

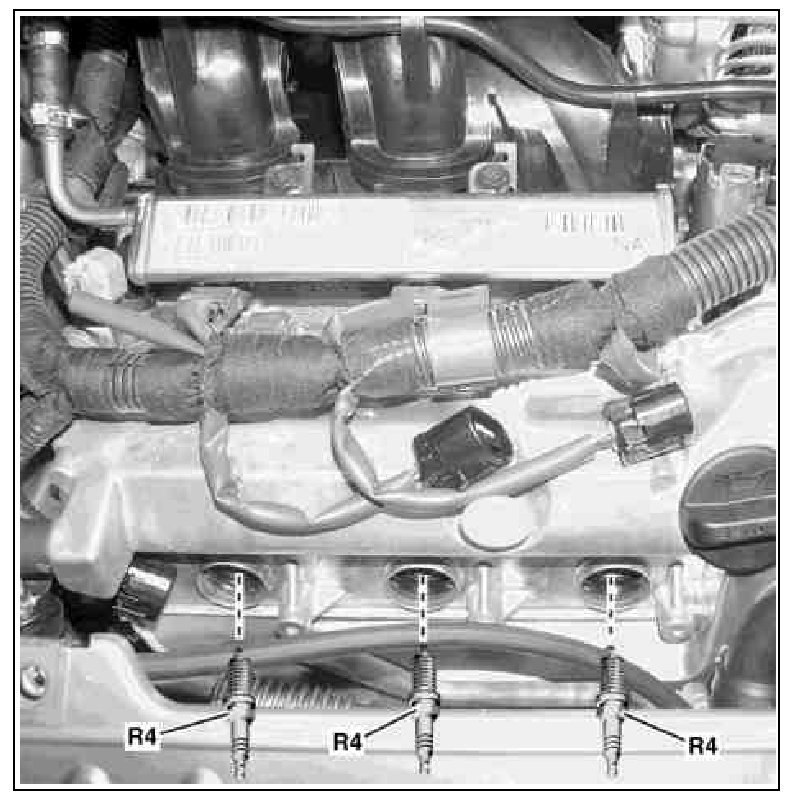

R4 Spark plugs
