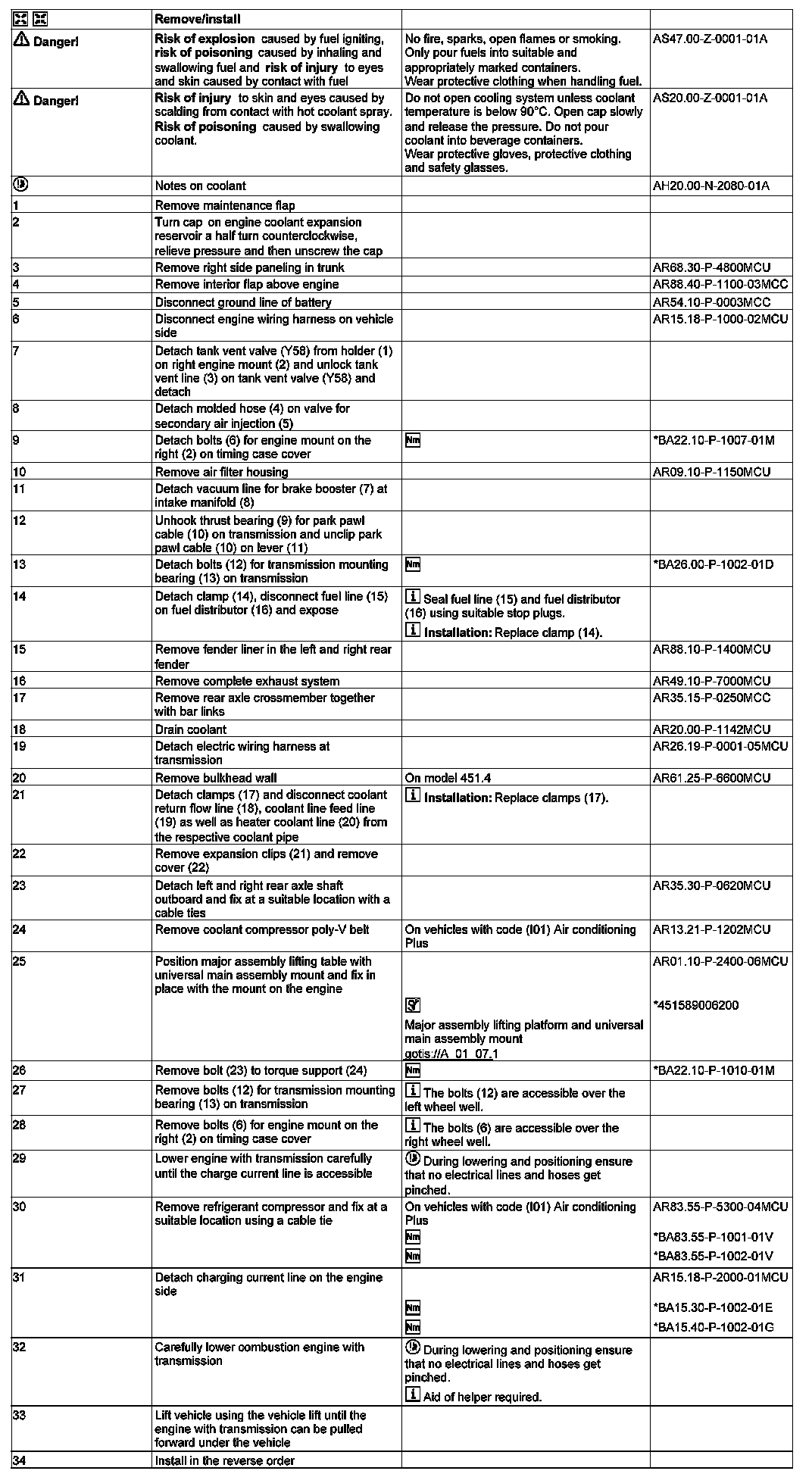

AR01.10-P-2401MCU Remove/Install Engine With Transmission

AR01.10-P-2401MCU Remove/Install Engine With Transmission







1 Bracket
2 Right engine mount
3 Tank vent line
4 Shaped hose
5 Valve for secondary air injection
6 Bolts
7 Brake booster vacuum line
8 Intake manifold
9 Thrust bearing
10 Park pawl cable
11 Lever
12 Bolts
13 Mount for transmission mounting
14 Hose clamp
15 Fuel pipe
16 Fuel distributor
Y58 Fuel tank vent valve

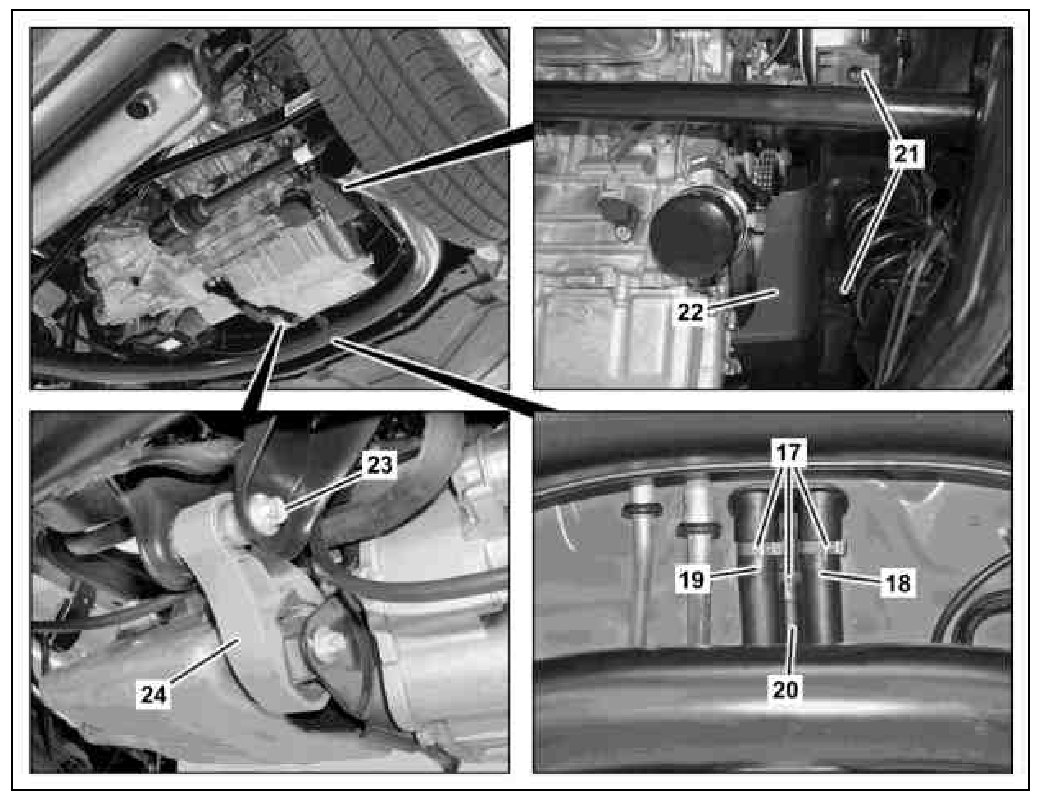

17 Hose clamps
18 Coolant return flow line
19 Coolant feed line
20 Coolant line heating system
21 Expansion clip
22 Cover
23 Bolt
24 Torque support





































451 589 00 62 00, Mount
