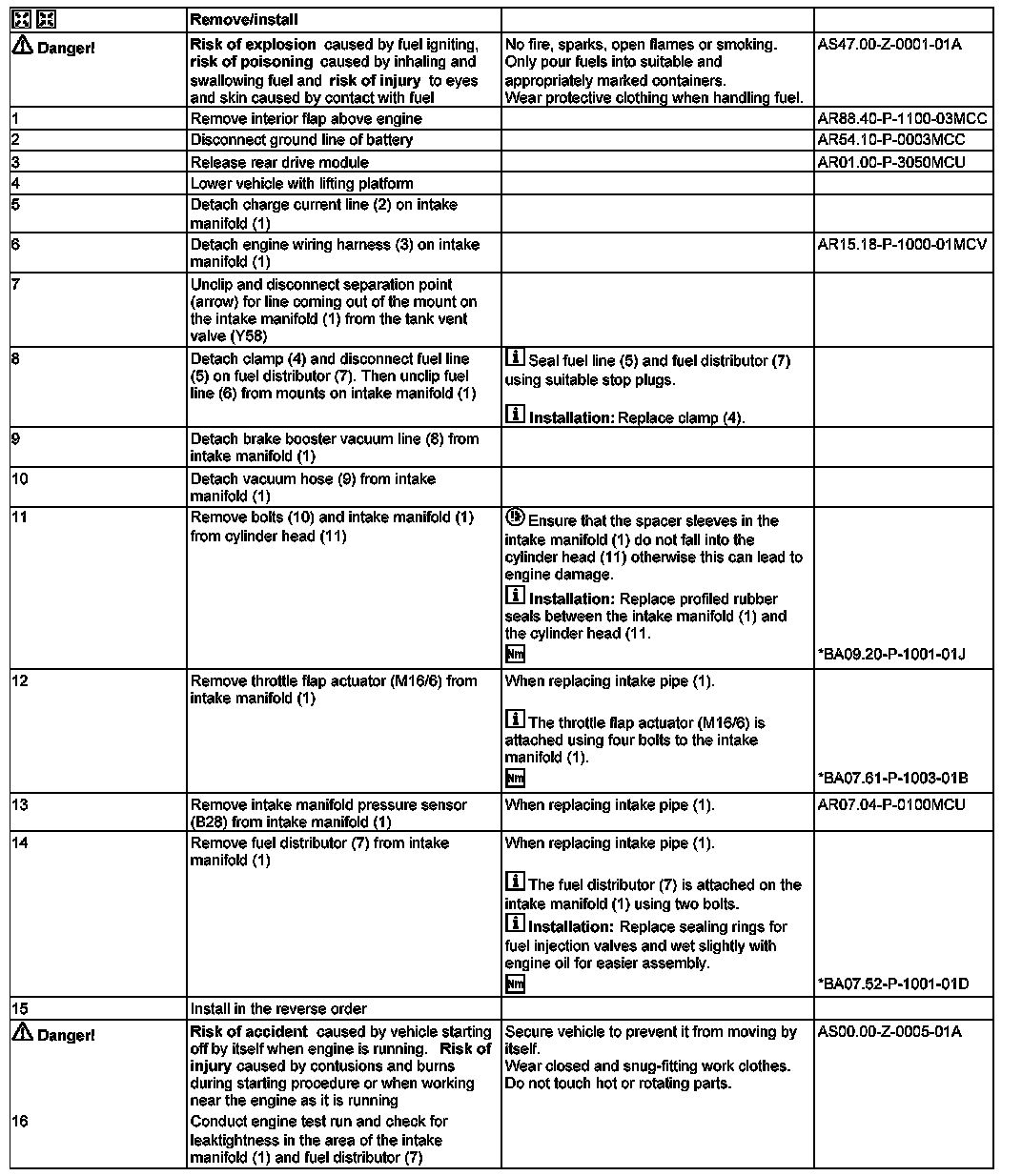

AR09.20-P-1310MCU Remove/Install Intake Manifold

AR09.20-P-1310MCU Remove/Install Intake Manifold

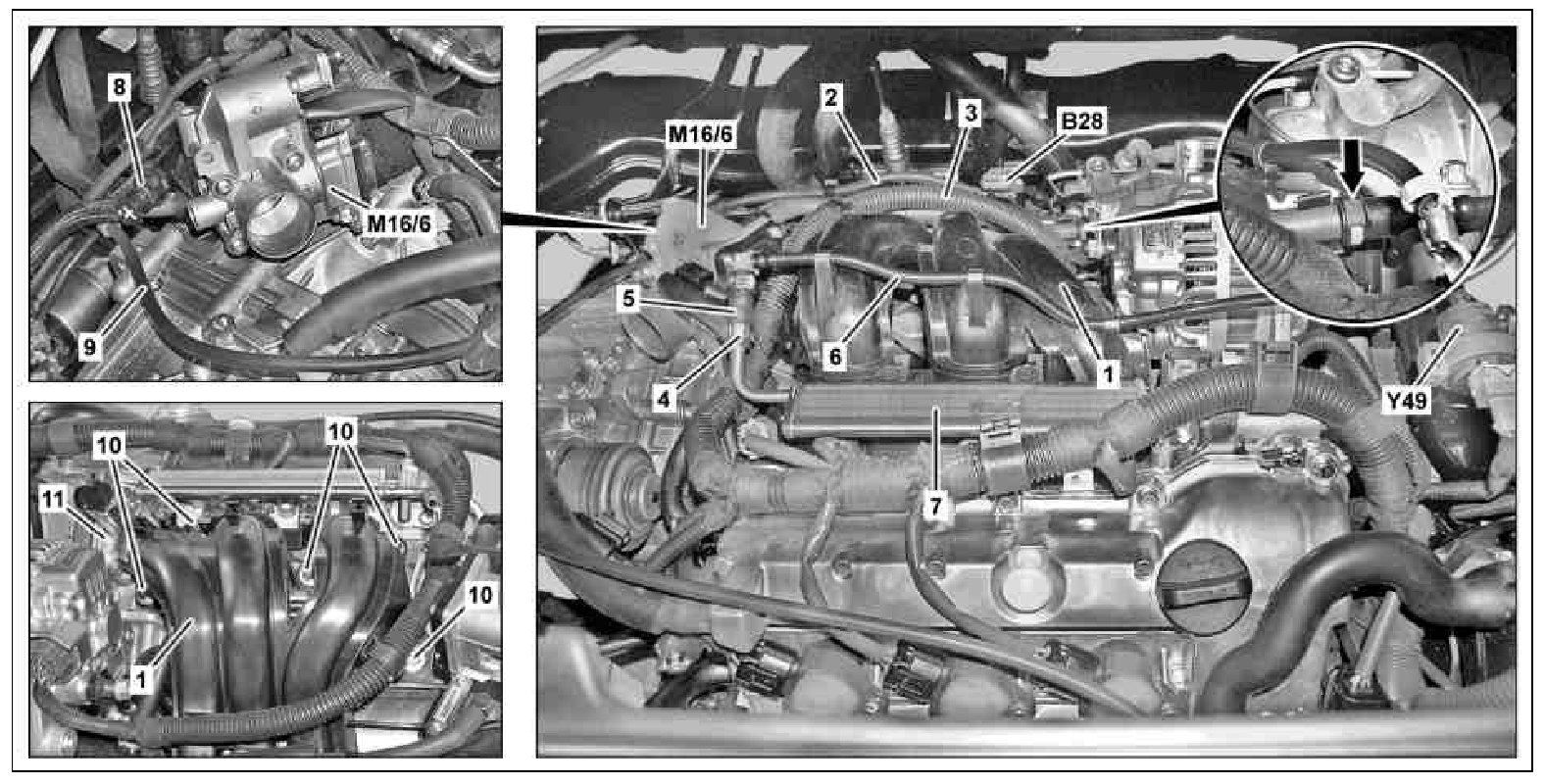

1 Intake manifold
2 Charge current line
3 Engine wiring harness
4 Hose clamp
5 Fuel pipe
6 Fuel pipe

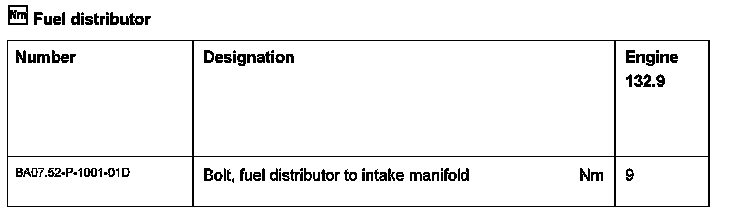

7 Fuel distributor
8 Brake booster vacuum line
9 Vacuum hose

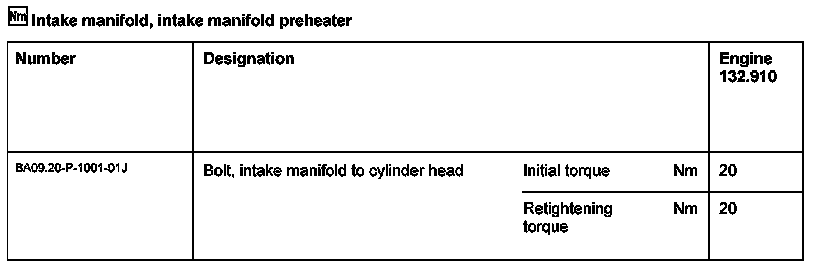

10 Bolts
11 Cylinder head
B28 Intake manifold pressure sensor

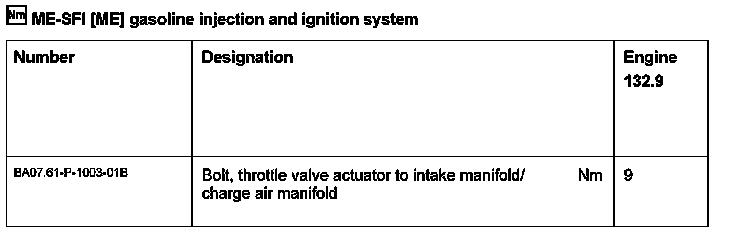

M16/6 Throttle valve actuator
Y58 Fuel tank vent valve
