Intake Manifold: Description and Operation

GF09.20-P-3110MCC Component Description For The Intake Air Resonator

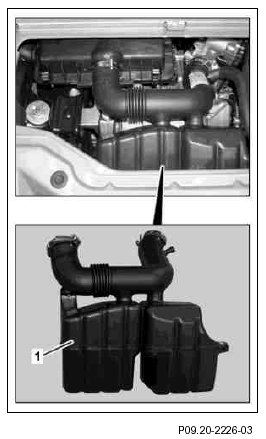

Shown on engine 132.910
1 Intake air resonator

Location
The intake air resonator is located on the upper side of the engine on the air line coming from the air filter.

Task
The intake air resonator serves as a pulsation damper. This reduces intake noise and minimizes the fluctuations which occur in the air flow during load changes.
