Removal and Replacement

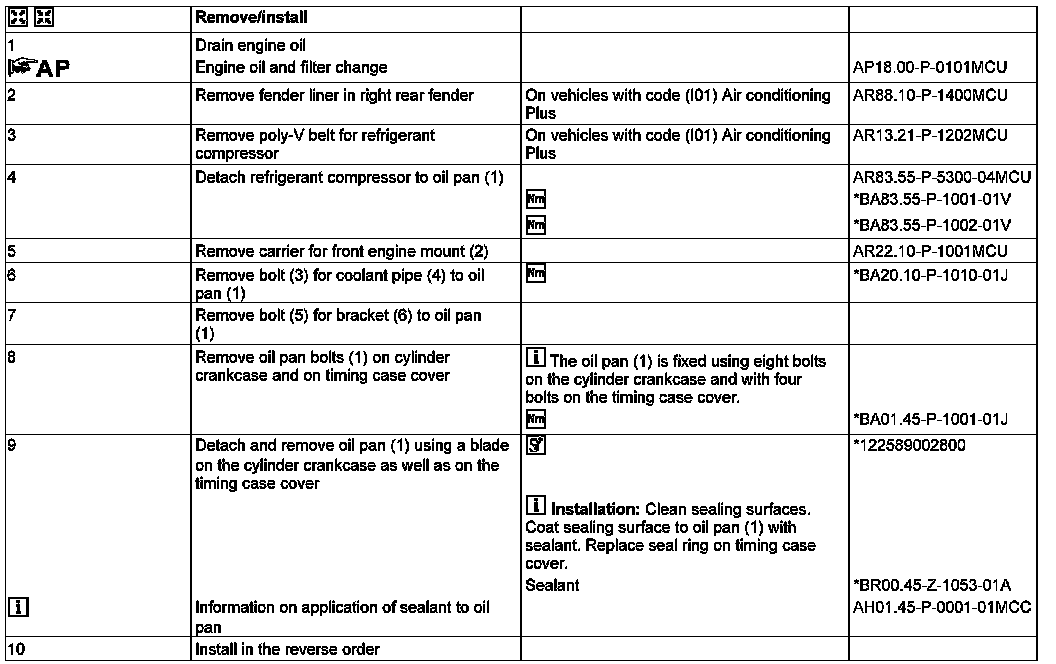

AR01.45-P-7500MCU Remove/Install Oil Pan

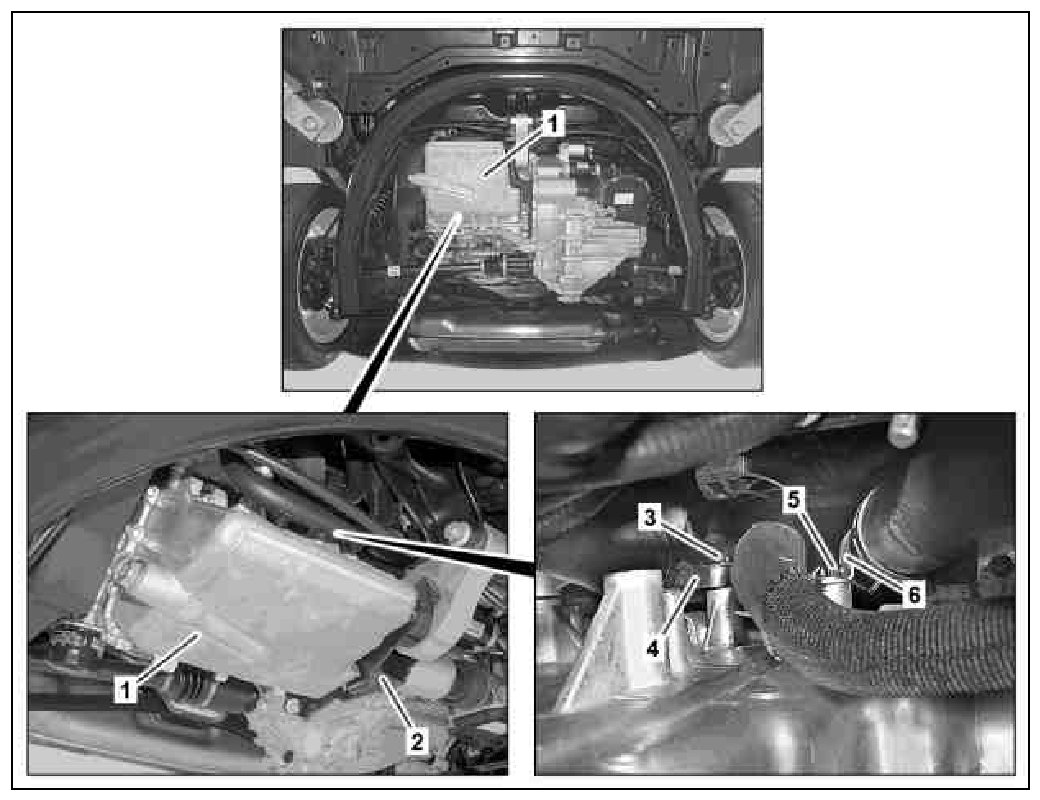

Shown on vehicle with Code (I01) AC Plus







1 Oil pan
2 Carrier for front engine mount
3 Bolt
4 Coolant pipe
5 Bolt
6 Bracket

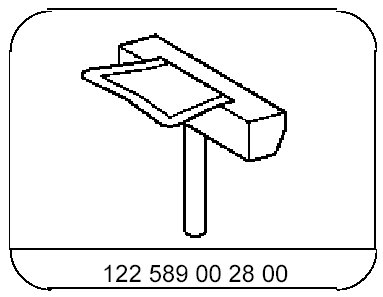

122 589 00 28 00, Knife
