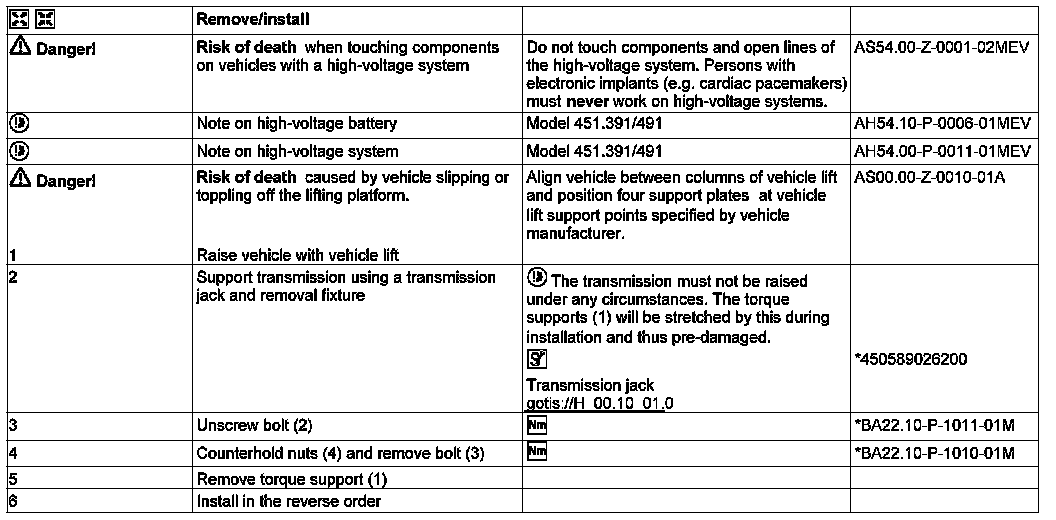

AR22.10-P-4330MCC Remove/Install Front Engine Mount





AR22.10-P-4330MCC Remove/Install Front Engine Mount

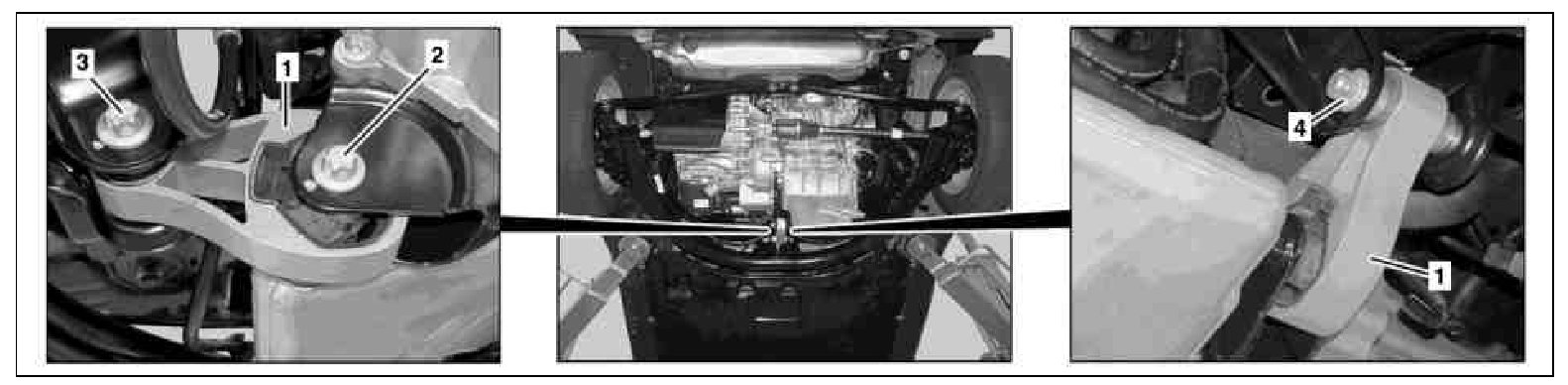

Shown on vehicle with engine 132.9







1 Torque support
2 Screw
3 Screw
4 Nut

















450 589 02 62 00, Removal assembly
