Valve Cover: Service and Repair

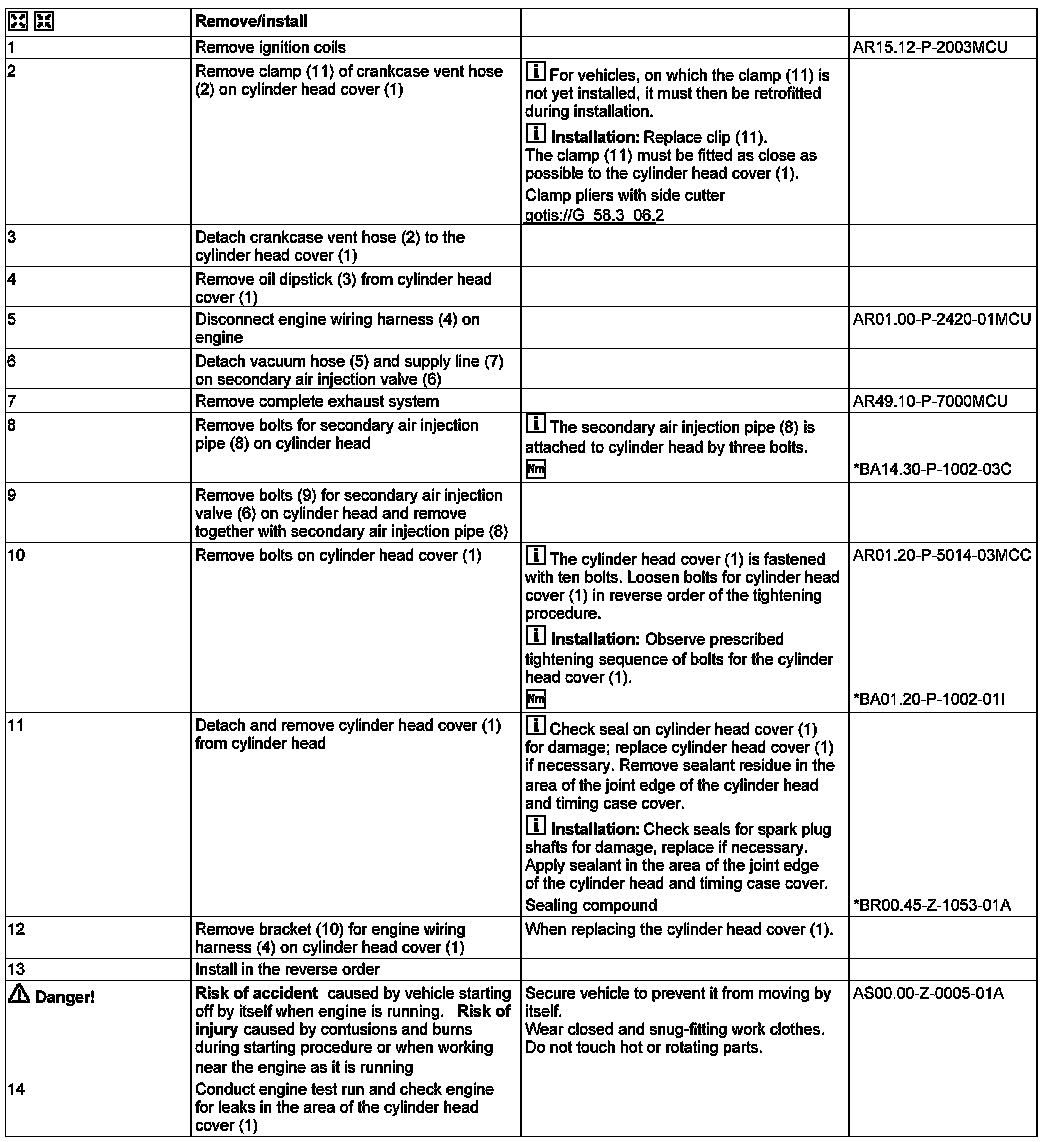

AR01.20-P-5014MCU Remove/Install Cylinder Head Cover

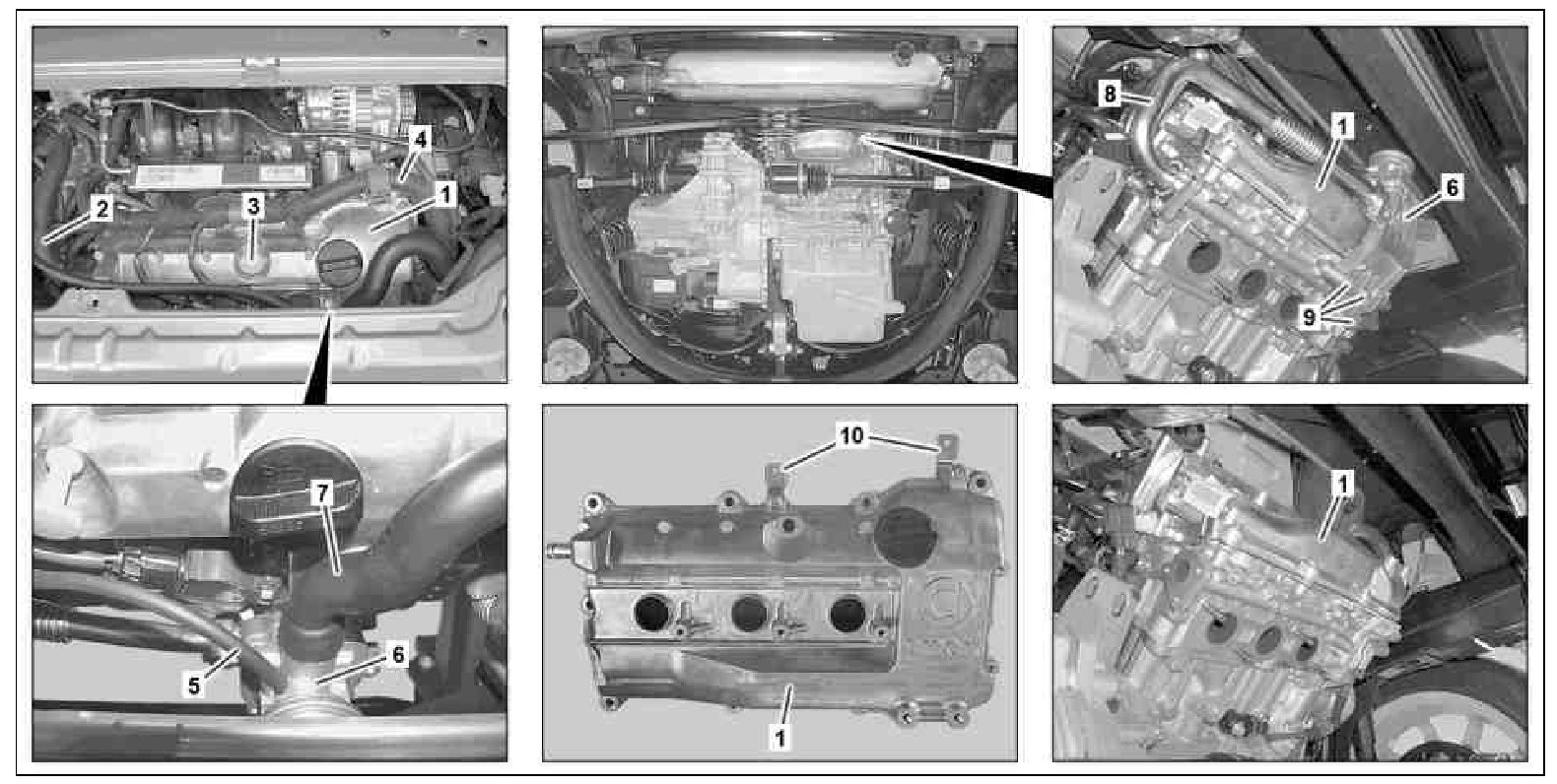

1 Cylinder head cover
2 Vent hose for crankcase
3 Dipstick
4 Engine wiring harness
5 Vacuum hose
6 Valve for secondary air injection
7 Supply line
8 Pipe for secondary air injection
9 Bolts
10 Bracket

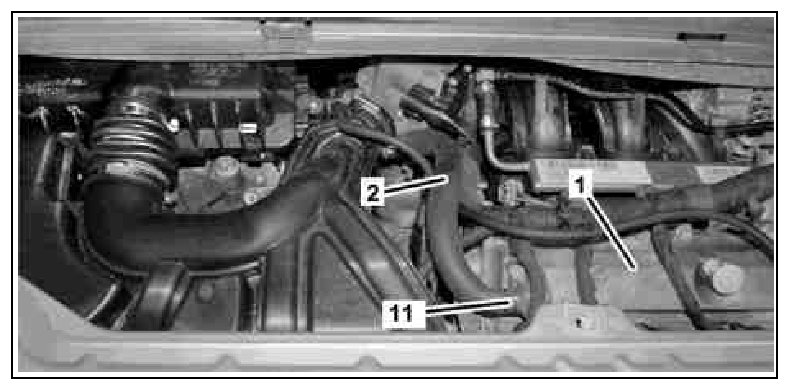

1 Cylinder head cover
2 Vent hose for crankcase
11 Clip
