AR01.30-P-5800MCU Remove/Install Cylinder Head

AR01.30-P-5800MCU Remove/Install Cylinder Head

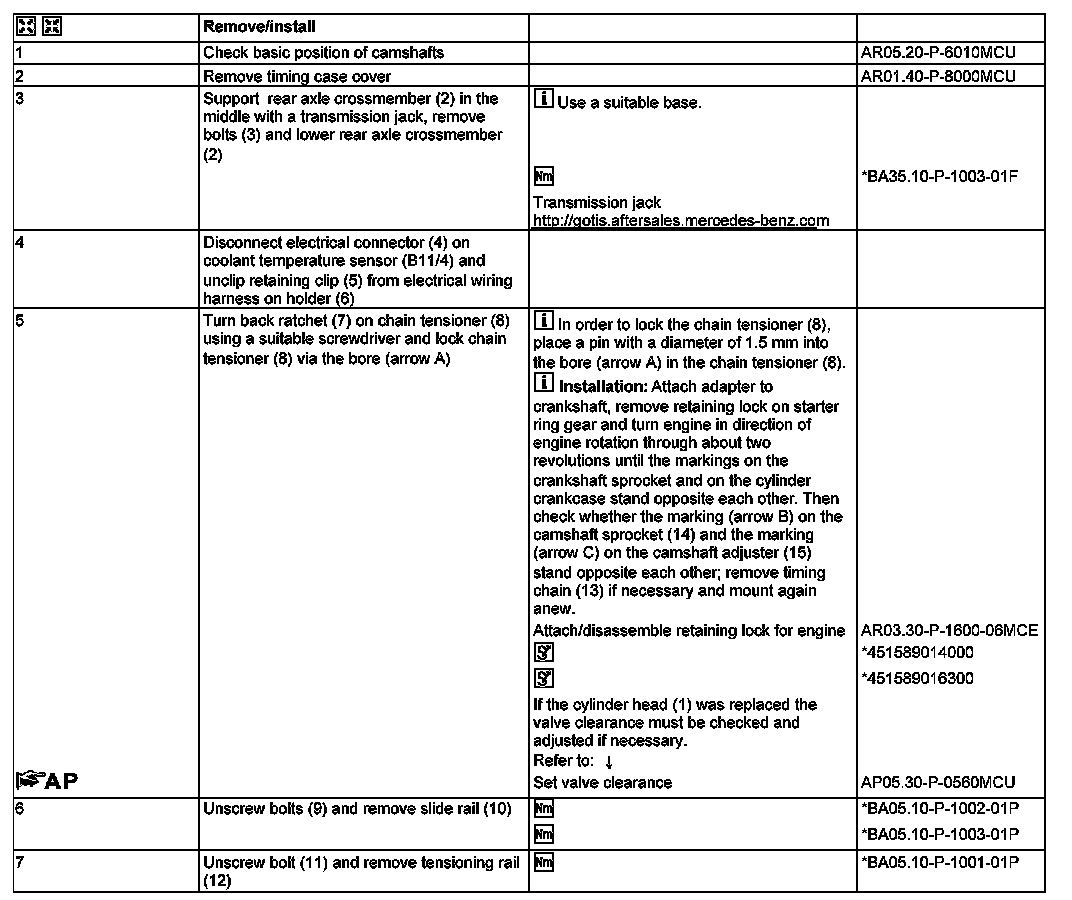

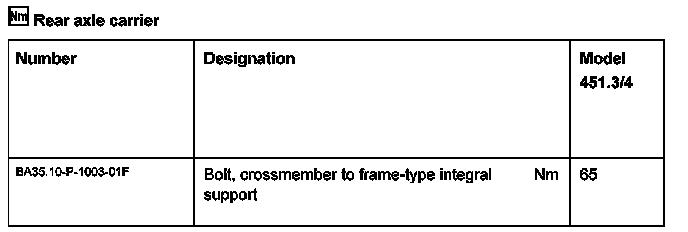

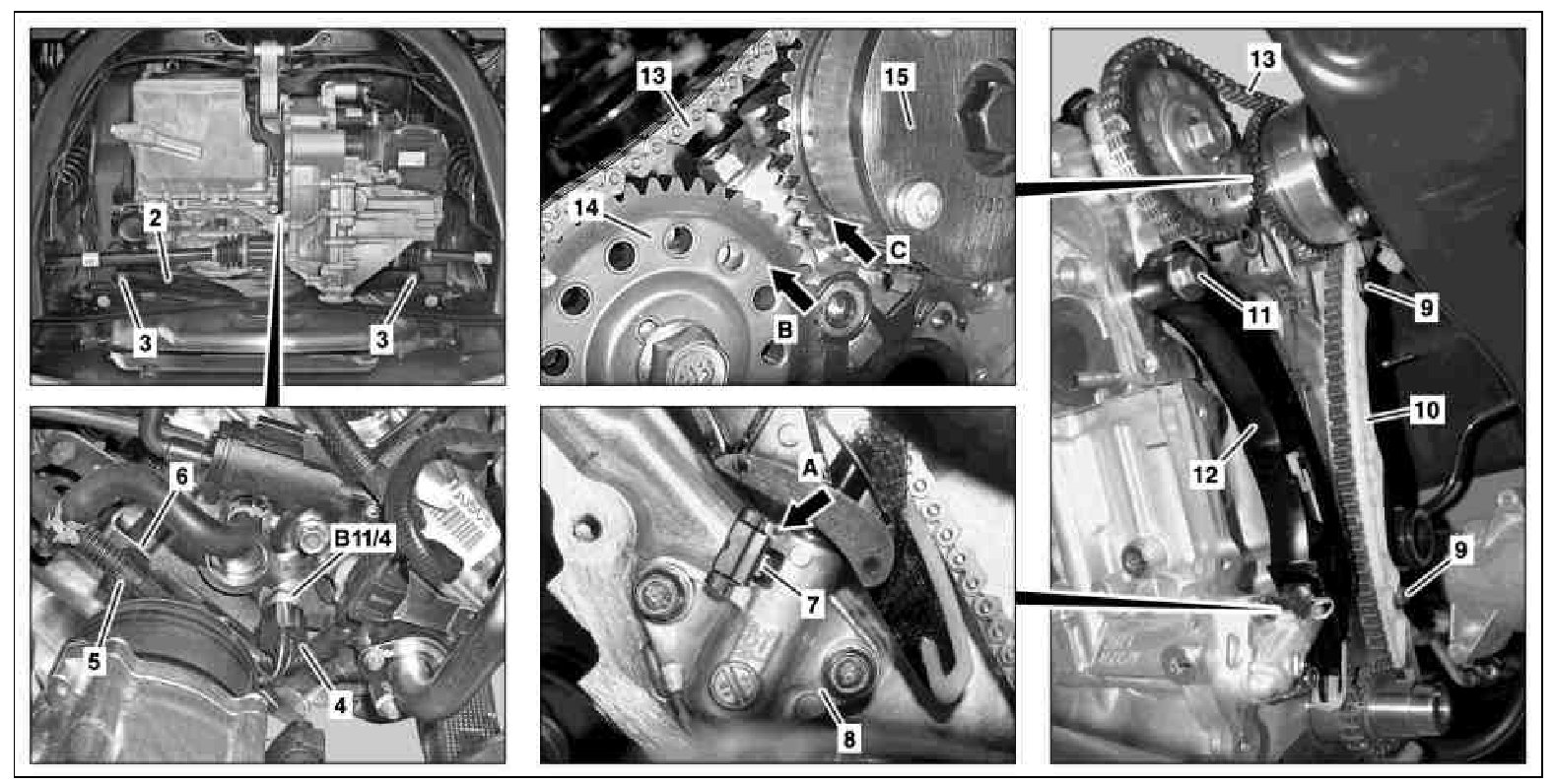

2 Rear axle crossmember
3 Screw
4 Electrical connector
5 Retaining clip
6 Bracket
7 Ratchet
8 Chain tensioner
9 Screw
10 Slide rail
11 Bolt
12 Tensioning rail

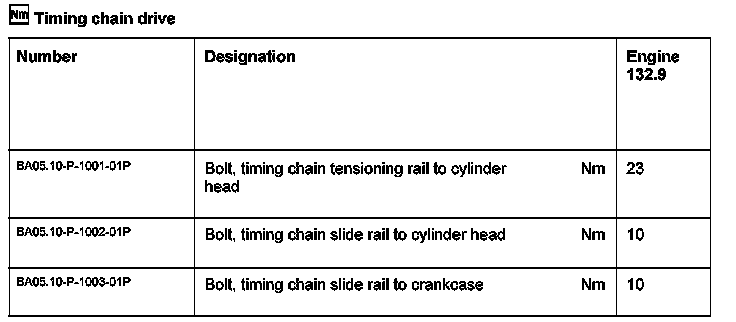

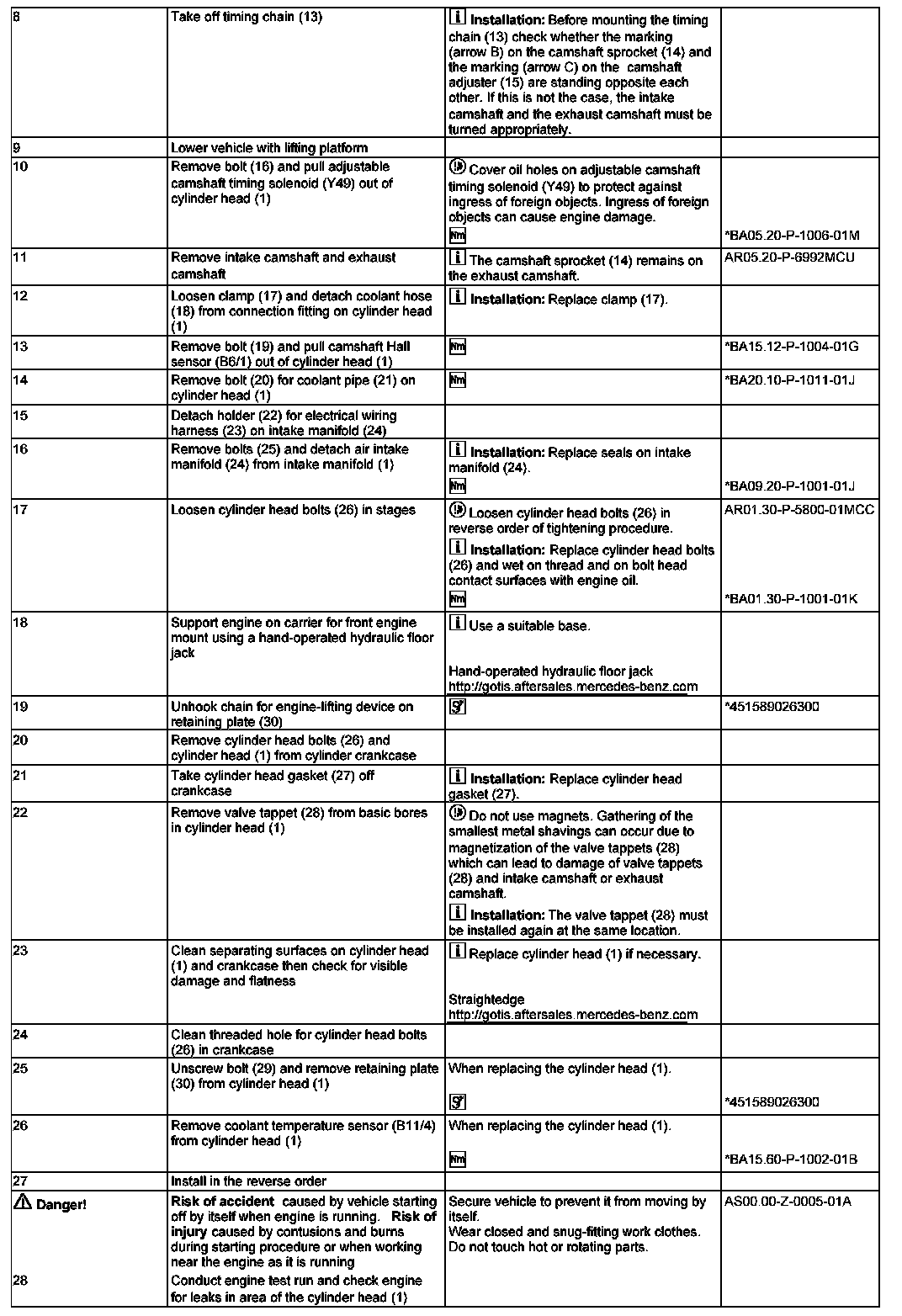

13 Timing chain
14 Camshaft sprocket
15 Camshaft adjuster

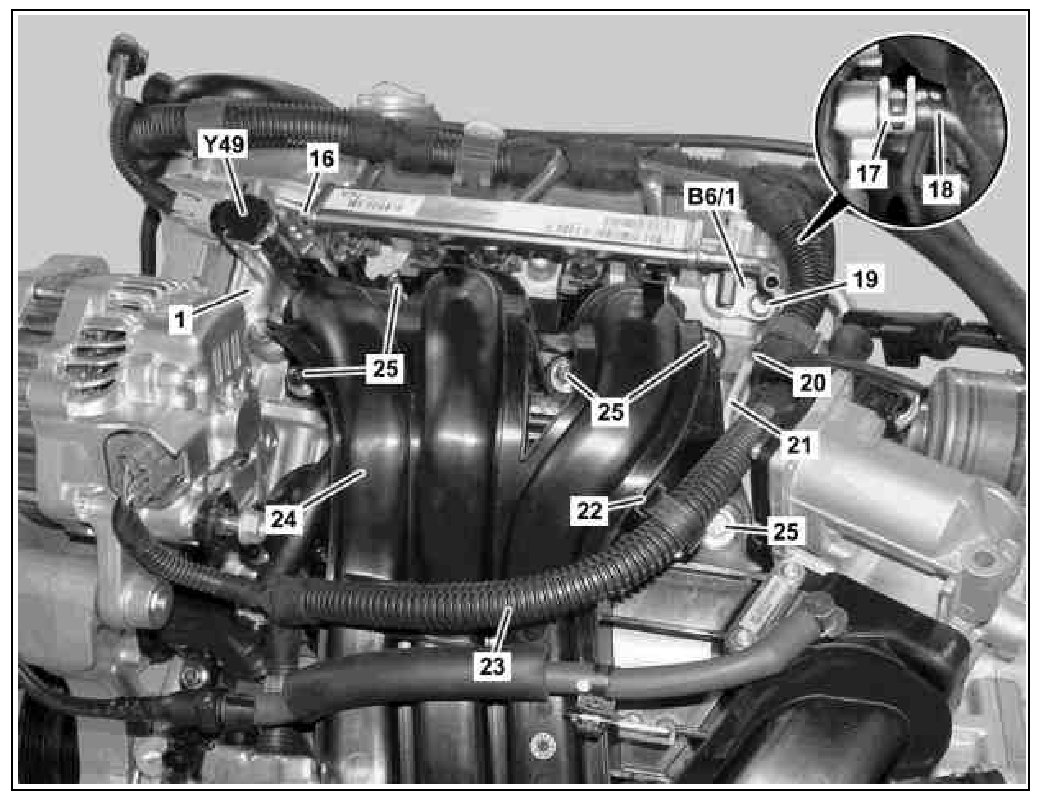

B11/4 Coolant temperature sensor

Illustrated on removed engine







1 Cylinder head
16 Bolt

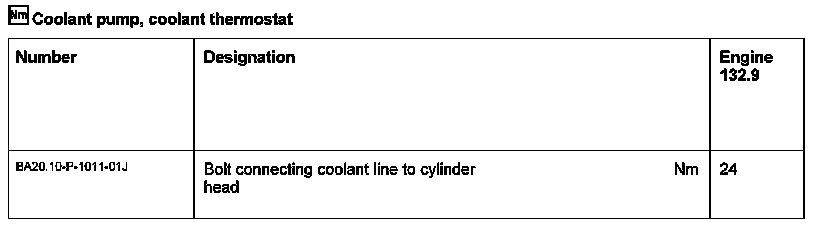

17 Hose clamp
18 Coolant hose
19 Bolt
20 Bolt
21 Coolant pipe
22 Bracket
23 Wiring harness
24 Intake manifold
25 Bolts

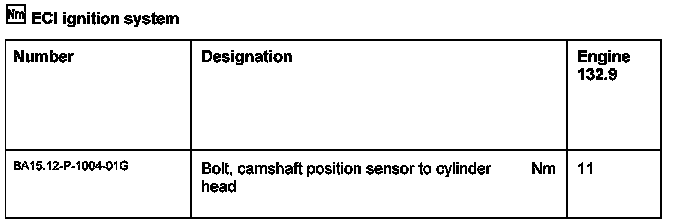

B6/1 Camshaft Hall sensor

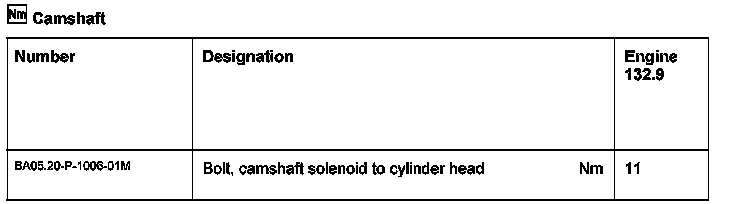

Y49 Adjustable camshaft timing solenoid

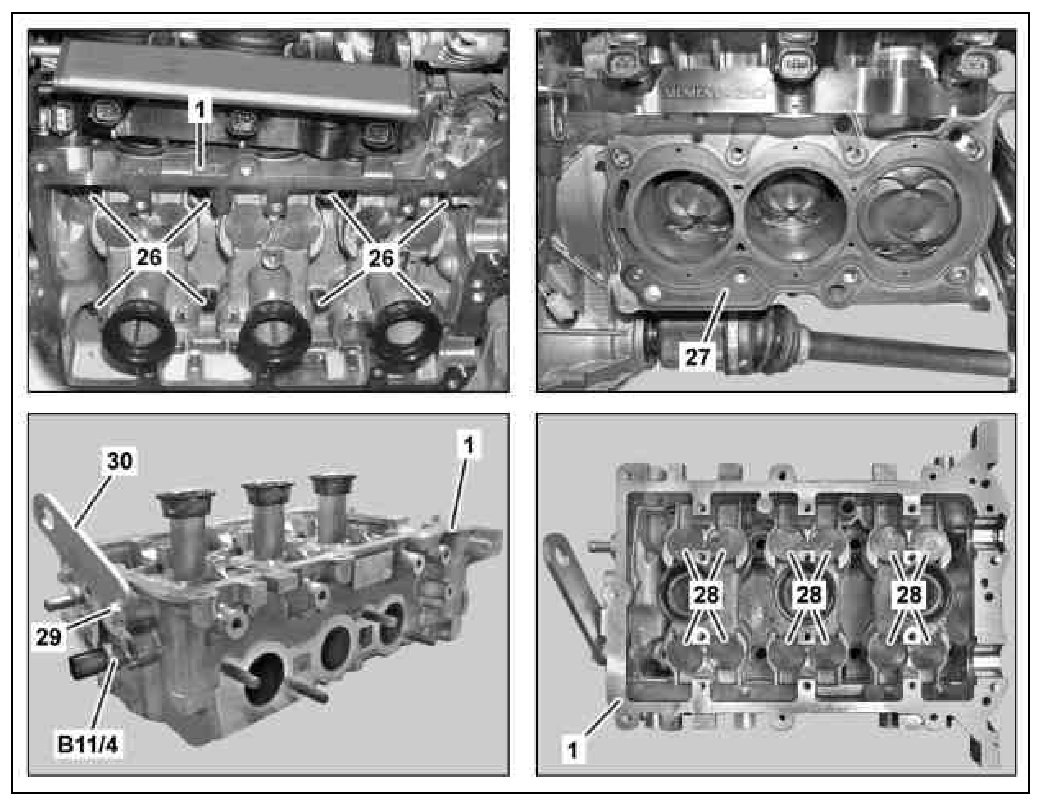

1 Cylinder head

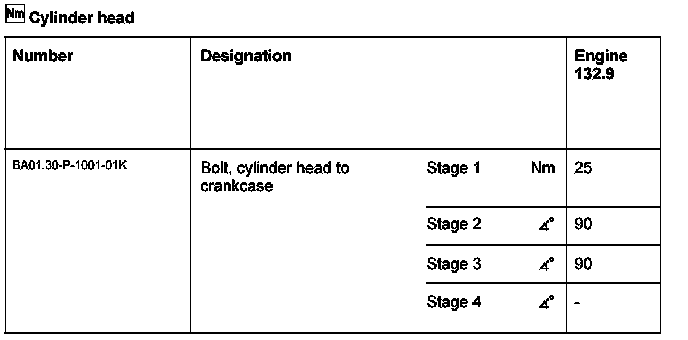

26 Cylinder head bolts
27 Cylinder head gasket
28 Valve tappet
29 Bolt
30 Retaining plate
B11/4 Coolant temperature sensor

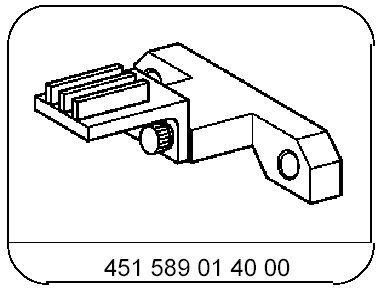

451 589 01 40 00, Retaining lock

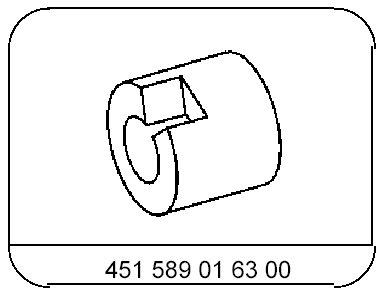

451 589 01 63 00, Adapter







451 589 02 63 00, Retaining plates
