AR03.10-P-7021MCC Remove/Install Piston

AR03.10-P-7021MCC Remove/Install Piston

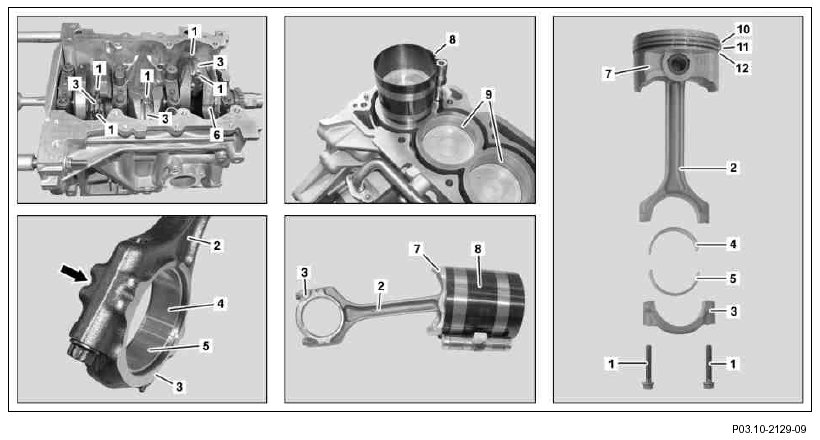

1 Screw
2 Connecting rod
3 Connecting rod bearing cap
4 Connecting rod bearing shell (above)
5 Connecting rod bearing shell (below)
6 Crankshaft
7 Piston
8 Tensioning strap
9 Cylinder bores
10 Plain compression ring
11 Taper-faced ring
12 Oil scraper ring















132 589 00 35 00, Assembly tool







450 589 00 14 00, Tensioning strap
