Camshaft: Testing and Inspection

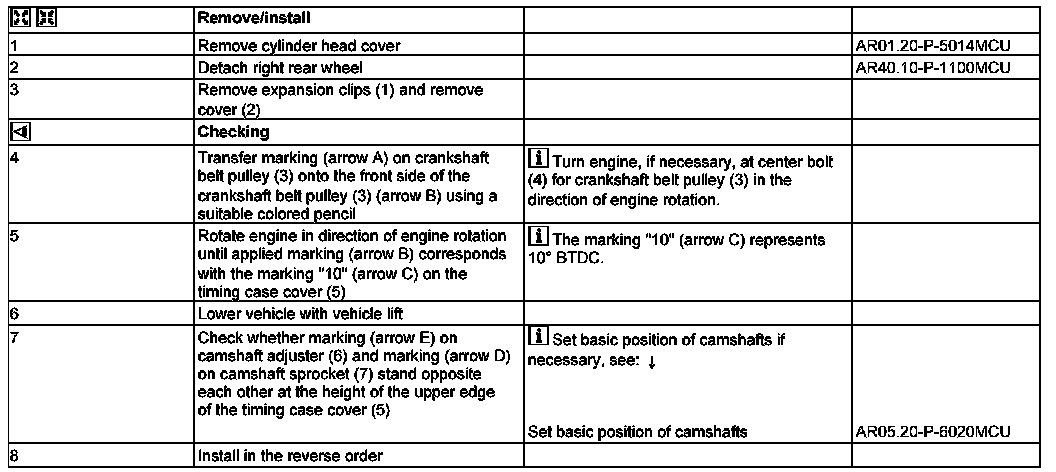

AR05.20-P-6010MCU Check Basic Position Of Camshafts







1 Expansion clip
2 Cover

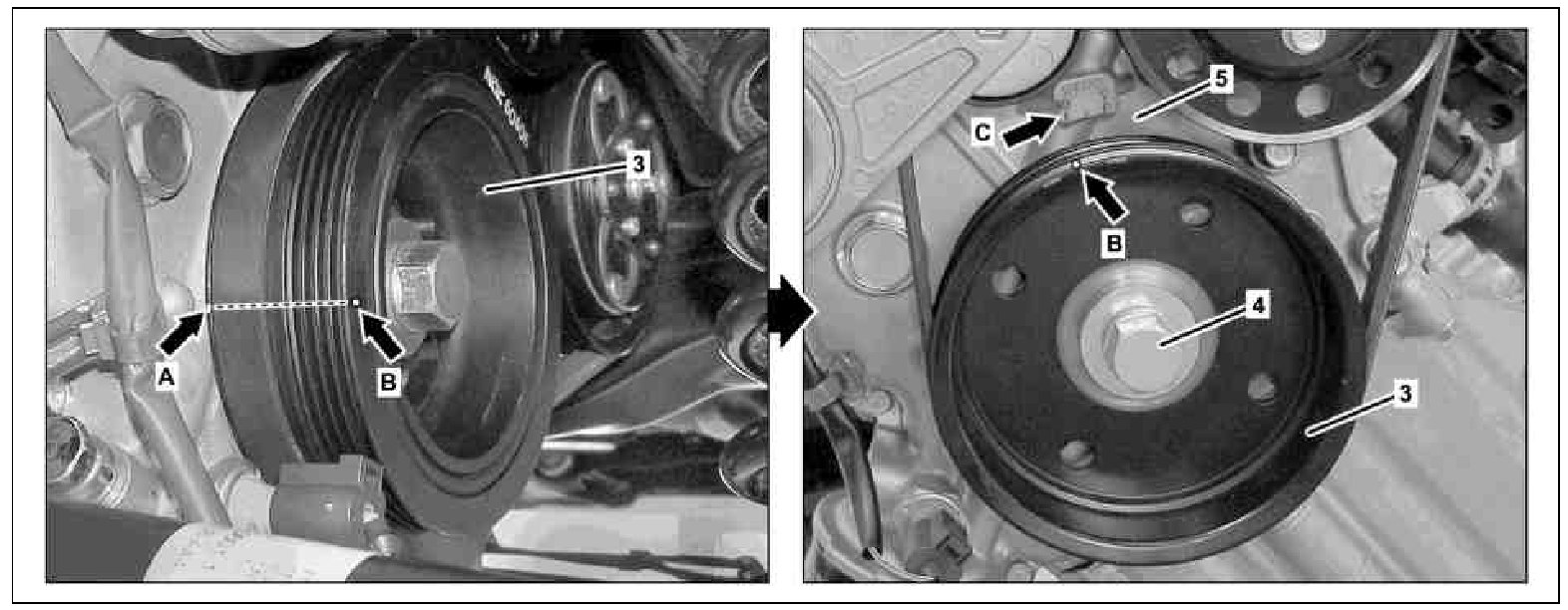

3 Crankshaft belt pulley
4 Center bolt
5 Timing case cover

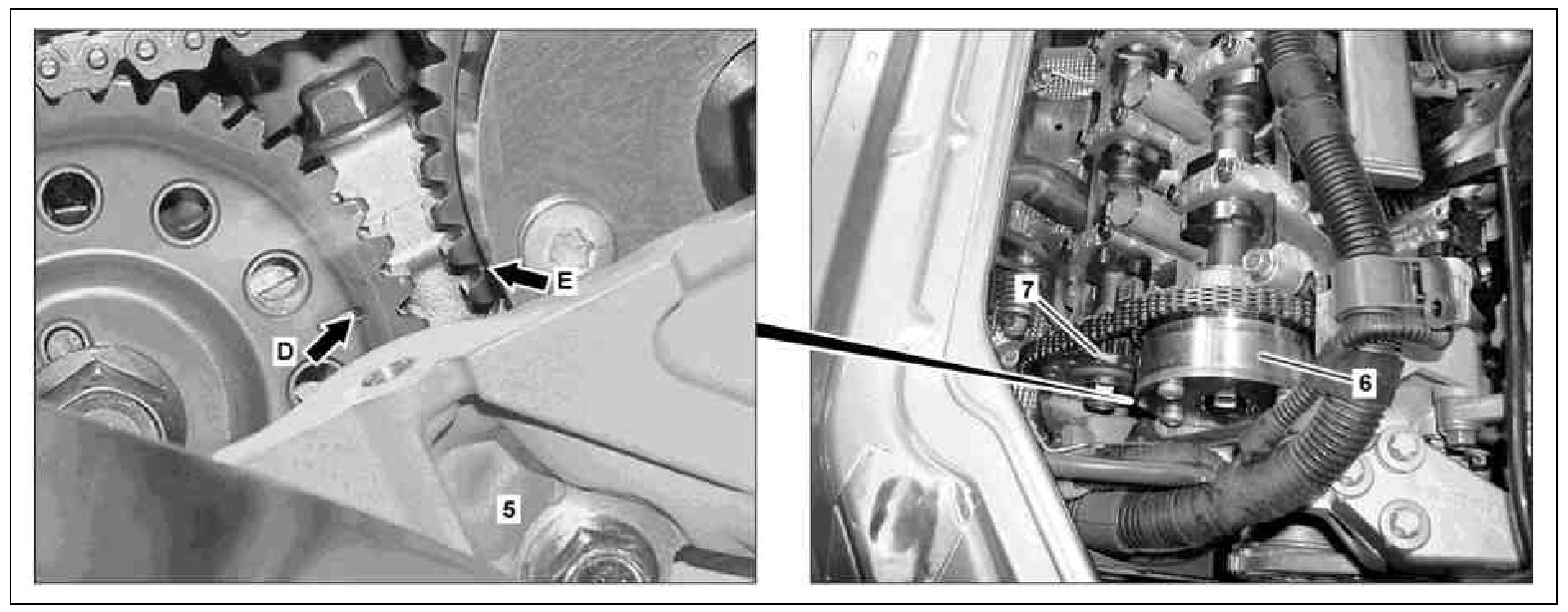

5 Timing case cover
6 Camshaft adjuster
7 Camshaft sprocket
