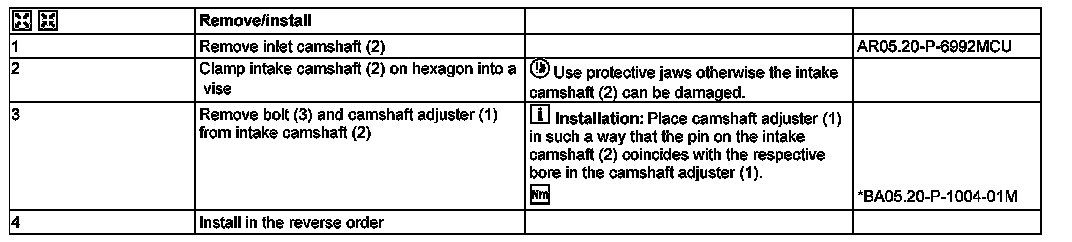

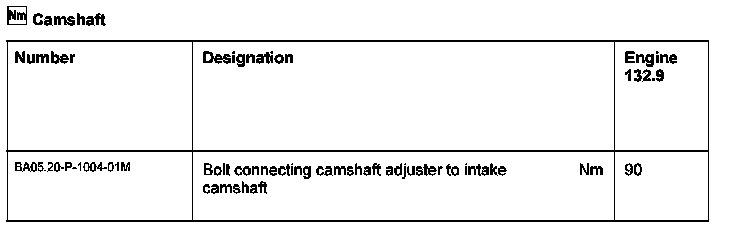

AR05.20-P-7201MCU Remove/Install Camshafts
AR05.20-P-7201MCU Remove/Install Camshafts
AR05.20-P-7201MCU Remove/Install Camshafts

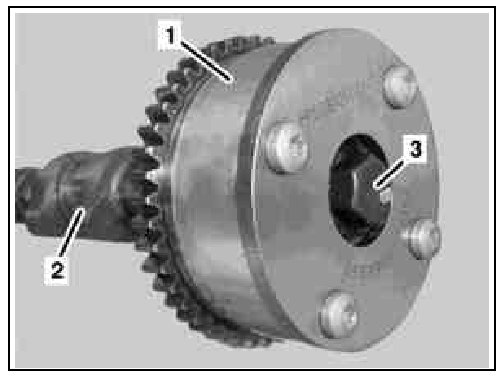

1
Camshaft adjuster
2
Intake
camshaft
3
Screw
