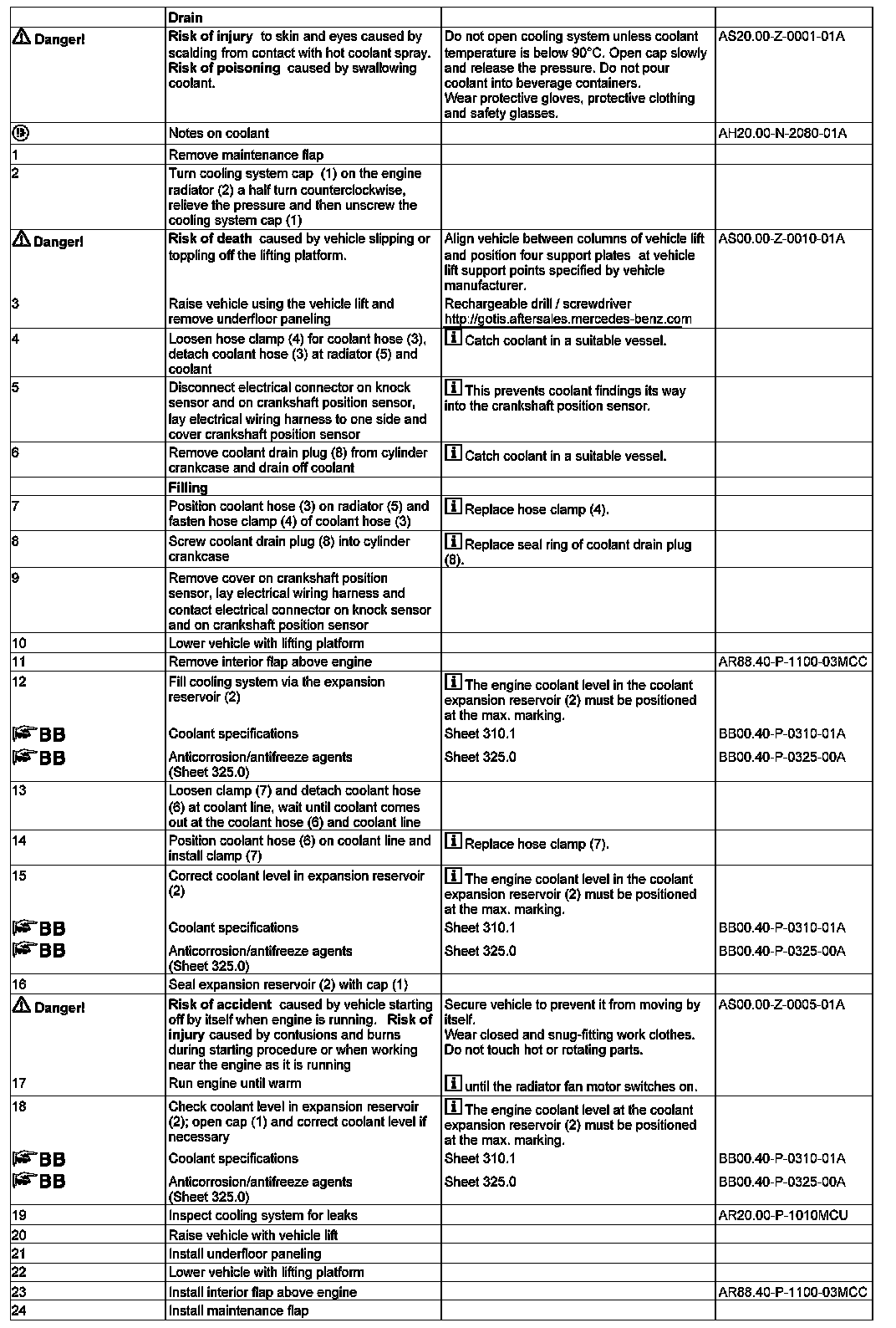

AR20.00-P-1142MCU Drain/Fill In Coolant

AR20.00-P-1142MCU Drain/Fill In Coolant

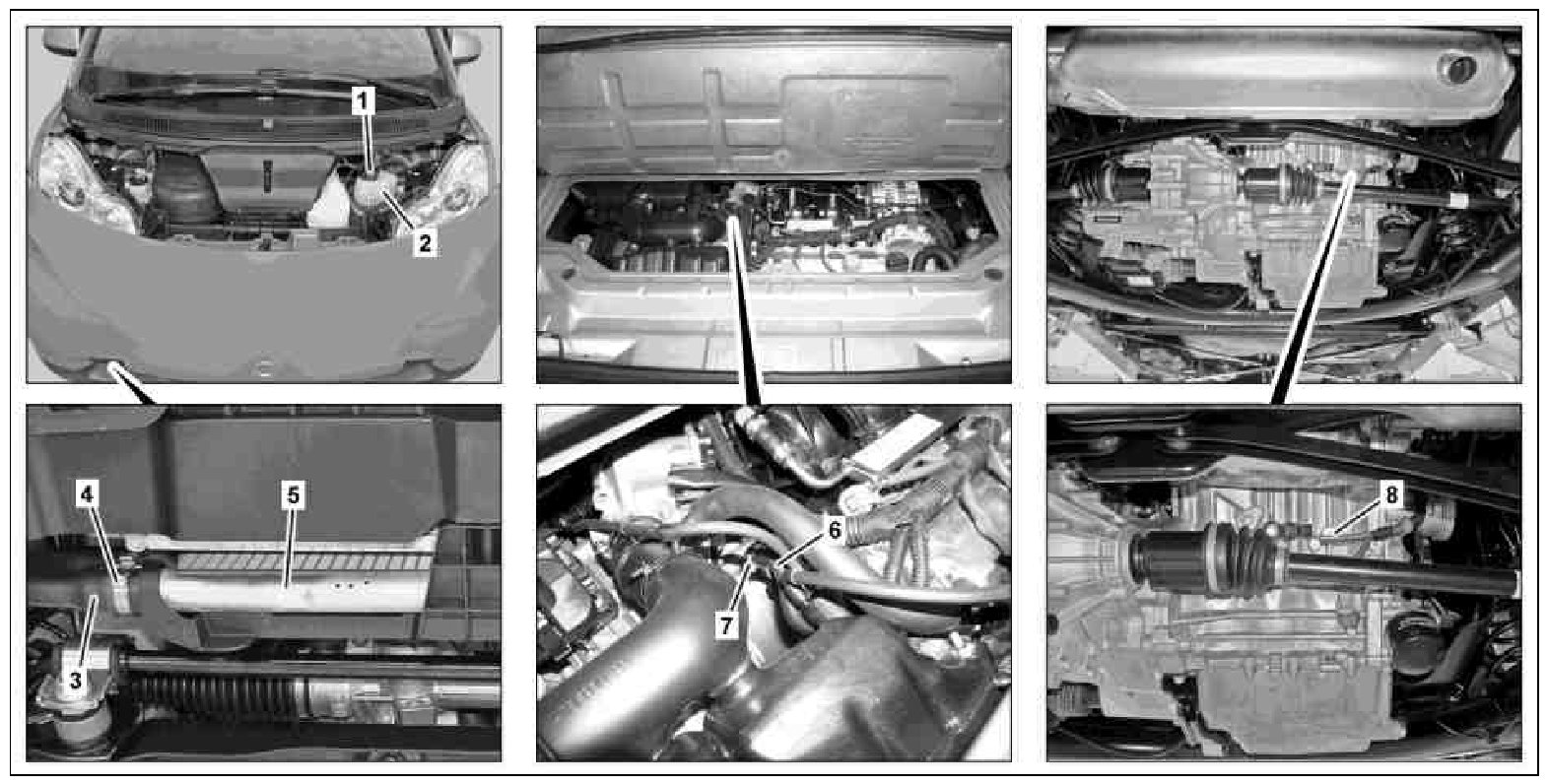

1 Cap
2 Expansion reservoir
3 Coolant hose
4 Hose clamp
5 Radiator
6 Coolant hose
7 Hose clamp
8 Coolant drain plug
