Coolant Reservoir: Service and Repair

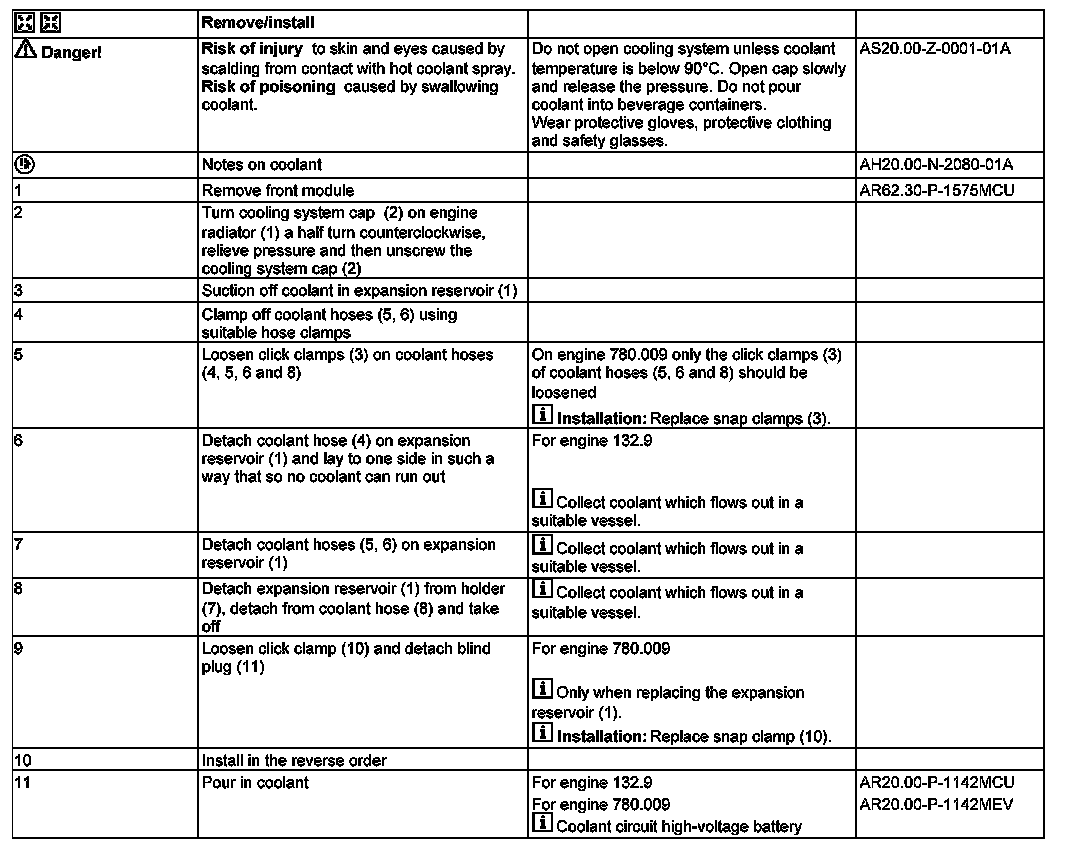

AR20.30-P-4950MCU Remove/Install Expansion Reservoir

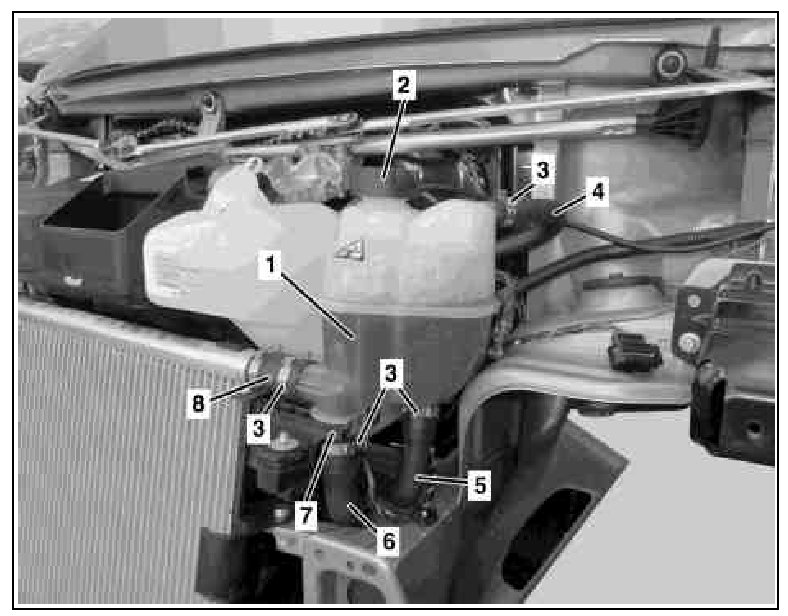

Shown on vehicle with engine 132







1 Expansion reservoir
2 Cap
3 Click clamps
4 Coolant hose (on engine 132.9)
5 Coolant hose
6 Coolant hose
7 Bracket
8 Coolant hose

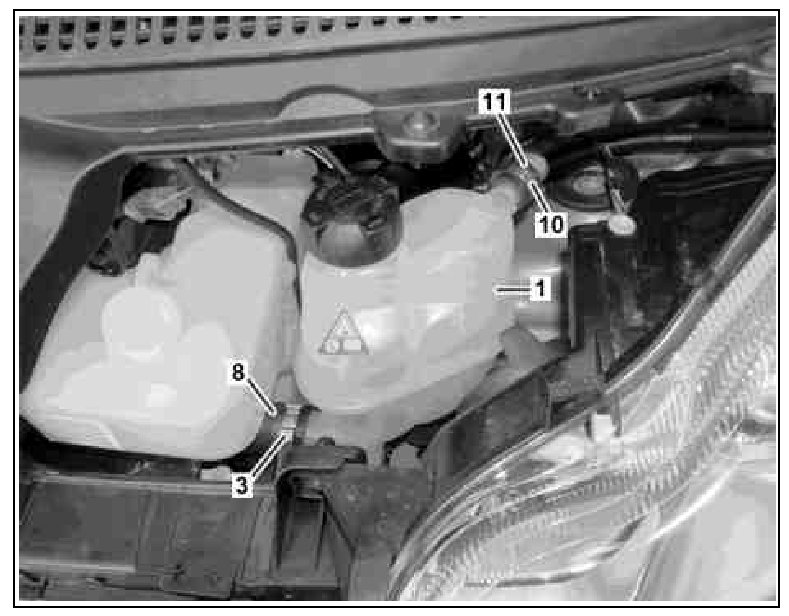

Vehicles with engine 780







1 Expansion reservoir
3 Snap clamp
8 Coolant hose
10 Snap clamp
11 Blind plug
