FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Smart
>>
2012
>>
ForTwo Coupe (451.331) L3-1.0L (132.910)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio, Stereo, and Compact Disc
>>
PE82.60-P-2000MCE Radio
PE82.60-P-2000MCE Radio
PE82.60-P-2000MCE Radio
451 82 Electrical Systems - Body

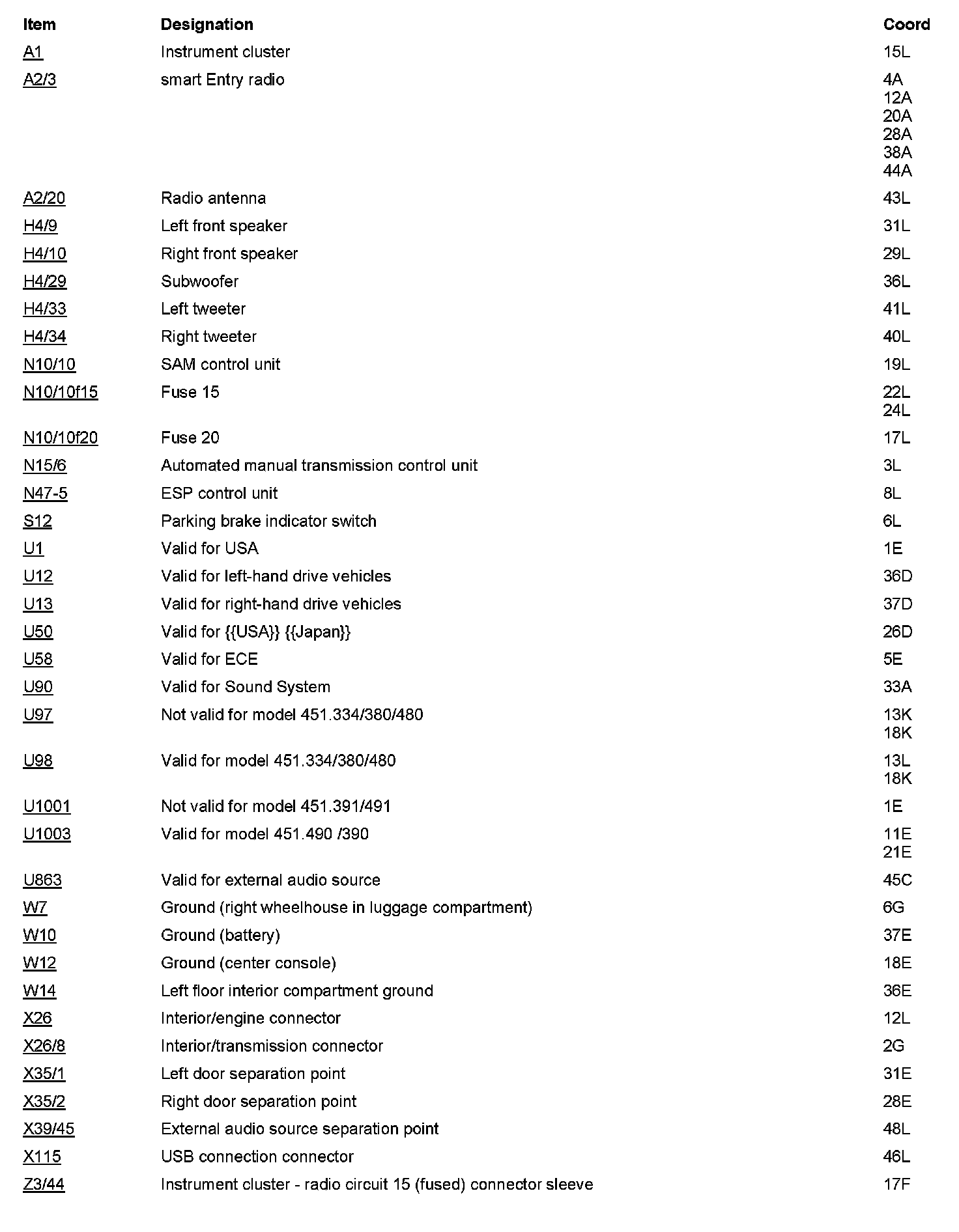

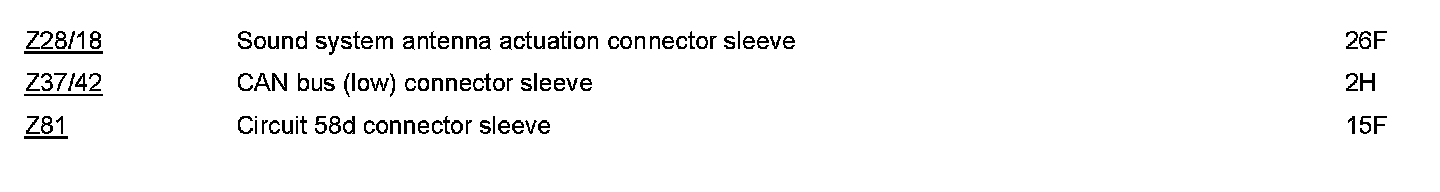

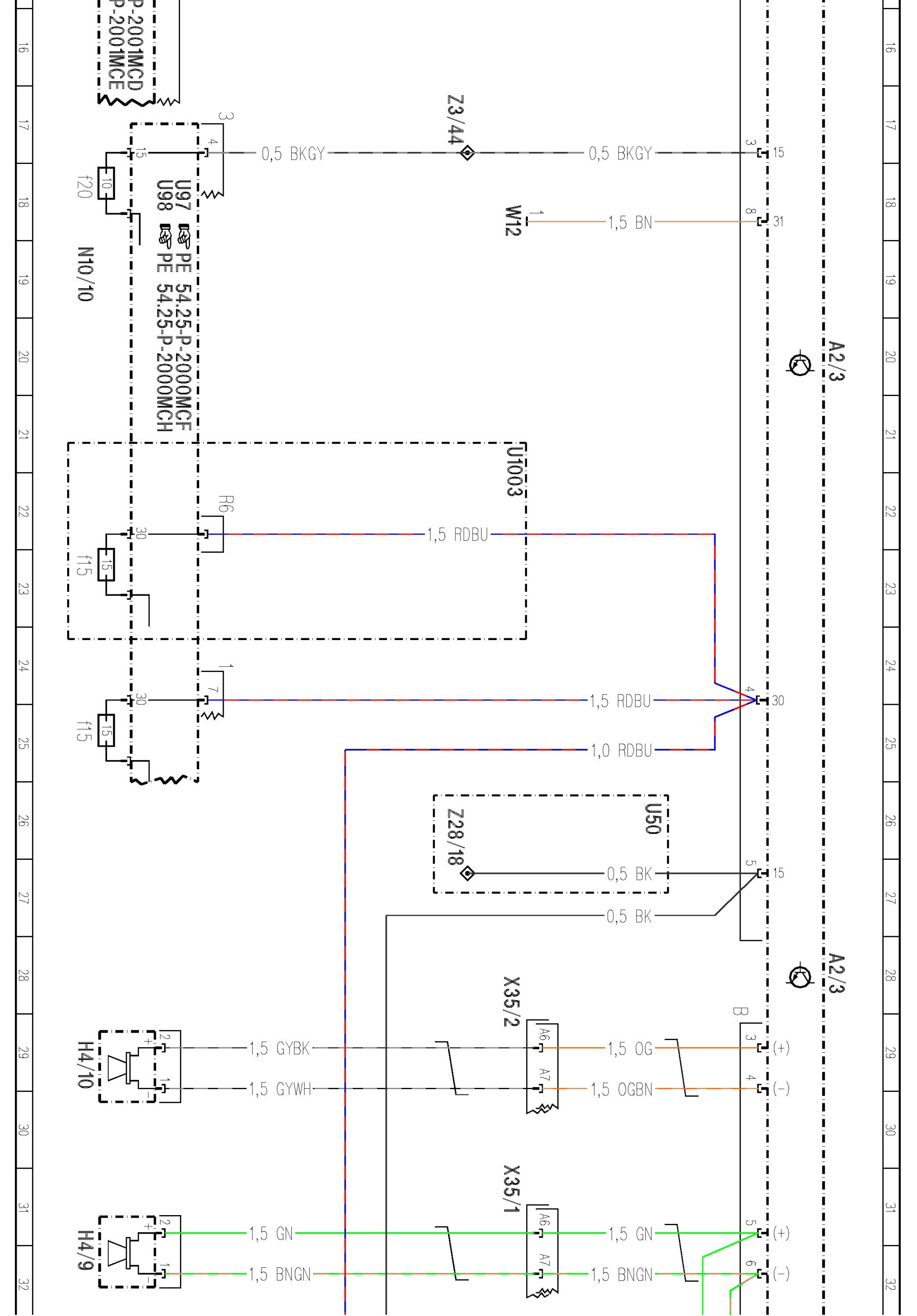

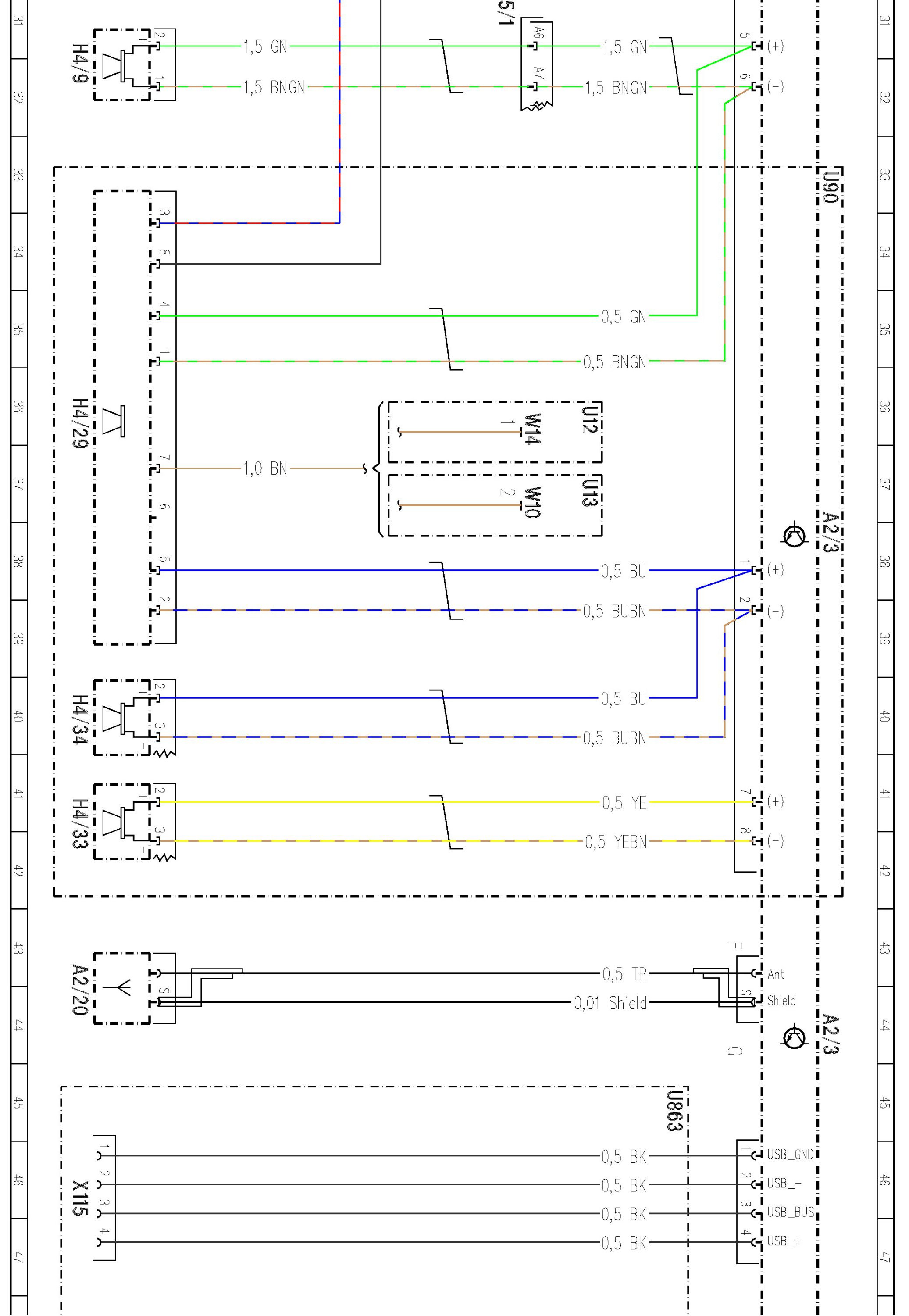

MODEL 451 as of 08/31/10 Entry radio
