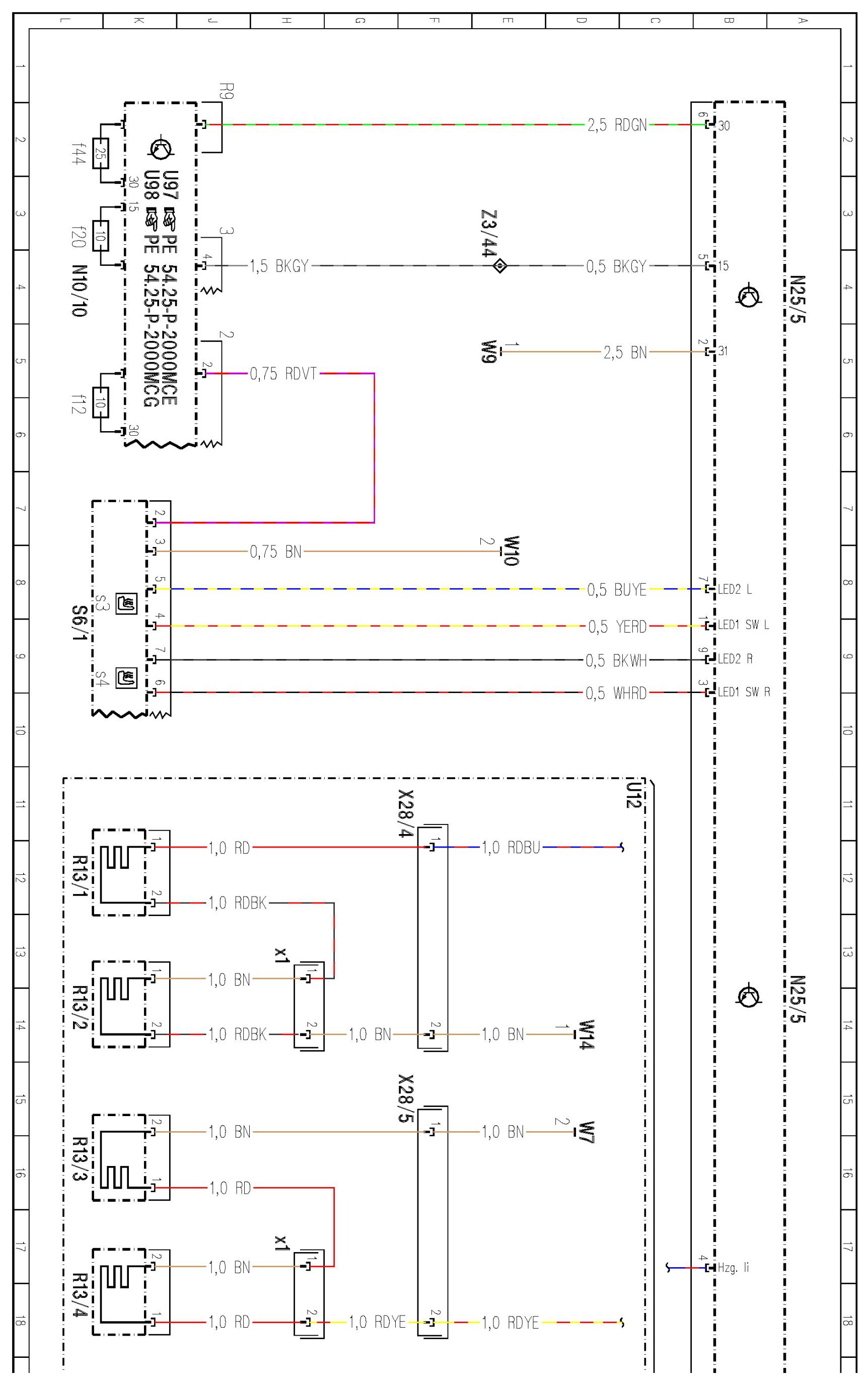

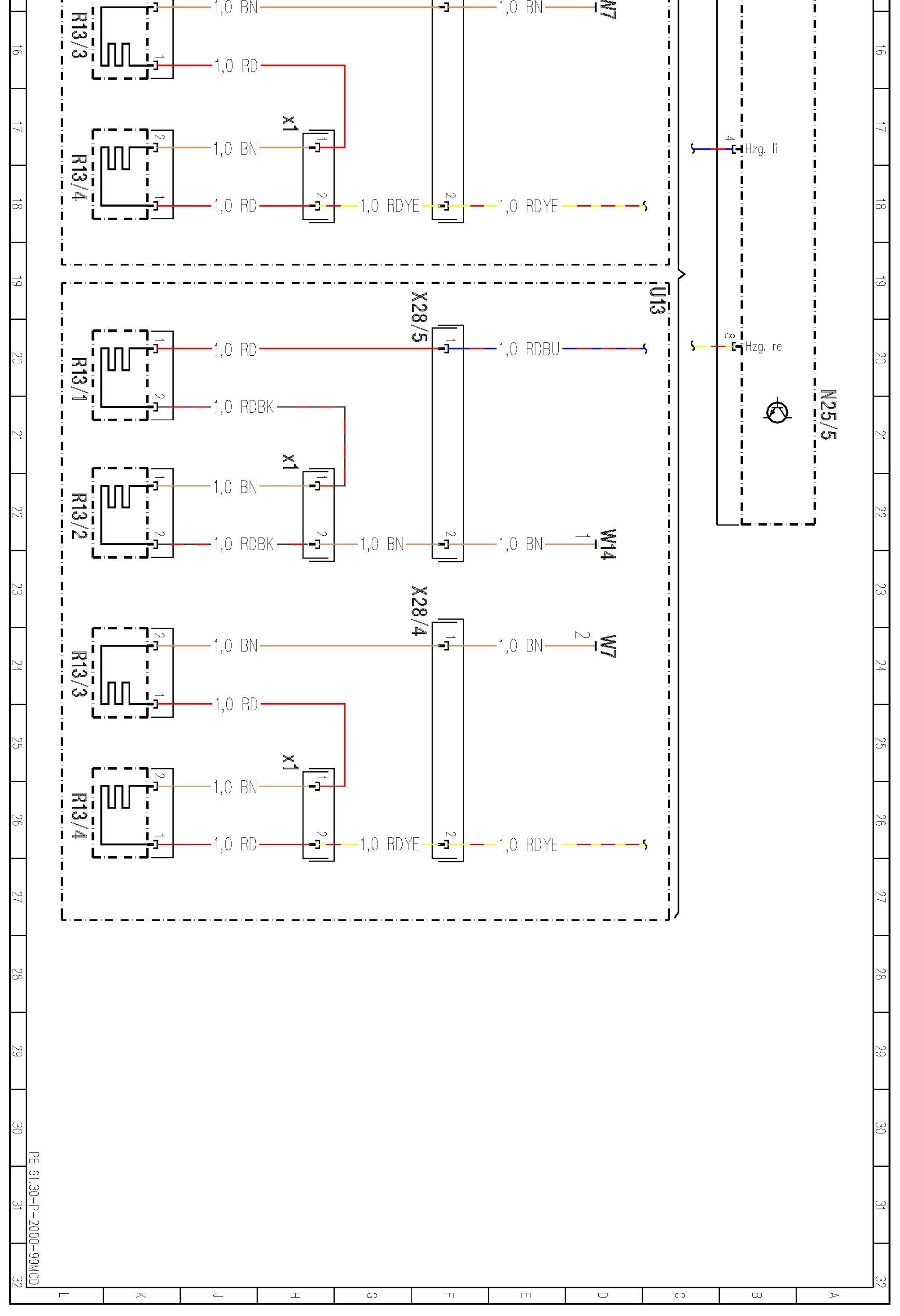

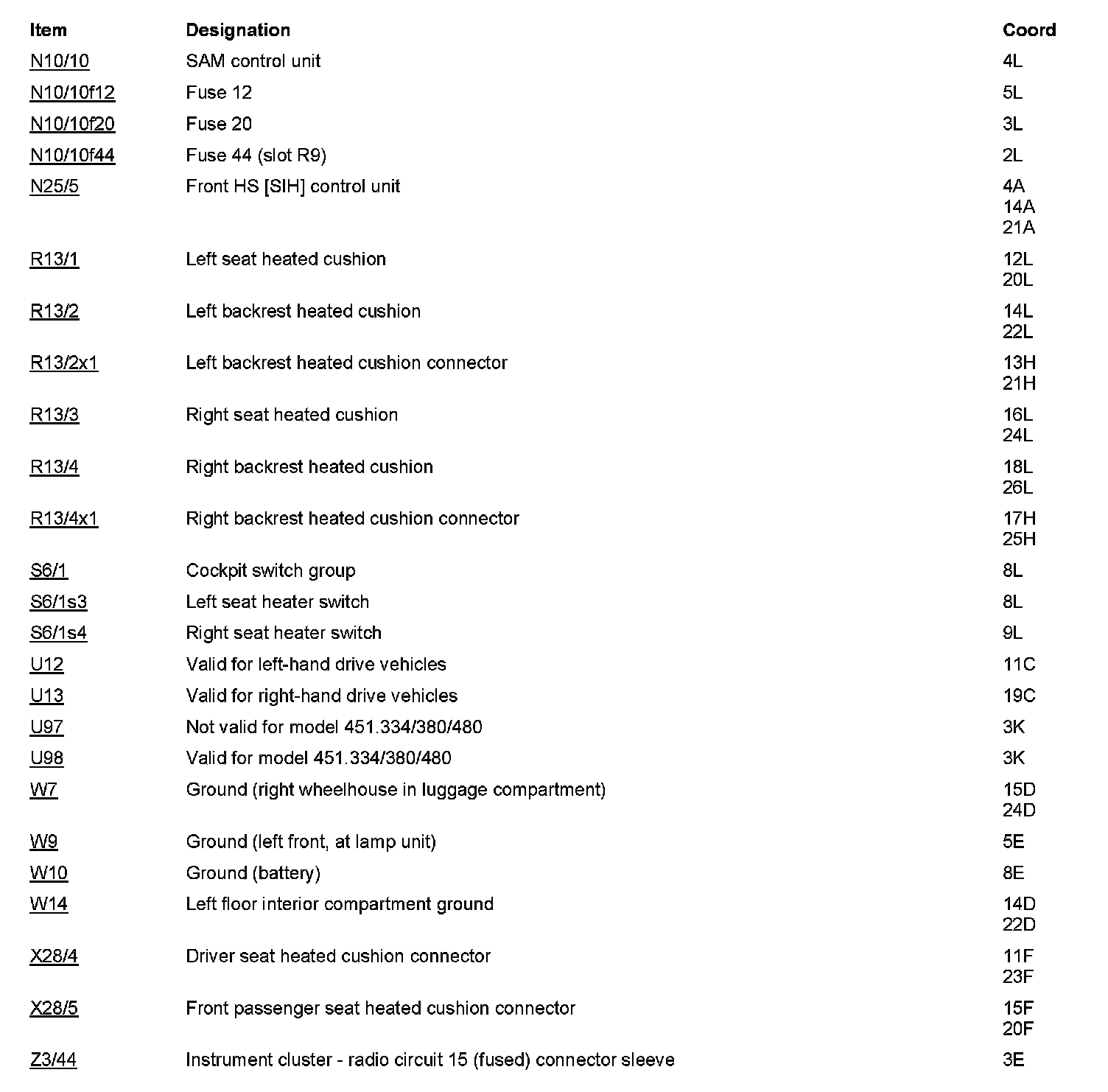

PE91.30-P-2000MCD Seat Heater (SIH)
PE91.30-P-2000MCD Seat Heater (SIH)
PE91.30-P-2000MCD Seat Heater (SIH)
451 91 Seats, SRS
MODEL 451 as of 013645 except 451.391 /491
